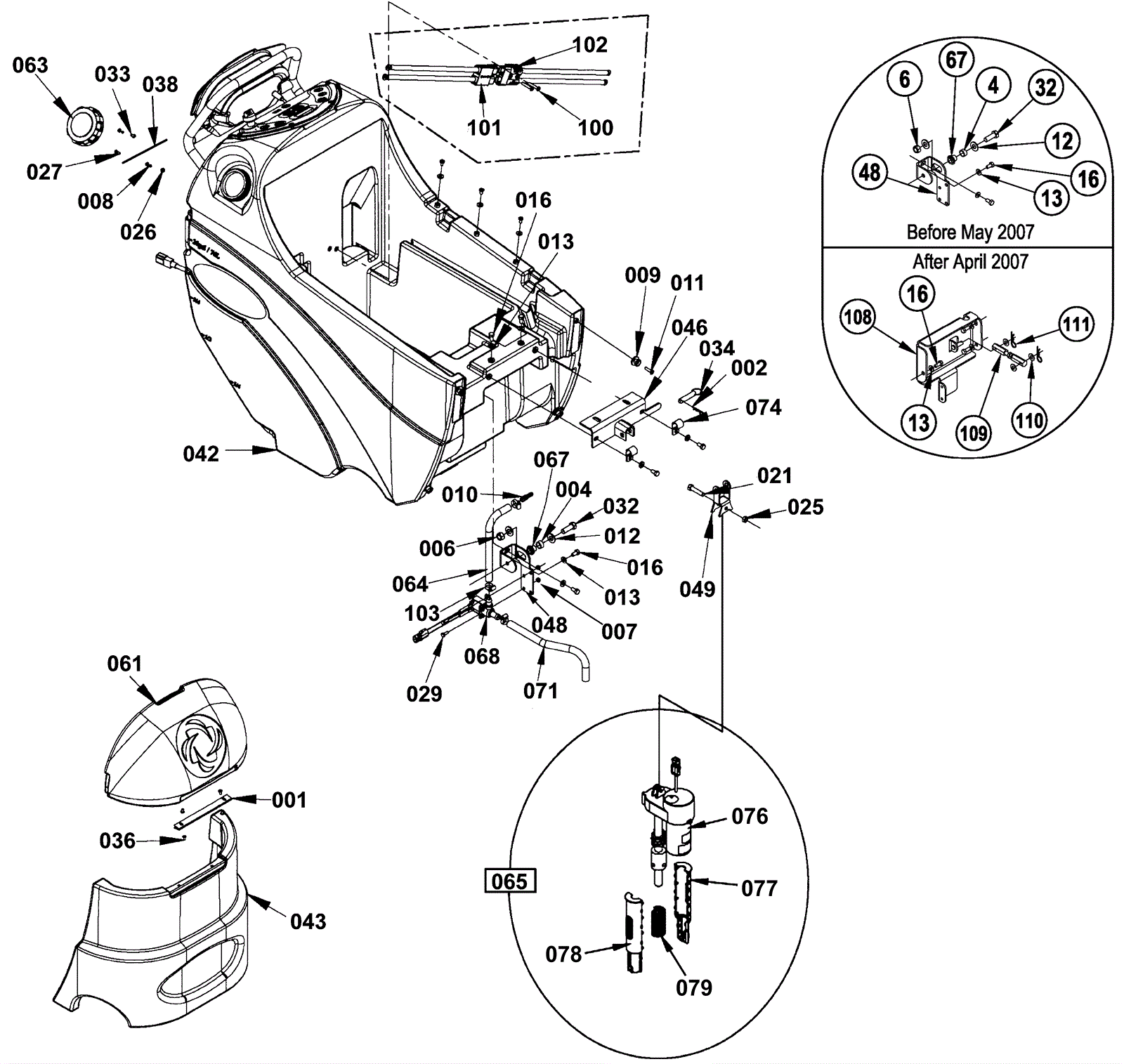

CONVERTAMATIC 32D-C Solution Assembly / Electrical 1

#PartDescriptionPriceReqNotesAvailability
001 272-2171 Hinge $15.07 1 usually ships 16-41 days
002 997-2509 Cotter pin 1/8 x 3/4 stainless steel $0.99 1 ships same day
004 N/A Not available Call for price 1 (Sleeved bearing) (please order 172-0069) usually ships 3-26 days
006 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 (before 05.2007) ships same day
007 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
008 N/A Not available Call for price 2 Chain coupler usually ships 3-26 days
009 172-0444 Drive lug $22.41 4 usually ships 16-41 days
010 272-2172 Reducer barb $11.99 1 usually ships 16-41 days
011 999-0348 Screw 1/4-20 x 1 flat head phillips zinc plated $0.99 4 ships same day
012 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
013 999-0024 Washer 5/16 flat stainless steel $1.34 6 (quantity of 5 after 04.2007) ships same day
016 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 6 (quantity of 7 after 04.2007) ships same day
021 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
025 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
026 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
027 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
029 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
032 999-1326 Screw M12-1.75 x 40mm hex head $2.59 1 (before 05.2007) ships same day
033 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 1 (before 01.2011) ships same day
034 272-2115 Clevis pin $9.87 1 usually ships 16-41 days
036 999-0477 Screw 10-24 x 5/16 truss head phillips zinc $1.54 4 ships same day
038 172-1084 Wire rope assembly $13.40 1 ships same day
042 272-2320 Solution tank $1,864.25 1 usually ships 16-41 days
043 272-2321 Nose cone $238.92 1 usually ships 16-41 days
046 272-2322 Actuator mounting weldment $64.64 1 usually ships 1-5 days
048 272-2323 Pivot weldment $31.57 1 usually ships 1-5 days
049 272-2202 Actuator yoke $30.28 1 usually ships 1-5 days
061 272-2324 Chemical bottle cover $186.96 1 usually ships 16-41 days
063 272-2180 Solution fill cap $7.47 1 usually ships 16-41 days
064 272-0070 Wire reinforced hose $12.83 1 usually ships 16-41 days
067 N/A Not available Call for price 1 (Bushing) (please order 172-0069) usually ships 3-26 days
068 172-1767 Solution valve assembly $231.75 1 usually ships 1-5 days
071 172-2327 Wire reinforced clear hose (OBSOLETE) $12.52 1 usually ships 16-41 days
074 172-8870 P clamp $10.56 2 usually ships 1-5 days
076 172-7998 Actuator $507.58 2 usually ships 16-41 days
077 272-6570 Spring housing $11.99 4 usually ships 16-41 days
078 272-6571 Spring housing $11.99 1 usually ships 16-41 days
079 172-8953 Compression spring $34.66 1 usually ships 16-41 days
100 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated $0.99 2 ships same day
101 172-2183 Connector assembly $238.92 1 (connected to batteries) (onboard only) usually ships 16-41 days
102 172-2182 Connector assembly $186.96 1 (connected to machine) (onboard only) usually ships 1-5 days
103 997-2002 Hose clamp #6 $2.15 3 ships same day
N/S 172-0003 Turnbuckle $64.23 1 (after 04.2007) usually ships 16-41 days
N/S 172-8941 Compression spring $28.46 1 usually ships 16-41 days
N/S 372-1138 Bracket weldment $98.13 1 (after 04.2007) usually ships 1-5 days
N/S 997-2511 Cotter pin $0.99 2 (after 04.2007) ships same day
N/S 999-0120 Washer 3/8 SAE flat $0.99 3 (after 04.2007) ships same day
