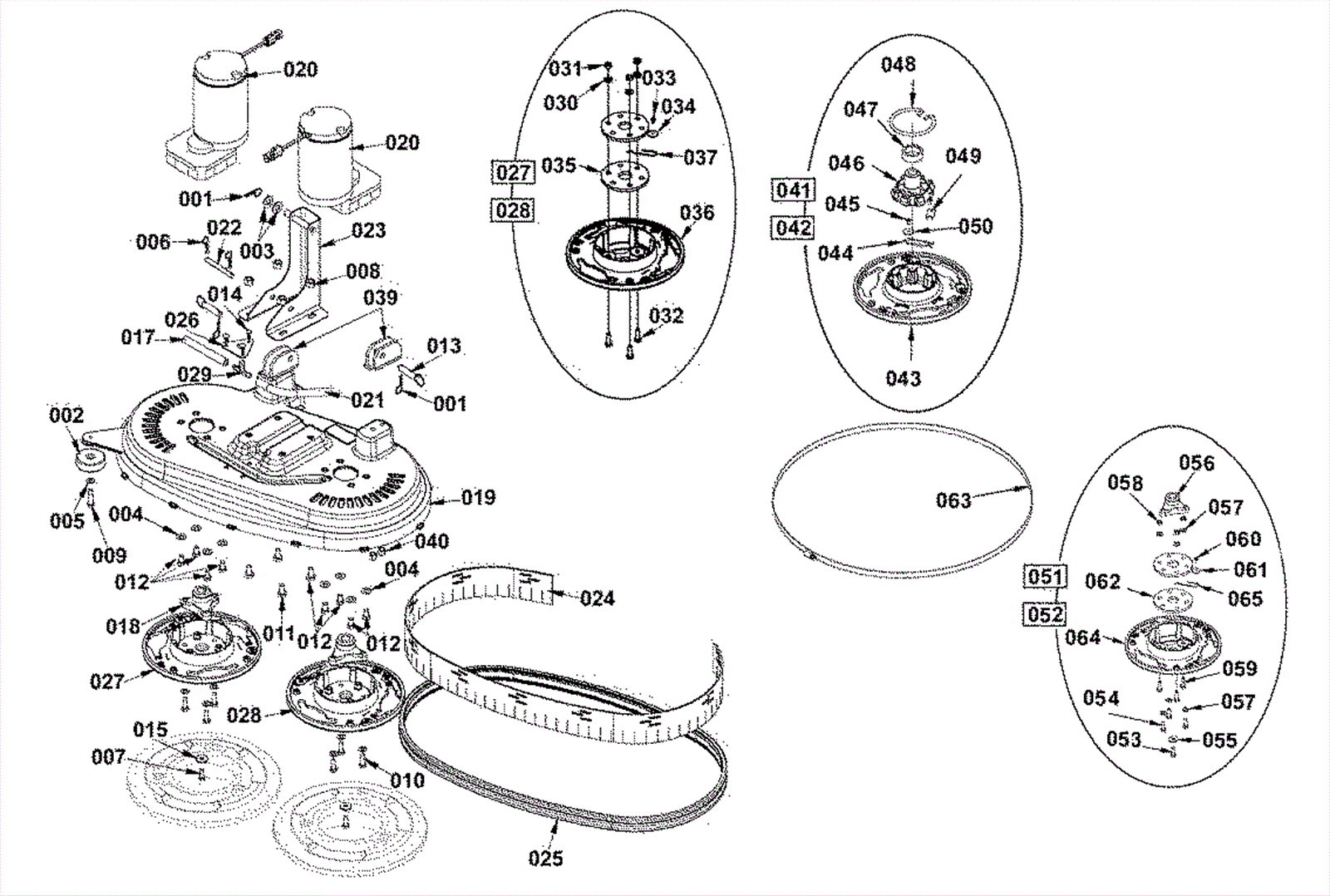

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
997-2509
|
Cotter pin 1/8 x 3/4 stainless steel |
3 |
(after 04.2007 quantity is 2) |
|
002a |
172-0045
|
Guide wheel |
1 |
(OEM) |
|
002b |
991-3051
|
Guide wheel |
1 |
(NON-OEM) |
|
003 |
999-0114
|
Washer 1/2 SAE flat |
2 |
(not needed after 04.2007) |
|
004 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
|
005 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
7 |
|
|
006 |
997-2511
|
Cotter pin |
2 |
|
|
007 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
|
008 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
4 |
|
|
009 |
999-1256
|
Screw 5/16-18 x 3/8 x 1 socket head shoulder |
1 |
|
|
010 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
011 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
4 |
|
|
012 |
272-2116
|
Bolt 3/8-24 x 5/8 hex head lock stainless steel |
8 |
|
|
013 |
272-2115
|
Clevis pin |
2 |
|
|
014 |
272-2117
|
Nylon tree push-in rivet |
3 |
|
|
015 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
017 |
172-9890
|
PVC hose |
1 |
|
|
018 |
172-2088
|
Drive hub (OBSOLETE) |
2 |
|
|
019a |
272-2746
|
24 inch scrub deck weldment (OBSOLETE) |
1 |
|
|
019b |
272-2753
|
24 inch scrub deck weldment kit |
1 |
|
|
019c |
272-2745
|
26 inch scrub deck weldment (OBSOLETE) |
1 |
|
|
019d |
272-2119
|
26 inch scrub deck weldment kit |
1 |
|
|
019e |
272-2744
|
Scrub deck disc 28 inch |
1 |
|
|
019h |
272-2746
|
24 inch scrub deck weldment (OBSOLETE) |
1 |
(019 has been redesigned. The old style castings are no longer available. If you have a machine built prior to this change (old deck style deck assembly DOES NOT include items 38 & 39) and need to replace one of these deck castings you need to order one of the kits.) |
|
020a |
272-2356
|
24V brush motor assembly |
2 |
|
|
020b |
272-2122
|
Carbon brush |
4 |
|
|
020c |
172-2054
|
Brush spring |
4 |
|
|
021 |
272-2123
|
3/4 inch PVC hose |
1 |
|
|
022 |
272-2124
|
Clevis pin |
1 |
|
|
023 |
272-2747
|
Deck actuator weldment 24/26 inch |
1 |
|
|
024a |
272-2126
|
26 inch fabric skirt |
1 |
(26 inch) (OEM) |
|
024b |
272-2127
|
24 inch rubber skirt |
1 |
|
|
024c |
991-5144
|
26 inch rubber skirt |
1 |
(26 inch) (NON-OEM) |
|
025a |
272-2130
|
Extruded bumper 24 inch with metal band (OBSOLETE) |
1 |
|
|
025b |
272-2129
|
Extruded bumper 26 inch with metal band |
1 |
|
|
025c |
272-9072
|
28 inch extruded bumper |
1 |
|
|
026 |
272-2131
|
Bracket |
1 |
|
|
027 |
272-1382
|
Counterclockwise brush plate assembly |
1 |
(includes 30-37) |
|
028 |
272-1383
|
Clockwise brush plate assembly |
1 |
(includes 30-37) |
|
029 |
272-1384
|
Tee barb |
1 |
|
|
030 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
031 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
|
032 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
3 |
|
|
033 |
999-0409
|
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
|
034 |
999-0588
|
Washer 7/8 flat stainless steel |
1 |
|
|
035 |
172-2070
|
Thermoid disk |
2 |
|
|
036 |
172-2089
|
Drive plate |
1 |
|
|
037 |
172-2087
|
Spring retainer |
1 |
|
|
039 |
N/A
|
Not available |
1 |
(Deck mount weldment) (replaces L and R brackets) |
|
040 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
|
041 |
272-1382
|
Counterclockwise brush plate assembly |
1 |
(includes 43-50) |
|
042 |
272-1383
|
Clockwise brush plate assembly |
1 |
(includes 43-50) |
|
043 |
272-9885
|
Brush plate |
1 |
|
|
044 |
272-9883
|
Retainer spring |
1 |
|
|
045 |
999-1833
|
Screw 10-14 x 3/8 pan head phillips stainless steel |
3 |
|
|
046 |
272-7257
|
6 tab gimbal and collar assembly |
1 |
|
|
047 |
170-0233
|
Brush driver collar - See pop-up (OBSOLETE) |
1 |
|
|
048 |
272-9884
|
Brush holder spring |
1 |
|
|
049 |
172-0155
|
Stop plate |
1 |
|
|
050 |
172-0553
|
Washer 17/64 x 1/16 flat |
1 |
(Counterclockwise lug) (includes 53-65) (parts only sold individually) |
|
051 |
272-1382
|
Counterclockwise brush plate assembly |
1 |
(Clockwise lug) (includes 53-62, 64-65) (parts only sold individually) |
|
052 |
272-1383
|
Clockwise brush plate assembly |
1 |
(includes 53-62, 64-65) |
|
053 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
|
054 |
272-5780
|
Screw M8-1 x 25mm hex head lock SS |
6 |
|
|
055 |
372-1137
|
Washer |
2 |
|
|
056 |
172-2088
|
Drive hub (OBSOLETE) |
2 |
|
|
057 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
6 |
|
|
058 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
|
059 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
3 |
|
|
060 |
999-1152
|
Screw 10-24 x 3/8 pan head phillips thread rolling zinc |
1 |
|
|
061 |
999-0588
|
Washer 7/8 flat stainless steel |
1 |
|
|
062 |
172-2070
|
Thermoid disk |
2 |
|
|
063 |
272-3523
|
Adjustable band clamp |
1 |
|
|
063b |
991-5176
|
Skirt clamp |
1 |
(NON-OEM) |
|
064 |
172-2089
|
Drive plate |
1 |
|
|
065 |
172-2087
|
Spring retainer |
1 |
|
|
N/S |
272-8454
|
Adjustable band clamp |
1 |
32 inch |
|
N/S |
991-5176
|
Skirt clamp |
1 |
(NON-OEM) |
|
N/S |
272-8605
|
Adjustable band clamp |
1 |
28 inch |
|
N/S |
272-3523
|
Adjustable band clamp |
1 |
24 and 26 inch |
|
