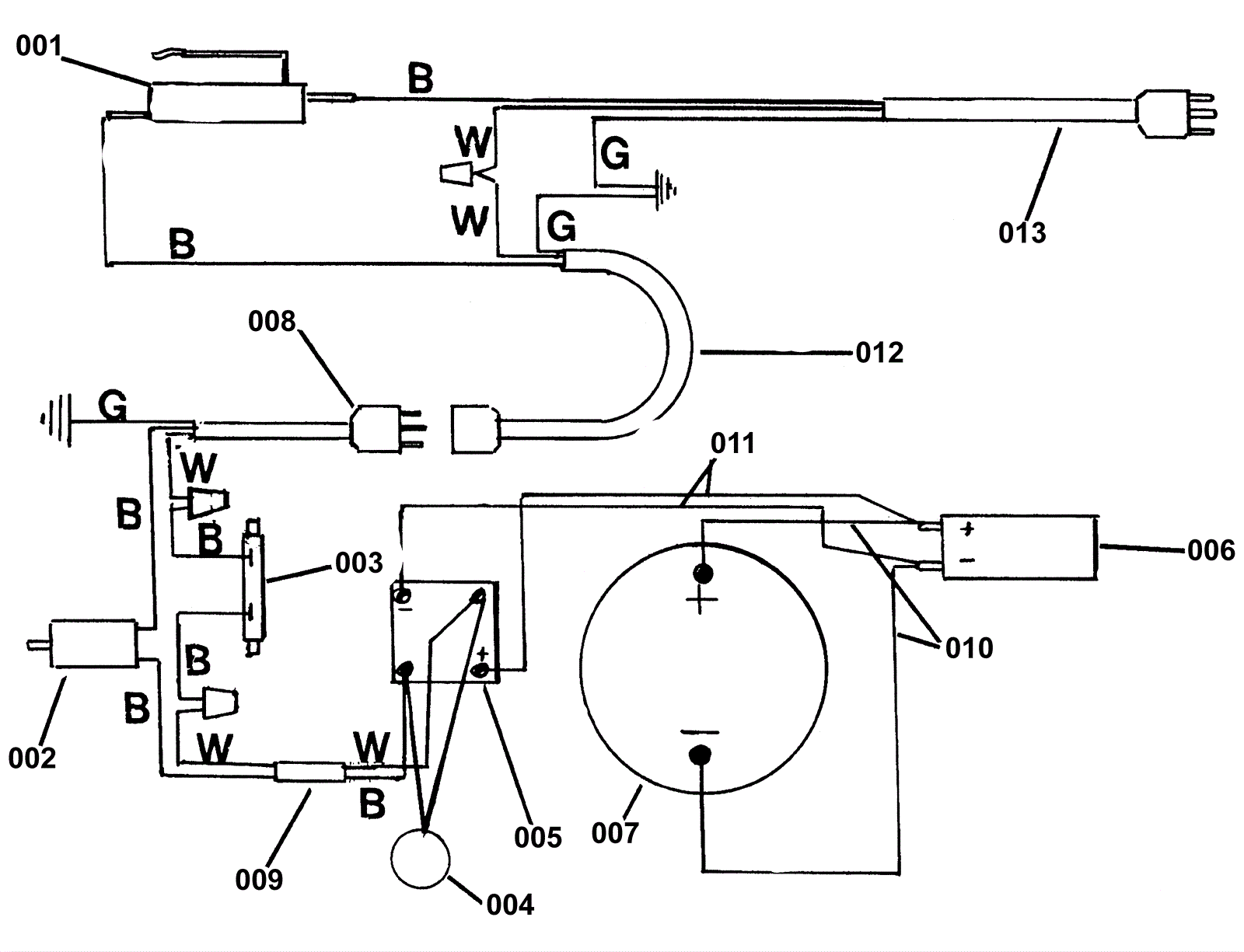

MATADOR 20HS Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 172-0270 Snap switch $43.00 1 usually ships 5-10 days
002 N/A Not available Call for price 1 Circuit breaker 115 volt 16amp usually ships 3-26 days
005 172-4139 35amp rectifier $12.18 1 usually ships 16-41 days
006 172-1758 Capacitor $129.36 1 usually ships 16-41 days
007 N/A Not available Call for price 1 Motor 1 1/2 horse power 115 volt usually ships 3-26 days
008 172-4554 Cord set $27.53 1 usually ships 1-5 days
009 N/A Not available Call for price 1 Cord assembly 14/3 x 19 usually ships 3-26 days
010 N/A Not available Call for price 1 Wire assembly 14/3 x 15 usually ships 3-26 days
011 N/A Not available Call for price 2 Wire assembly 14/3 x 4 usually ships 3-26 days
013 172-4533 14/3 power cord 50 foot $212.66 1 usually ships 16-41 days
