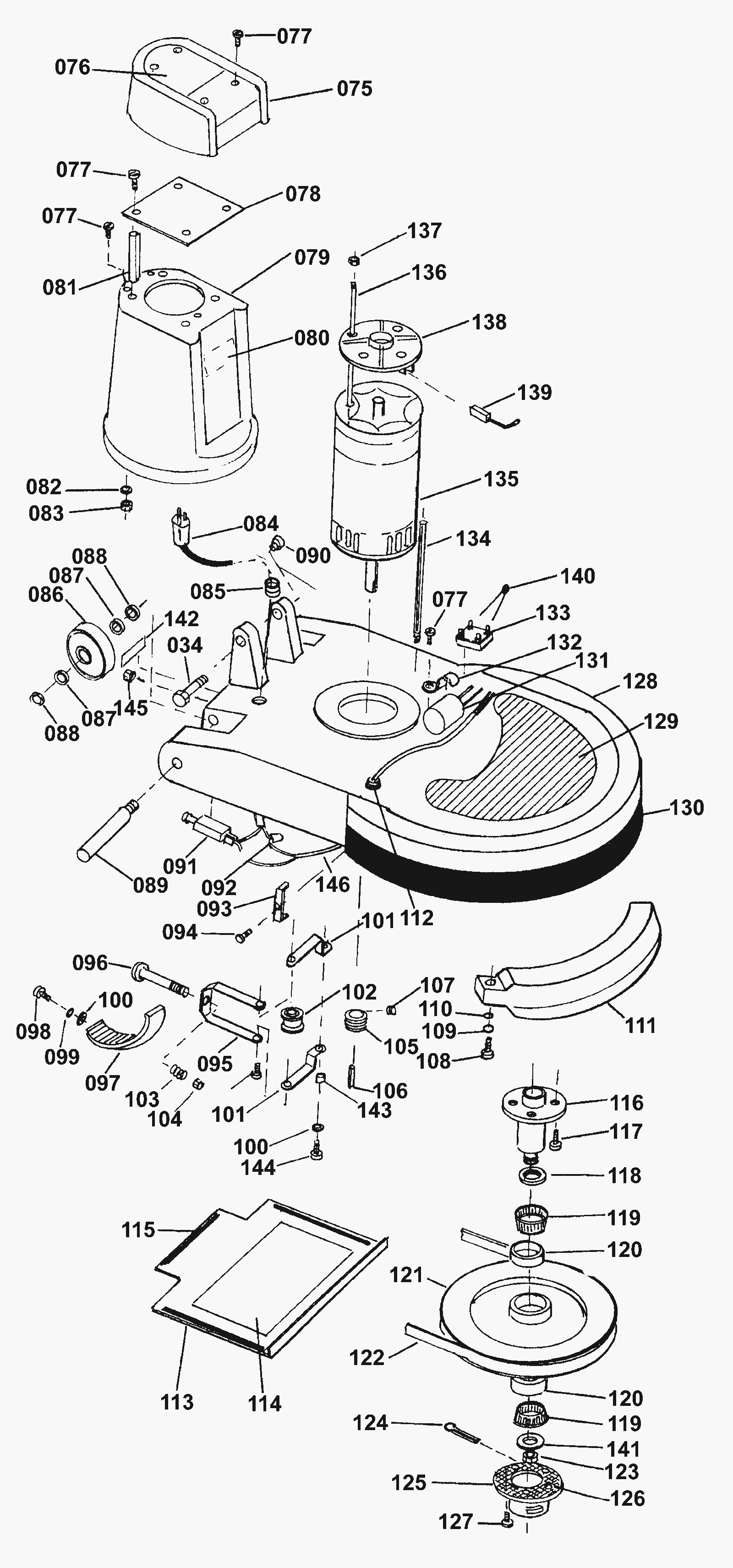

Base Assembly

#PartDescription ReqNotesAvailability
075 N/A Not available 1 Motor cover assembly
076 N/A Not available 1 Matador decal
077 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 12
078 172-3577 Bracket (OBSOLETE) 1
079a N/A Not available 1 Shroud assembly with 17 inch decal
079b N/A Not available 1 Shroud assembly with 20 inch decal
080 N/A Not available 1 Advance decal
081 172-3575 Spacer (OBSOLETE) 4
082 999-0006 Washer 3/16 flat zinc plated 2
083 999-0062 Nut 10-24 hex 2
084 172-4554 Cord set 1
085 N/A Not available 1 (Strain relief)
086 172-4549 5 inch wheel (OBSOLETE) 2
087 172-4548 Washer 33/64 x 15/16 x 1/16 flat 4
088 172-4550 Washer 33/64 x 1/64 bowed 2
090 172-4037 Flanged bearing (OBSOLETE) 2
091 N/A Not available 1 Circuit breaker 16 amp, 115 volt
092 172-4513 Wire connector 1
093 172-4552 Clamp 2
094 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel 2
095 172-4555 Bracket 1
096 N/A Not available 1 Screw 1/4 x 20 x 3 flat head
097 172-4553 Ratchet casting 1
098 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 3
099 999-0060 Washer 1/4 split lock plain finish 2
100 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
101 172-3590 Idler bracket 2
102 172-4556 Idler assembly (OBSOLETE) 1
103 172-0150 Spring 1
104 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
105a 172-4559 Sheave Poly-V 230V 1
105b 172-4558 Poly-v sheave (OBSOLETE) 1
106 172-4579 Square keyway 1
107 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
108 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 3
109 999-0553 Washer 5/16 medium split lock stainless steel 3
110 999-0024 Washer 5/16 flat stainless steel 3
111a 172-3587 Weight casting 17 (OBSOLETE) 1
111b 172-3588 Weight casting fin (OBSOLETE) 1
112 N/A Not available 1 Grommet
113a 172-4564 17 inch cover 1
113b 172-4565 20 inch cover (OBSOLETE) 1
114 172-3589 Instruction decal (OBSOLETE) 1
115 172-4593 Gasket 1/8 x 38 (OBSOLETE) 1
116 172-4573 Stud shaft 1
117 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated 4
118 172-4572 Seal shaft 1
119 172-4570 Bearing 2
120 172-4571 Bearing cup 2
121 172-4598 Pulley assembly 1
122 172-4563 Poly-v belt (OBSOLETE) 1
123 999-0425 Nut 9/16-12 hex slotted plain finish 1
124 N/A Not available 1 Cotter pin 1/16 x 1
125 172-4566 Drive cap (silver) (OBSOLETE) 1
126 172-4567 Gasket (OBSOLETE) 1
127 999-0420 Screw 12-24 x 5/8 flat head slotted zinc plated 6
128a N/A Not available 1 17 Inch skirt assembly
128b 172-8326 Skirt housing (OBSOLETE) 1
129 N/A Not available 1 Insert decal
130a N/A Not available 1 17 Inch bumper
130b 172-4575 20 inch bumper (OBSOLETE) 1
131 172-1758 Capacitor 1
132 172-3581 Capacitor clamp 1
133 172-4139 35amp rectifier 1
134 172-3578 Spacer 4
135 172-3595 115V 1.5HP brush motor 1
138 172-3598 End bell assembly (OBSOLETE) 1
139 172-3596 Carbon brush (pkg of 2) (OBSOLETE) 1
141 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened 1
142 172-3592 Circuit breaker decal (OBSOLETE) 1
143 172-0016 Bushing 1
144 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 3
145 172-3593 Nut 3/8-27 hex 1
