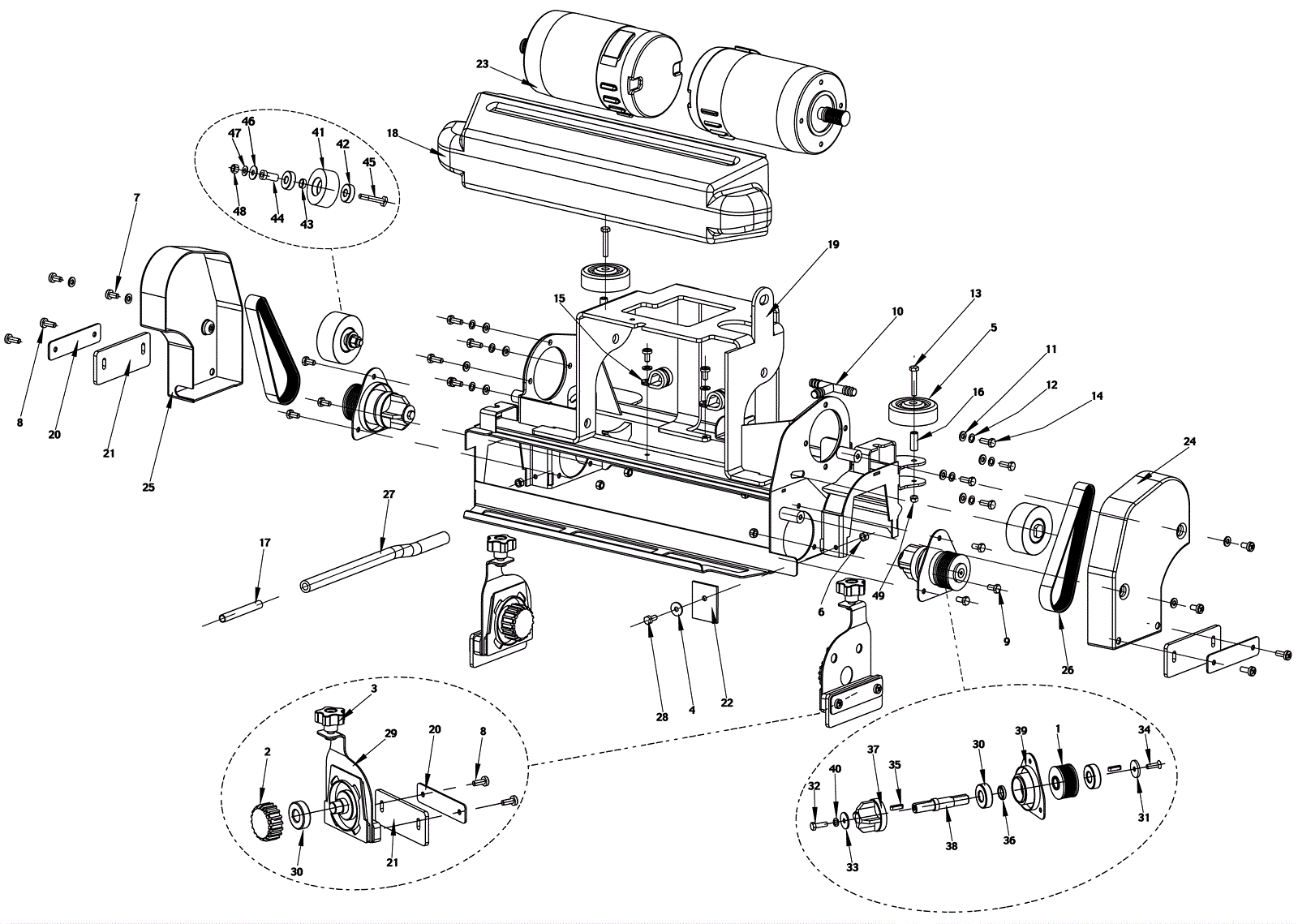

Scrub Deck Assembly

#PartDescription ReqNotesAvailability
1 172-4840 Pulley (OBSOLETE) 2
2 172-1838 Hub 2
3 572-3784 KNOB M8 PKD 2
4 N/A Not available 2 (Washer M7 thick rubber)
5 172-0274 Guide wheel 2
6 999-0497 Nut M6-1 nylon insert lock stainless steel 8
7 172-3722 Screw M6x12 6
8 999-1257 Screw M6-1 x 16mm pan head Phillips 8
9 999-9116 Screw M6-1 x 12mm hex head stainless steel 6
10 272-0787 Pipe holder 1
11 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 14
12 999-0051 Washer #6 medium split lock 8
13 272-0783 Screw m6 x 40 hex head stainless steel (OBSOLETE) 2
14 172-4823 Screw M6 x 16mm hex head 8
15 272-0763 Clamp 2
16 272-0788 Spacer 2
17 272-0807 Copper hose 1
18 172-4824 Dirt container 1
19 272-3728 Cylindrical scrub deck frame (OBSOLETE) 1
20 172-4839 Splash guard kit 4
21 272-3729 Splash guard (OBSOLETE) 4
22 272-3730 Splash guard 2
23 N/A Not available 2 (24V motor )
24 172-4826 Right belt protection crankcase 1
25 172-4827 Left belt protection crankcase 1
26 172-4828 Belt 2
27 172-4829 Hose 1
28 999-0978 Bolt M6-1 x 14mm hex head stainless steel 2
29 172-4833 Brush support (OBSOLETE) 2
30 272-0813 Ball bearing 6
31 272-0778 Spacer 6 1/2 x 25 x 2 1/2 2
32 272-0780 Screw M6 x 20 hex head stainless steel (set of 10) 2
33 272-0781 Washer 6 x 24 flat stainless steel (OBSOLETE) 2
34 172-4835 Screw M6 x 20mm 2
35 181-0942 Square keyway 4
36 272-0765 Spacer 2
37 272-0793 Brush hub 2
38 272-0798 Pin brush pulley 2
39 172-4834 Brush pulley support (OBSOLETE) 2
40 999-0051 Washer #6 medium split lock 2
41 272-0836 Ball tension roller 2
42 572-3785 BEARING BALL 6201 PKD 4
43 272-0838 Spacer 2
44 272-0839 Bushing 2
45 272-0840 Pin 2
46 999-1267 Washer M8 flat zinc 2
47 999-1267 Washer M8 flat zinc 2
49 999-0497 Nut M6-1 nylon insert lock stainless steel 2
