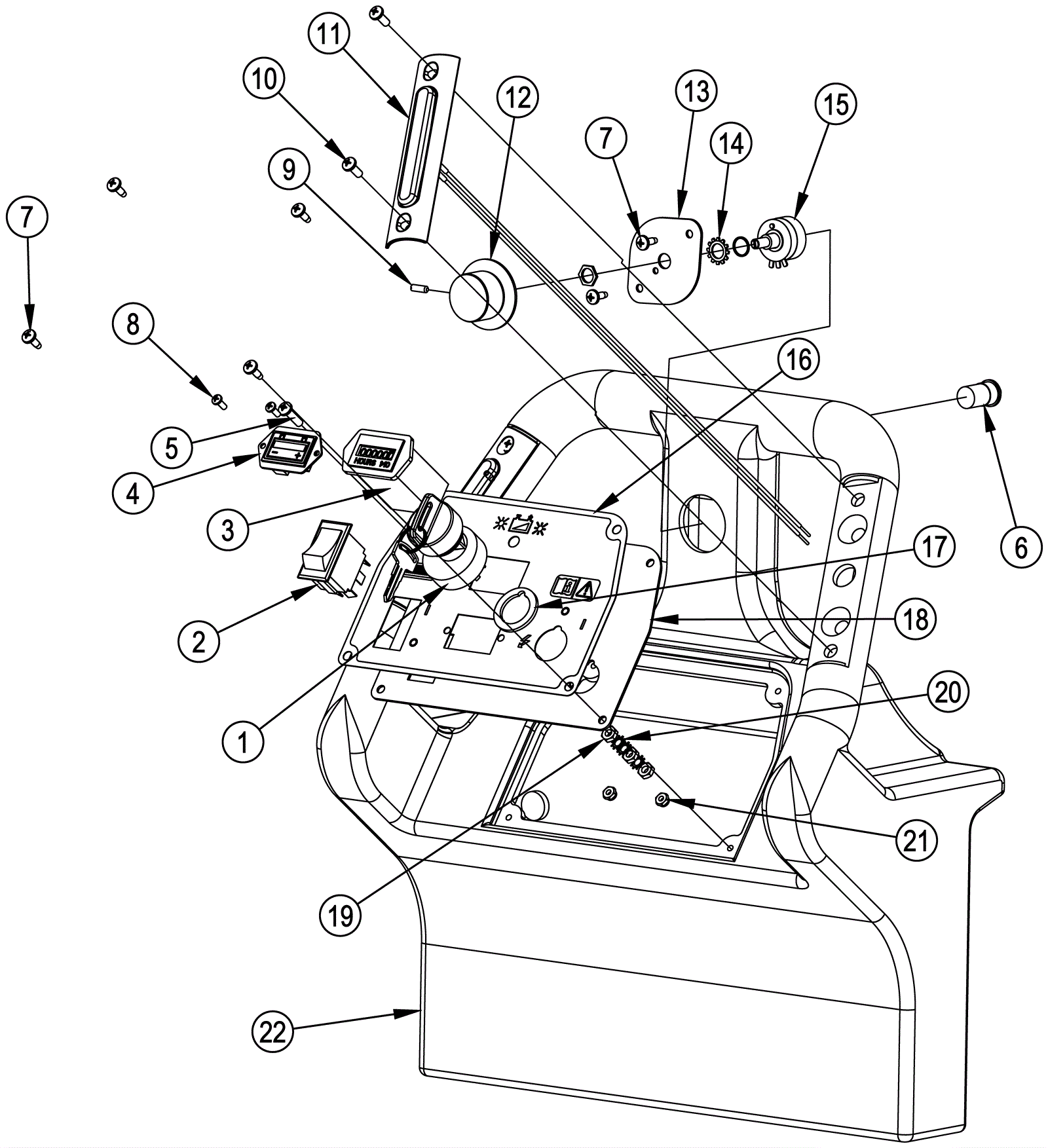

Handle Assembly

#PartDescription ReqNotesAvailability
1 170-9026 Key switch 1
2 170-0058 Rocker switch 2 position 6 prong 1
3a 170-0052 Hour meter 1 (OEM)
3b 991-7137 Hour meter 1 (NON-OEM)
4 270-0637 Tru-charge meter 1
5 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 1
6 170-7409 Push button reverse switch 1
7 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 6
8 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 2
9 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc 1
10 999-0851 Screw 10-32 x 1/2 round head slotted nylon 4
11 272-8479 Handle switch assembly 2
12 170-1876 Traverse control knob 1
13 272-8587 5K potentiometer retainer 1
14 999-0201 Washer 3/8 internal star lock 1
15 272-3511 Potentiometer harness assembly 1
16 272-8588 Control panel decal 1
17 272-8524 Key switch spacer 1
18 272-8589 Control panel 1
19 999-0460 Nut 10-32 hex 3
20 999-0311 Washer #10 external star lock zinc plated 4
21 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
22 272-8480 Handle 1
