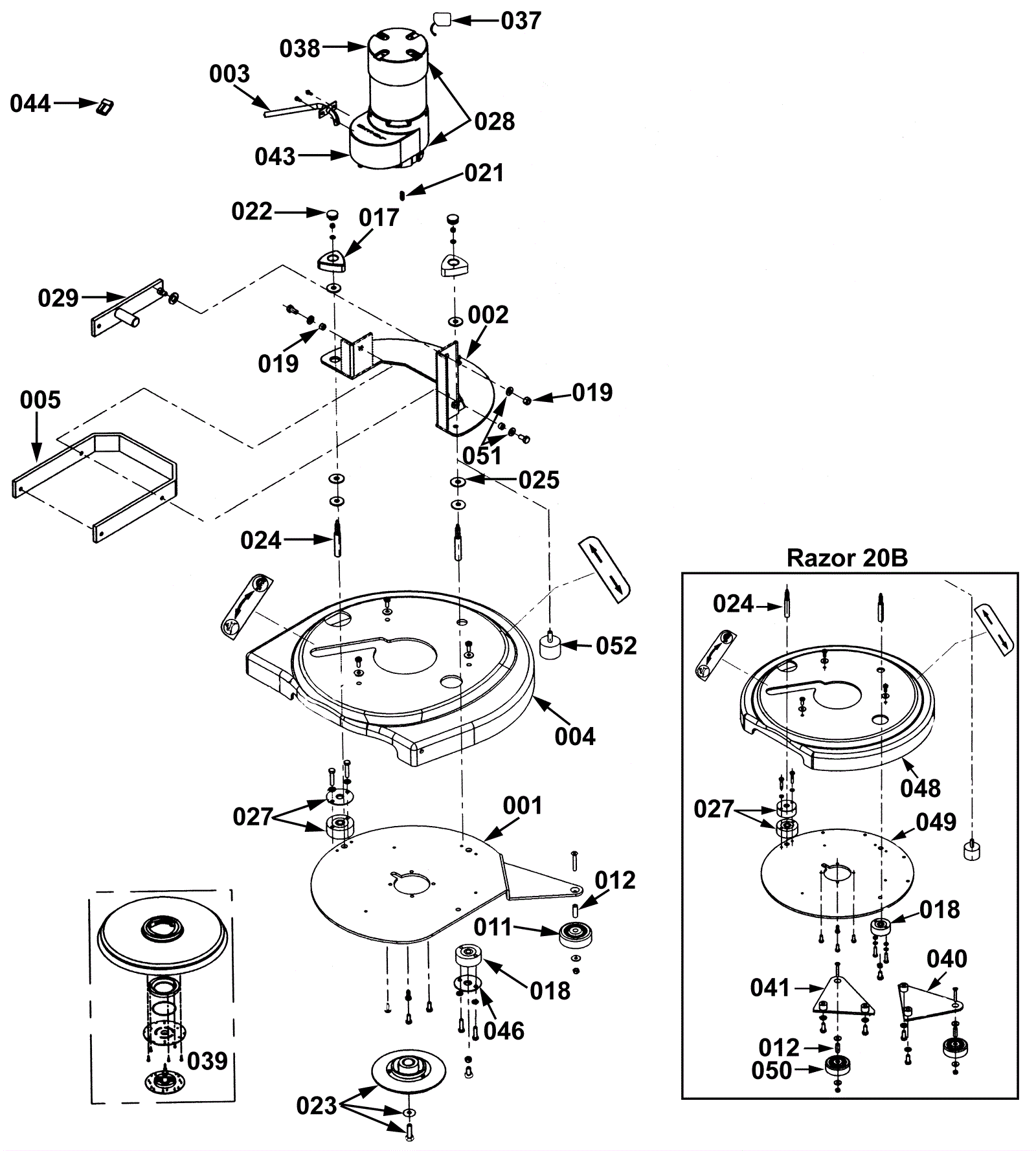

RAZOR20BT Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
001a 272-7126 Brush holder plate (OBSOLETE) $152.97 1 usually ships 1-5 days
001b 172-7605 Brush holder plate (OBSOLETE) $114.40 1 (Micromax 17B) usually ships 16-41 days
002a 272-7127 Brush support plate (OBSOLETE) $92.51 1 Micromax 20B, 20DD and Razor 20BT usually ships 1-5 days
002b N/A Not available Call for price 1 Razor 20B (Brush support plate) usually ships 3-26 days
002c 172-7604 Plate (OBSOLETE) $82.50 1 (Micromax 17B) usually ships 1-5 days
003 172-5083 Copper hose $110.44 1 usually ships 16-41 days
004a 272-7128 Brush guard (OBSOLETE) $126.28 1 Micromax 20B and 20DD usually ships 1-5 days
004b 181-0940 Brush cover (OBSOLETE) $125.40 1 (Micromax 17B) usually ships 16-41 days
005 172-7606 Brush lifting frame (OBSOLETE) $40.70 1 usually ships 16-41 days
011 172-0274 Guide wheel $16.07 2 Micromax 17B, 20B and 20DD usually ships 16-41 days
012 172-0095 Bushing $35.37 2 usually ships 16-41 days
017 272-1931 Knob $11.99 2 ships same day
018 272-7135 Buffer $25.36 1 usually ships 16-41 days
019a 272-7136 Bushing $11.99 2 Micromax 20B and 20DD usually ships 1-5 days
019b 272-7136 Bushing $11.99 2 Razor 20B and 20BT usually ships 1-5 days
021 181-0942 Square keyway $48.32 1 usually ships 16-41 days
022 272-8031 Plug $11.99 2 usually ships 16-41 days
023 172-4845 Polygonal holder with flange kit $115.52 1 includes 6 parts (not interchangeable with 181-1755) ships same day
024 272-1934 Adjustment screw $25.36 2 usually ships 16-41 days
025 272-1933 Rubber gasket (OBSOLETE) $8.80 2 usually ships 16-41 days
027 272-1940 Isolator kit $72.26 2 ships same day
028 272-2571 Brush gear motor assembly $2,618.28 1 usually ships 16-41 days
029a 272-7129 Brush lifting lever (OBSOLETE) $44.55 1 Micromax 17B, 20B and 20DD usually ships 1-5 days
029b 172-5084 Brush lifting lever (OBSOLETE) $46.20 1 Razor 20B and 20BT usually ships 1-5 days
037 181-0944 Carbon brush set $238.92 1 Razor 20B and 20BT usually ships 16-41 days
038 272-5505 24V brush motor $1,565.99 1 usually ships 16-41 days
039 996-0666 Pad driver assembly $298.24 1 ships same day
040 172-5089 Right bumper roll support (OBSOLETE) $44.00 1 usually ships 1-5 days
041 172-5090 Left bumper roll support (OBSOLETE) $34.45 1 usually ships 1-5 days
043 272-5493 Reduction gear $1,133.51 1 usually ships 16-41 days
044 991-2102 50amp charger plug SB50 only (red) $13.95 1 ships same day
046 272-1939 Vibration damping plate $13.40 2 usually ships 16-41 days
049 N/A Not available Call for price 1 Razor 20B (Brush holder plate) usually ships 3-26 days
050 272-7123 Bumper roller $15.68 2 Razor 20B and 20BT usually ships 16-41 days
051 999-0412 Washer #8 SAE flat $0.99 4 ships same day
052 272-1919 Vibration damping M8 (set of 2) $48.32 1 ships same day
N/S 181-0946 Brush system hardware kit (OBSOLETE) $183.65 1 usually ships 16-41 days
N/S 272-7132 Splash guard (OBSOLETE) $91.19 1 usually ships 1-5 days
N/S 272-7133 Rivet $11.99 5 usually ships 1-5 days
N/S 272-7134 Disck scrub deck kit (OBSOLETE) $1,964.95 1 usually ships 1-5 days
