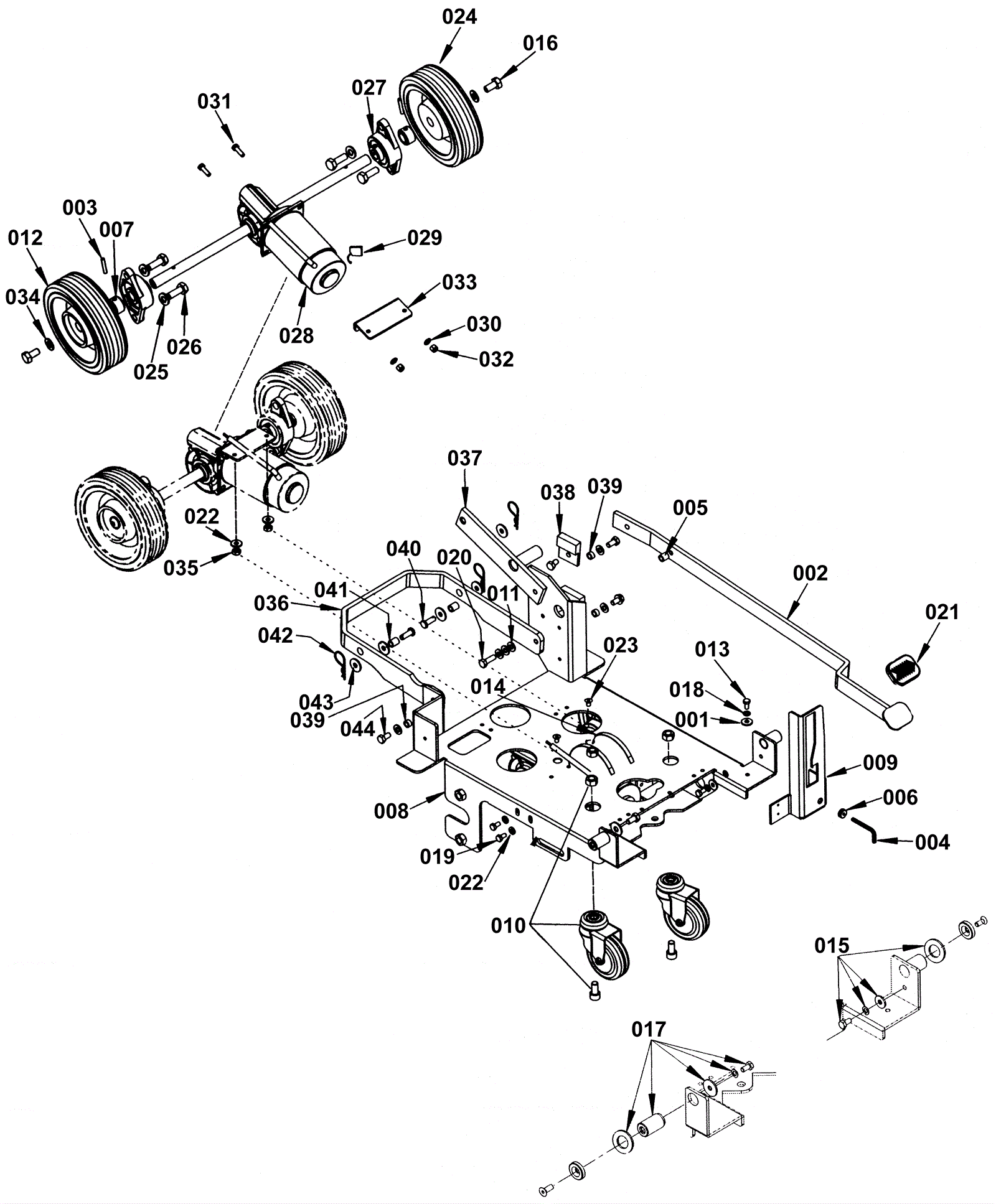

MICROMAX 20DD Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 2 (Washer M7 thick rubber) usually ships 3-26 days
002a 272-7072 Brush lifting pedal (OBSOLETE) $51.50 1 Micromax 20DD and 20DC usually ships 1-5 days
002b N/A Not available Call for price 1 Razor 20BT (Brush lifting pedal) usually ships 3-26 days
003 272-7073 Pin $9.37 2 usually ships 1-5 days
004a 272-8091 Allen wrench $9.56 1 Micromax 20DD and 20DC usually ships 1-5 days
004b 272-8091 Allen wrench $9.56 1 Razor 20BT usually ships 1-5 days
005a 272-8092 Spacer $12.18 1 Micromax 20DD and 20DC usually ships 1-5 days
005b 272-8092 Spacer $12.18 2 Razor 20BT usually ships 1-5 days
006a 272-8093 Cable guide $8.00 1 Micromax 20DD and 20DC usually ships 1-5 days
006b 272-8093 Cable guide $8.00 1 Razor 20BT usually ships 1-5 days
007 272-7074 Bush $30.00 2 usually ships 16-41 days
008 272-7075 Chassis (OBSOLETE) $293.76 1 usually ships 1-5 days
009 172-5081 Guide (OBSOLETE) $40.00 1 usually ships 16-41 days
010 181-0900 Rear wheel caster kit (OBSOLETE) $149.70 1 usually ships 16-41 days
011 999-1267 Washer M8 flat zinc $0.99 3 ships same day
012 272-7076 Wheel $244.24 1 usually ships 16-41 days
013 272-1923 Screw M6-1 x 12mm hex head $9.37 2 usually ships 1-5 days
014 272-7094 Wire tie (OBSOLETE) $7.20 2 usually ships 1-5 days
015 181-0900 Rear wheel caster kit (OBSOLETE) $149.70 1 usually ships 16-41 days
016 272-7077 Screw M10 x 20mm $8.30 2 usually ships 1-5 days
017 181-0911 Left tank support kit (OBSOLETE) $16.52 1 usually ships 1-5 days
018 999-0051 Washer #6 medium split lock $0.99 2 ships same day
019 172-4823 Screw M6 x 16mm hex head $16.27 2 usually ships 16-41 days
020 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
021 181-0917 Pedal cover $15.00 1 usually ships 16-41 days
022 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) $6.90 2 usually ships 1-5 days
023a 999-0773 Screw M6-1 x 16mm flat socket head stainless steel $0.99 2 Micromax 20DD and 20DC ships same day
023b 272-7096 Screw M61 x 10 (OBSOLETE) $6.90 2 Razor 20BT usually ships 1-5 days
024 272-7079 Right front wheel $271.13 1 usually ships 16-41 days
025a 999-1262 Washer M10 flat $1.47 4 Micromax 20DD and 20DC ships same day
025b 999-1262 Washer M10 flat $1.47 6 Razor 20BT ships same day
026 999-0022 Bolt M10-1.5 x 30mm hex head full thread $0.99 4 ships same day
027 272-7082 Flange $63.92 2 usually ships 16-41 days
028a 272-7083 Reduction gear motor $963.50 1 Micromax 20DD and 20DC usually ships 1-5 days
028b 272-7097 Reduction gear motor kit (OBSOLETE) $702.50 1 Razor 20BT usually ships 1-5 days
029 272-7084 Carbon brush (each) $72.23 2 usually ships 1-5 days
030 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) $6.90 2 usually ships 1-5 days
031 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
032a 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 Micromax 20DD and 20DC ships same day
032b 172-3667 Nut M6 self locking (OBSOLETE) $7.50 1 Razor 20BT usually ships 1-5 days
033 272-7085 Bracket (OBSOLETE) $14.40 1 usually ships 1-5 days
034 999-1262 Washer M10 flat $1.47 2 ships same day
035 999-0950 Nut M6-1 hex aluminum $1.32 2 Micromax 20DD and 20DC ships same day
036 272-7087 Brush lifting frame (OBSOLETE) $75.60 1 Micromax 20DD and 20DC usually ships 1-5 days
037 272-7088 Brush lifting lever (OBSOLETE) $58.32 1 Micromax 20DD and 20DC usually ships 1-5 days
038 272-7089 Block (OBSOLETE) $32.94 1 Micromax 20DD and 20DC usually ships 1-5 days
039 272-7136 Bushing $10.90 2 Micromax 20DD and 20DC usually ships 1-5 days
040 272-7090 Pin (OBSOLETE) $6.64 1 Micromax 20DD and 20DC usually ships 1-5 days
041 272-7091 Spacer (OBSOLETE) $7.36 2 Micromax 20DD and 20DC usually ships 1-5 days
042 272-7092 Cotter pin $11.66 4 Micromax 20DD and 20DC usually ships 1-5 days
043 999-1267 Washer M8 flat zinc $0.99 5 Micromax 20DD and 20DC ships same day
044 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 Micromax 20DD and 20DC ships same day
