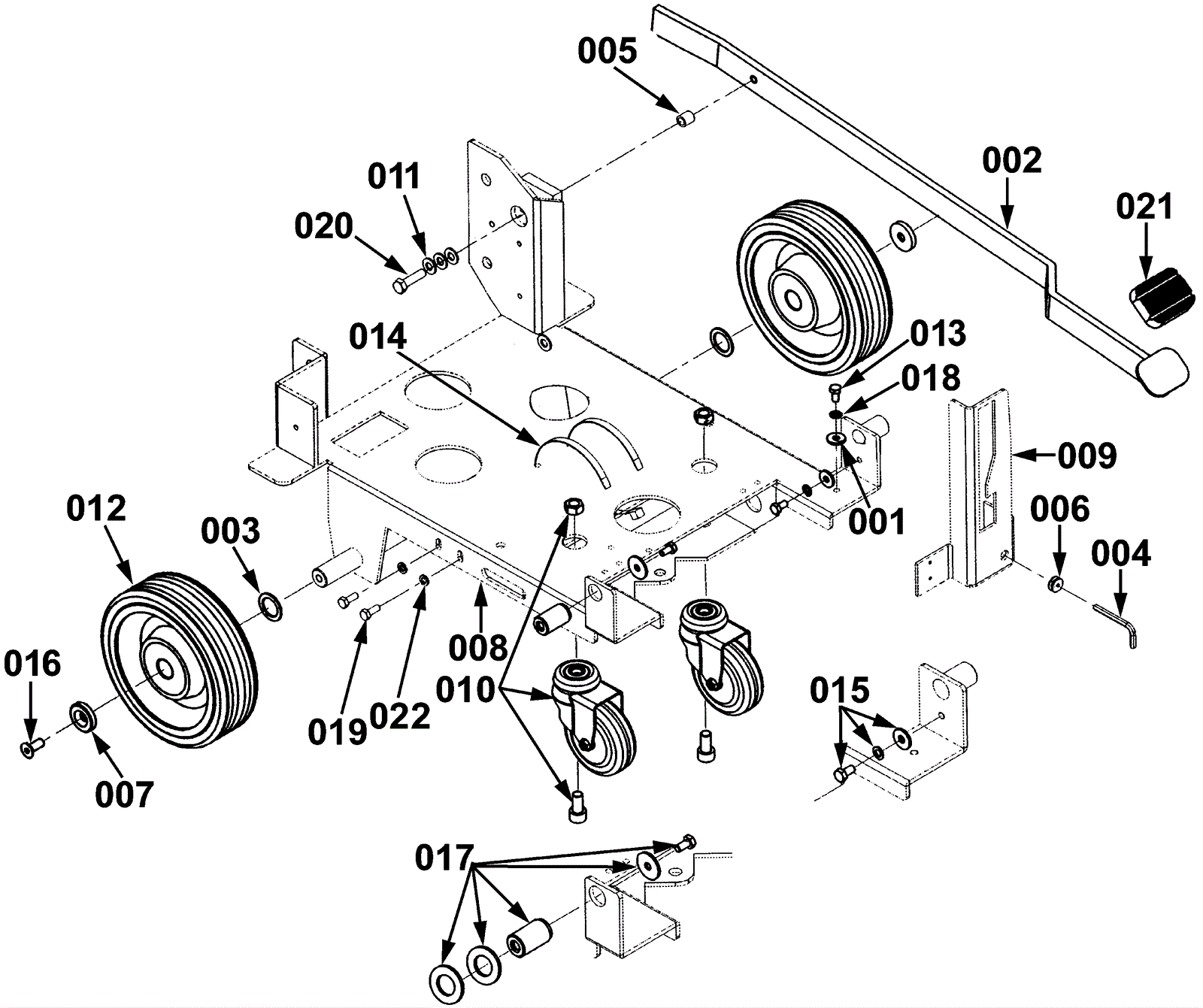

RAZOR20B Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 181-0919 Chassis system hardware kit (OBSOLETE) $5.94 2 usually ships 16-41 days
002 N/A Not available Call for price 1 (Brush lifting pedal) usually ships 3-26 days
003 172-5085 Spacer(OBSOLETE) $8.80 2 usually ships 16-41 days
004 272-8091 Allen wrench $10.52 1 usually ships 1-5 days
005 272-8092 Spacer $13.40 2 usually ships 1-5 days
006 272-8093 Cable guide $8.80 1 usually ships 1-5 days
007 272-8089 Spacer $10.71 2 usually ships 16-41 days
008 N/A Not available Call for price 1 (Chassis) usually ships 3-26 days
009 172-5081 Guide (OBSOLETE) $44.00 1 usually ships 16-41 days
010 181-0900 Rear wheel caster kit (OBSOLETE) $164.67 2 usually ships 16-41 days
012a 181-0909 Front wheel $186.96 2 usually ships 16-41 days
012b 272-8090 Oil resistant front wheel (OBSOLETE) $124.56 2 (Optional) usually ships 16-41 days
015 181-0900 Rear wheel caster kit (OBSOLETE) $164.67 1 usually ships 16-41 days
017 181-0911 Left tank support kit (OBSOLETE) $18.17 1 usually ships 1-5 days
018 999-0051 Washer #6 medium split lock $0.99 2 ships same day
019 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
021 181-0917 Pedal cover $16.50 1 usually ships 16-41 days
022 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
