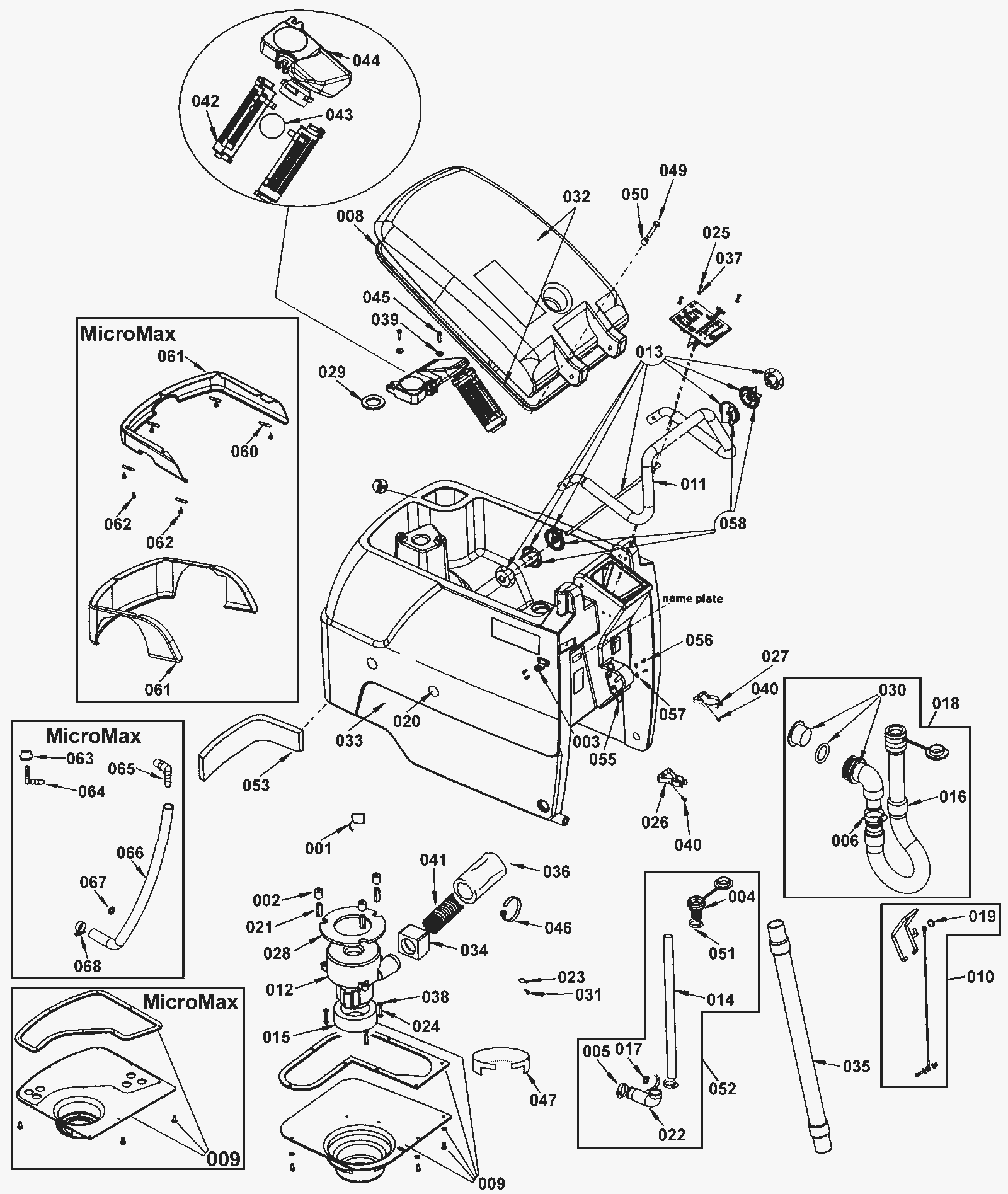

Tank Assembly

#PartDescription ReqNotesAvailability
001a 181-0886 Carbon brush (OBSOLETE) 2 For Fise vacuum motor
001b 272-8069 Carbon brushes set 1 For Ametek vacuum motor
002 272-8070 Rubber buffer (OBSOLETE) 3
003 172-4237 Hose bracket (OBSOLETE) 1 Razor models
004 272-0849 Solution hose plug 1 Razor models
005 172-4693 Hose clamp 1
006 172-4693 Hose clamp 1 Razor models
008a 181-2002 Recovery tank lid gasket 1 Razor models
008b 272-8080 Tank lid gasket (OBSOLETE) 1 MicroMax Models
009a N/A Not available 1 Razor models (Acoustic cover kit)
009b 272-8081 Acoustic cover kit (OBSOLETE) 1 MicroMax Models
010 181-0893 Squeegee lift kit (OBSOLETE) 1
011a 172-5082 Handle bar (OBSOLETE) 1 Razor models
011b 272-8082 Handle bar (OBSOLETE) 1 MicroMax Models
012 181-0895 24V 3 stage vacuum motor kit with connector 1
013 181-0896 Handle adjuster kit 1
014 181-0916 Fresh water hose kit 1 Razor models
015 172-5088 Acoustic insulation (OBSOLETE) 1
016 272-9628 Drain hose kit 1
017 172-4693 Hose clamp 1 Razor models
018 272-1973 Drain hose assembly (OBSOLETE) 1 Includes 006,016 and 030
019 272-1159 Plastic clamp 1
020a 172-4695 Locking tank cap 4 Razor models
020b 172-4695 Locking tank cap 4 MicroMax Models
021a 272-8071 Spacer (OBSOLETE) 3 MicroMax Models
021b 272-8071 Spacer (OBSOLETE) 3 Razor models
022 N/A Not available 1 Razor models (elbow)
023 172-4693 Hose clamp 3
024 999-0886 Screw M5-.8 x 20mm pan head slotted zinc 3
025 999-0900 Screw M8-1.25 x 18mm hex head stainless steel 4
026 N/A Not available 1 (Hardware kit) (Hose bracket)
027 N/A Not available 1 (Hardware kit) (Hose bracket)
028a 272-8072 Vacuum motor gasket 1 Razor models
028b 272-8072 Vacuum motor gasket 1 MicroMax Models
029 272-5298 Gasket 1
030 181-0904 Elbow drain hose kit (OBSOLETE) 1
031 N/A Not available 3 (Hardware kit) (Screw)
032a 181-0905 Tank lid with gasket (OBSOLETE) 1 Razor models
032b 272-8084 Tank lid with gasket (OBSOLETE) 1 MicroMax Models
033a 181-0906 Tank (OBSOLETE) 1 Razor models
033b 272-8085 Tank (OBSOLETE) 1 MicroMax Models
034a 272-8073 Acoustic insulation (OBSOLETE) 1 Razor models
034b 272-8073 Acoustic insulation (OBSOLETE) 1 MicroMax Models
035a 181-0908 Suction hose (OBSOLETE) 1 Razor models
035b 272-1965 Vacuum hose 1 MicroMax Models
036 181-1724 Acoustic insulation hose (OBSOLETE) 1
037 999-0412 Washer #8 SAE flat 4
038 999-9100 Washer M5 flat stainless steel 3
039 999-1261 Washer M6 flat stainless steel 2
040 N/A Not available 2 (Hardware kit) (Screw)
041a 181-1719 Flexible hose (OBSOLETE) 1 Razor models
041b 272-8086 Flexible hose (OBSOLETE) 1 MicroMax Models
042a 172-0517 Float cage half (2 required for full float cage) 2 Razor models
042b 172-0517 Float cage half (2 required for full float cage) 2 MicroMax Models
043 172-0192 Float ball 1
044a 270-0363 Float mount (OBSOLETE) 1 Razor models
044b 172-4721 Float cage support (OBSOLETE) 1 MicroMax Models
045 999-0779 Screw M6-1 x 25mm hex head plain finish 2
046 172-4693 Hose clamp 1
047 272-0249 Acoustic insulation (OBSOLETE) 1 Razor models
050 181-0914 Spacer 1
051 172-4693 Hose clamp 2 Razor models
052 181-0916 Fresh water hose kit 1 Razor models
053 181-1721 Insulation gasket (OBSOLETE) 1
055 272-0659 On-board charger cord wrap 1
056 999-9102 Screw M5-.8 x 12mm oval head stainless steel 2
057 999-9100 Washer M5 flat stainless steel 2
058 181-0896 Handle adjuster kit 1
060 272-8088 Plate 5 MicroMax Models
061a 272-8078 Front bumper (OBSOLETE) 1 MicroMax Models before SN 1777148
061b 272-8079 Front bumper 1 MicroMax Models after SN 1777148
062 999-9102 Screw M5-.8 x 12mm oval head stainless steel 7 MicroMax Models
063 272-8076 Gasket 1 MicroMax Models
064 272-5444 90 degree elbow (OBSOLETE) 1 MicroMax Models
065 172-2100 90 degree barbed elbow 3/4 x 3/8 1 MicroMax Models
066 272-8083 Solution hose (OBSOLETE) 1 MicroMax Models
067 172-4693 Hose clamp 1 MicroMax Models
068 172-4693 Hose clamp 2 MicroMax Models
N/S 272-0615 Gasket (OBSOLETE) 1 MicroMax Models
