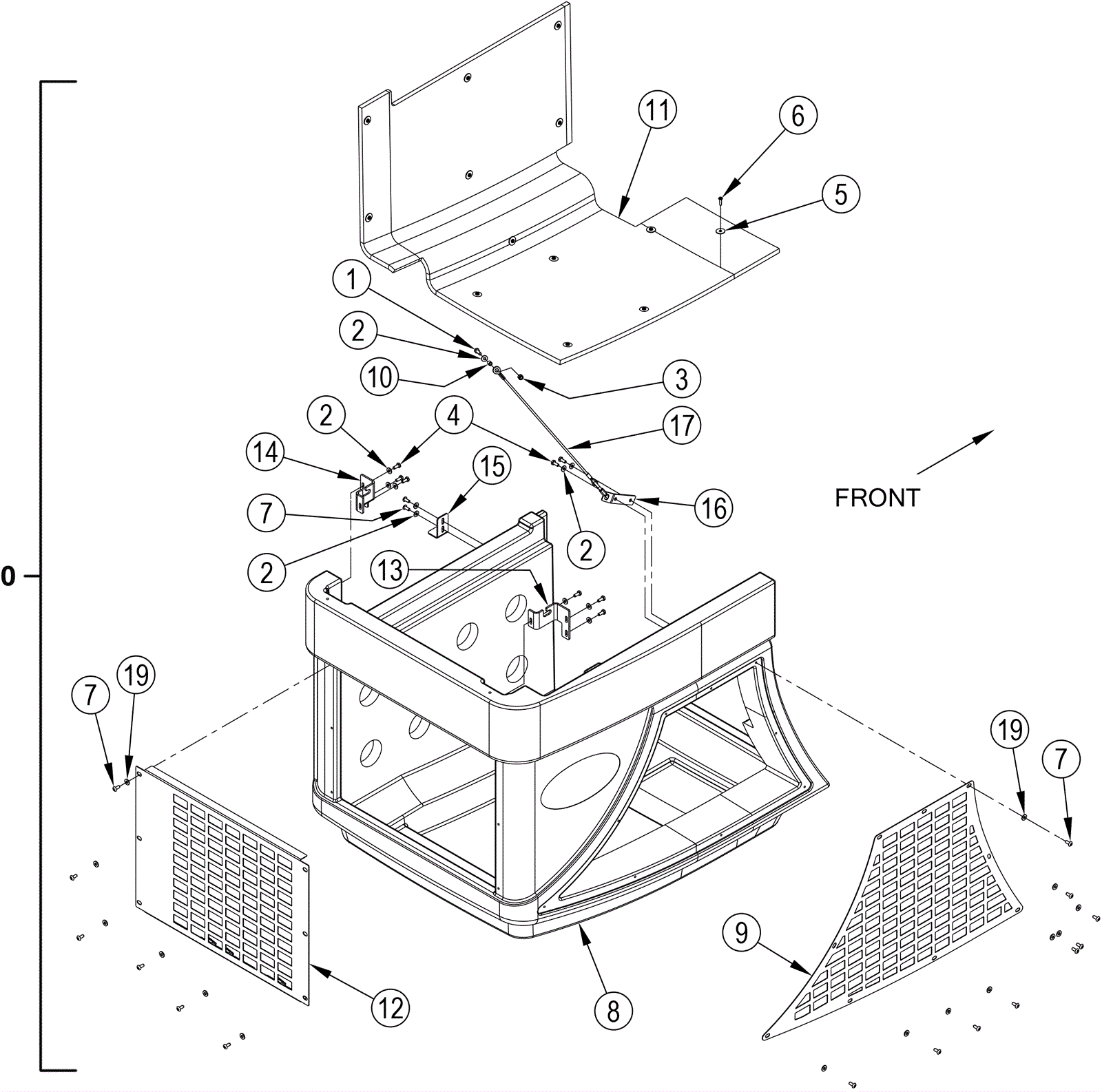

SW8000 Engine Rear Cover Assembly

#PartDescriptionPriceReqNotesAvailability
0 472-4067 COVER REAR ASSY $2,909.70 1 (includes 1-18) usually ships 17-28 days
1 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 1 ships same day
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 11 ships same day
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
4 272-1465 Screw 1/4-20 X 5/8 hex head lock $12.31 8 usually ships 1-5 days
5 172-0553 Washer 17/64 x 1/16 flat $10.85 13 (included in KIT1) usually ships 17-28 days
6 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 13 (included in KIT1) ships same day
7 172-6241 Screw 1/4-14 x 5/8 pan phillips stainless steel $12.31 17 (included in KIT1) usually ships 1-5 days
8 472-4069 ENGINE COVER ASSY $857.98 1 (included in KIT1) usually ships 17-28 days
9 472-4070 VENT COVER $215.00 1 (included in KIT1) usually ships 17-28 days
10 172-0400 Bushing $15.48 1 usually ships 1-5 days
11 372-2278 Foam insulation $160.86 1 (included in KIT1) usually ships 17-28 days
12 472-4114 SHROUD RADIATOR $176.52 1 (included in KIT1) usually ships 17-28 days
13 572-0696 BRACKET ENGINE COVER $38.62 1 usually ships 17-28 days
14 372-2280 Engine cover bracket $38.62 1 usually ships 17-28 days
15 372-2281 Engine cover clamp bracket $19.98 1 usually ships 17-28 days
16 372-2282 Hood bracket $19.98 1 usually ships 17-28 days
17 372-0416 Cable assembly $14.06 1 usually ships 1-5 days
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 15 ships same day
KIT1 472-4091 KIT-ENGINE COVER ASSY $1,990.97 1 (includes 5-9, 11-12) usually ships 17-28 days
