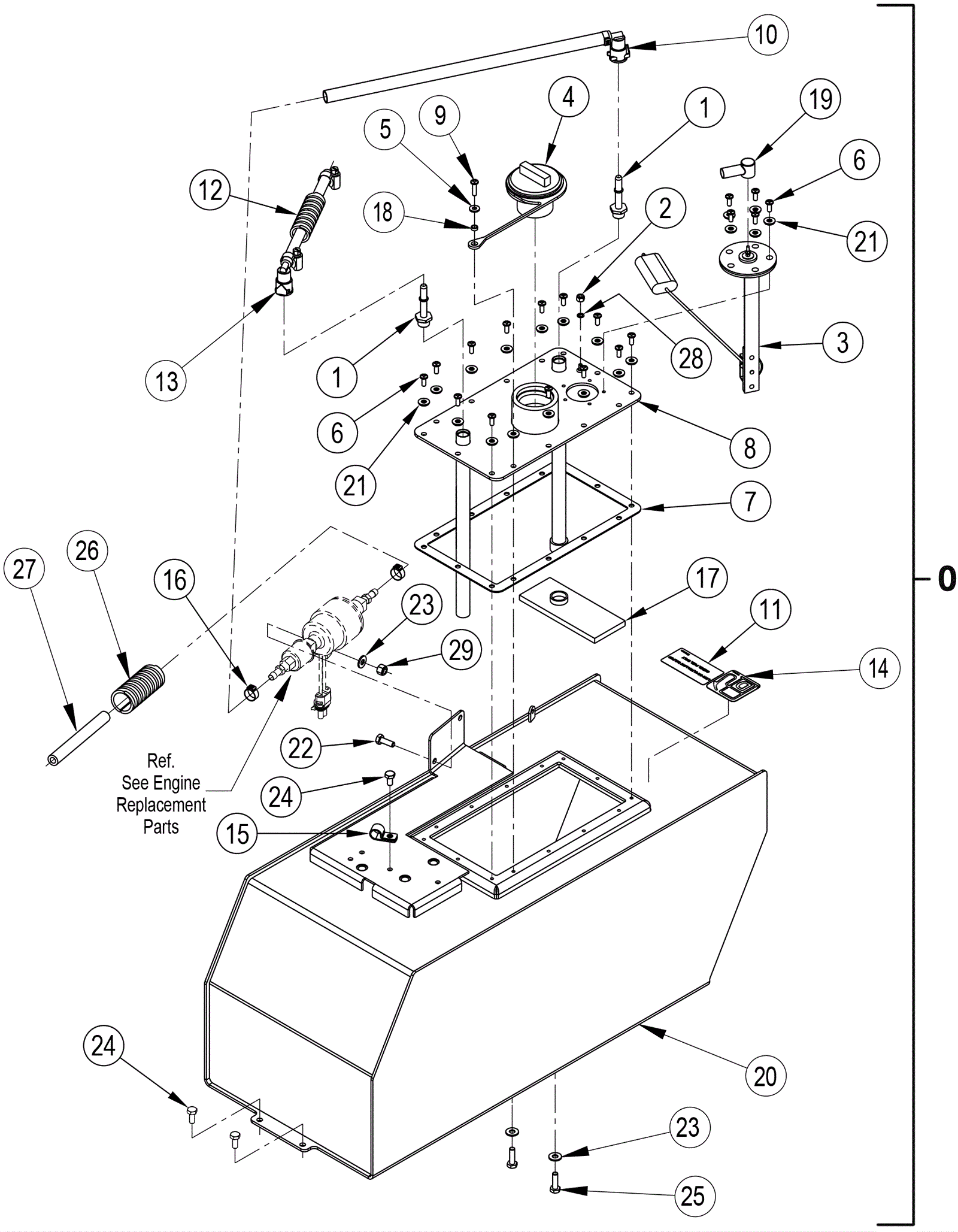

SW8000 Engine Fuel Tank Assembly - Kubota Diesel

#PartDescriptionPriceReqNotesAvailability
0 472-4190 TANK DIESEL ASSY EU $2,985.95 1 (includes 1-11, 14-24, 28-30) usually ships 17-28 days
1 272-7862 Quick connect fitting $90.43 2 usually ships 1-5 days
2 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
3 272-3325 Fuel level sender $153.52 1 usually ships 17-28 days
4 272-7868 Fuel cap $34.14 1 usually ships 1-5 days
5 999-1862 Washer #10 flat SAE stainless steel $0.99 1 ships same day
6 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 18 ships same day
7 272-7867 Cover gasket $12.31 1 usually ships 1-5 days
8 272-7866 Cover plate weldment $620.68 1 usually ships 1-5 days
9 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
10 272-7865 Hose assembly $69.01 1 usually ships 1-5 days
11 272-7874 Low sulfur diesel decal $12.31 1 usually ships 1-5 days
12 372-2276 Conduit $24.60 1 usually ships 17-28 days
13 372-2275 Hose assembly $120.08 1 usually ships 17-28 days
14 172-5700 Diesel fuel decal $72.63 1 usually ships 1-5 days
15 172-2122 P clamp $12.31 1 usually ships 17-28 days
16 272-7869 Clamp $12.31 2 usually ships 1-5 days
17 272-3327 Strainer $42.98 1 usually ships 1-5 days
18 272-7863 Bushing $13.76 1 usually ships 1-5 days
19 172-2303 Rubber boot $13.76 1 usually ships 1-5 days
20 272-7864 Fuel tank weldment $1,914.58 1 usually ships 1-5 days
21 172-2311 Washer 9/16 $12.31 19 usually ships 17-28 days
22 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
23 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
24 272-9677 Screw 1/4-20 x 1/2 hex head $12.31 3 usually ships 1-5 days
25 272-1596 Bolt 1/4-20 x 3/4 hex head lock $13.76 2 usually ships 1-5 days
26 372-2273 Conduit $31.10 1 usually ships 17-28 days
27 372-2274 Fuel line hose $60.06 1 usually ships 17-28 days
28 272-7873 Internal tooth locking washer with screw $12.31 1 usually ships 1-5 days
29 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
N/S 372-3196 Fuel pump gasket $7.82 2 usually ships 17-28 days
