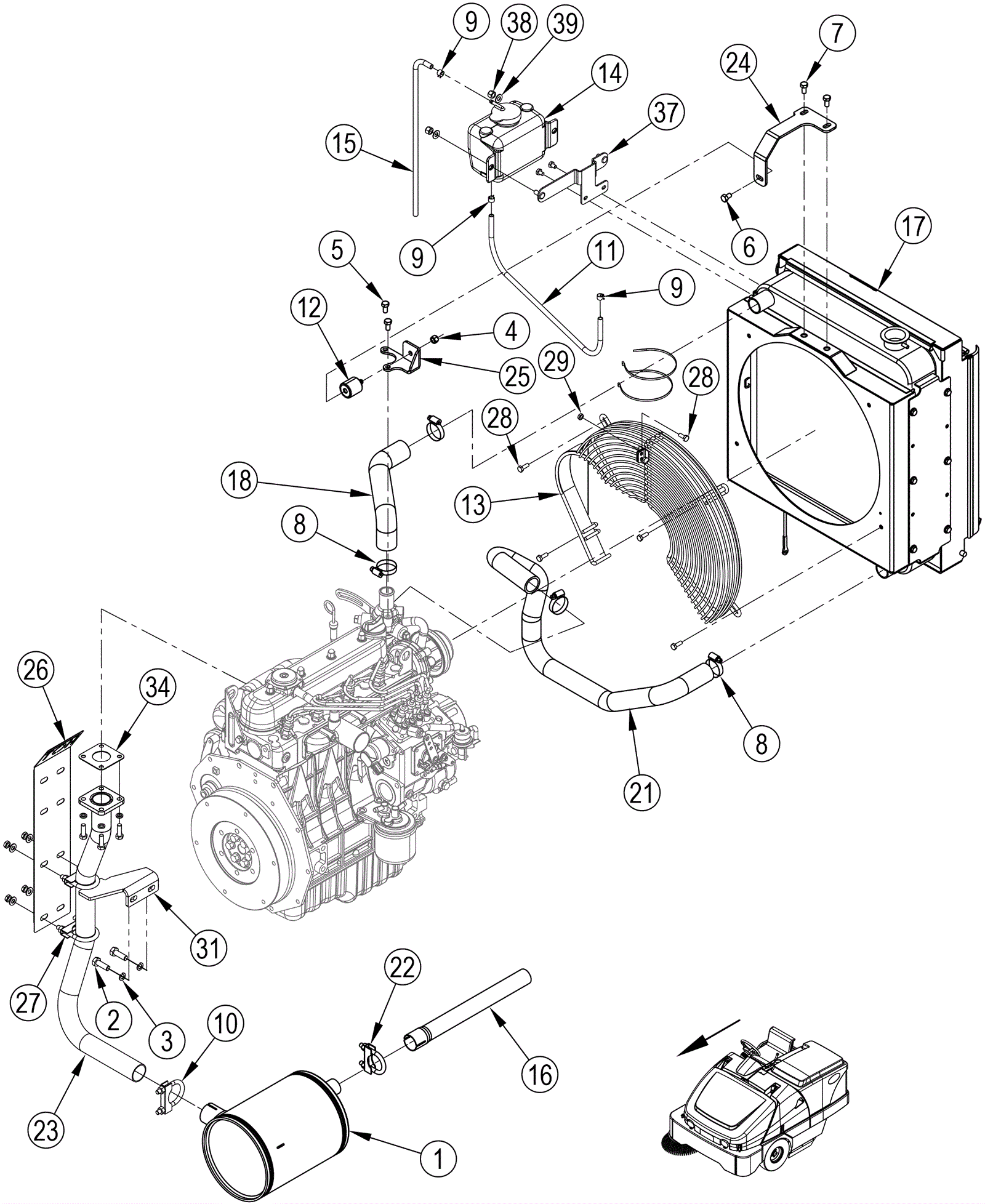

SW8000 Engine Assembly - Kubota Diesel - 2 - After December 2018

#PartDescriptionPriceReqNotesAvailability
1 372-2161 Muffler $743.74 1 usually ships 17-28 days
2 N/A Not available Call for price 2 (bolt M10-1.25 x 30mm) usually ships 3-26 days
3 N/A Not available Call for price 2 (washer M10 star) usually ships 3-26 days
4 N/A Not available Call for price 1 (nut M8-1.25) usually ships 3-26 days
5 N/A Not available Call for price 2 (bolt M8-1.25 x 35mm) usually ships 3-26 days
6 N/A Not available Call for price 1 (bolt M8-1.25 x 20mm) usually ships 3-26 days
7 N/A Not available Call for price 2 (bolt 5/16-18 x 3/4 inch) usually ships 3-26 days
8 272-7768 Hose clamp $12.31 4 usually ships 1-5 days
9 272-3330 Hose band clamp $12.31 3 usually ships 1-5 days
10 372-1061 Muffler clamp $12.31 1 usually ships 1-5 days
11 572-0269 HOSE ASSY 1/4X22.00 E00529 $12.31 1 usually ships 17-28 days
12 372-1550 Engine isolator $35.60 1 usually ships 17-28 days
13 472-4107 FAN GUARD ASSY $513.19 1 usually ships 17-28 days
14 372-3171 Overflow bottle $55.56 1 usually ships 17-28 days
15 372-2175 Coolant overflow hose $24.60 1 usually ships 17-28 days
16 372-2176 Tail pipe $51.21 1 usually ships 17-28 days
17 N/A Not available Call for price 1 (radiator assembly) usually ships 3-26 days
18 372-2260 Upper radiator hose $81.60 1 usually ships 17-28 days
21a 372-2261 Lower radiator hose $176.52 1 usually ships 17-28 days
21b 272-7843 Lower radiator hose $41.54 1 (replacement part for rubber elbow which connects directly to the water pump) usually ships 1-5 days
22 372-2178 Muffler clamp $12.31 1 usually ships 17-28 days
23 372-2262 Exhaust assembly $298.77 1 usually ships 17-28 days
24 372-2263 Radiator support bracket $92.03 1 usually ships 17-28 days
25 372-2264 Radiator iso support bracket $134.98 1 usually ships 17-28 days
26 372-2172 Exhaust heat shield $169.11 1 usually ships 17-28 days
27 272-3274 Muffler clamp $46.00 1 usually ships 1-5 days
28 999-6673 Bolt 1/4-20 x 5/8 hex flanged zinc finish $0.99 6 usually ships 12-18 days
29 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
31 372-2265 Exhaust pipe bracket $118.65 1 usually ships 17-28 days
34 272-7821 Exhaust gasket $63.07 1 usually ships 1-5 days
37 372-0412 Overflow bottle bracket $197.59 1 usually ships 17-28 days
38 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
39 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
