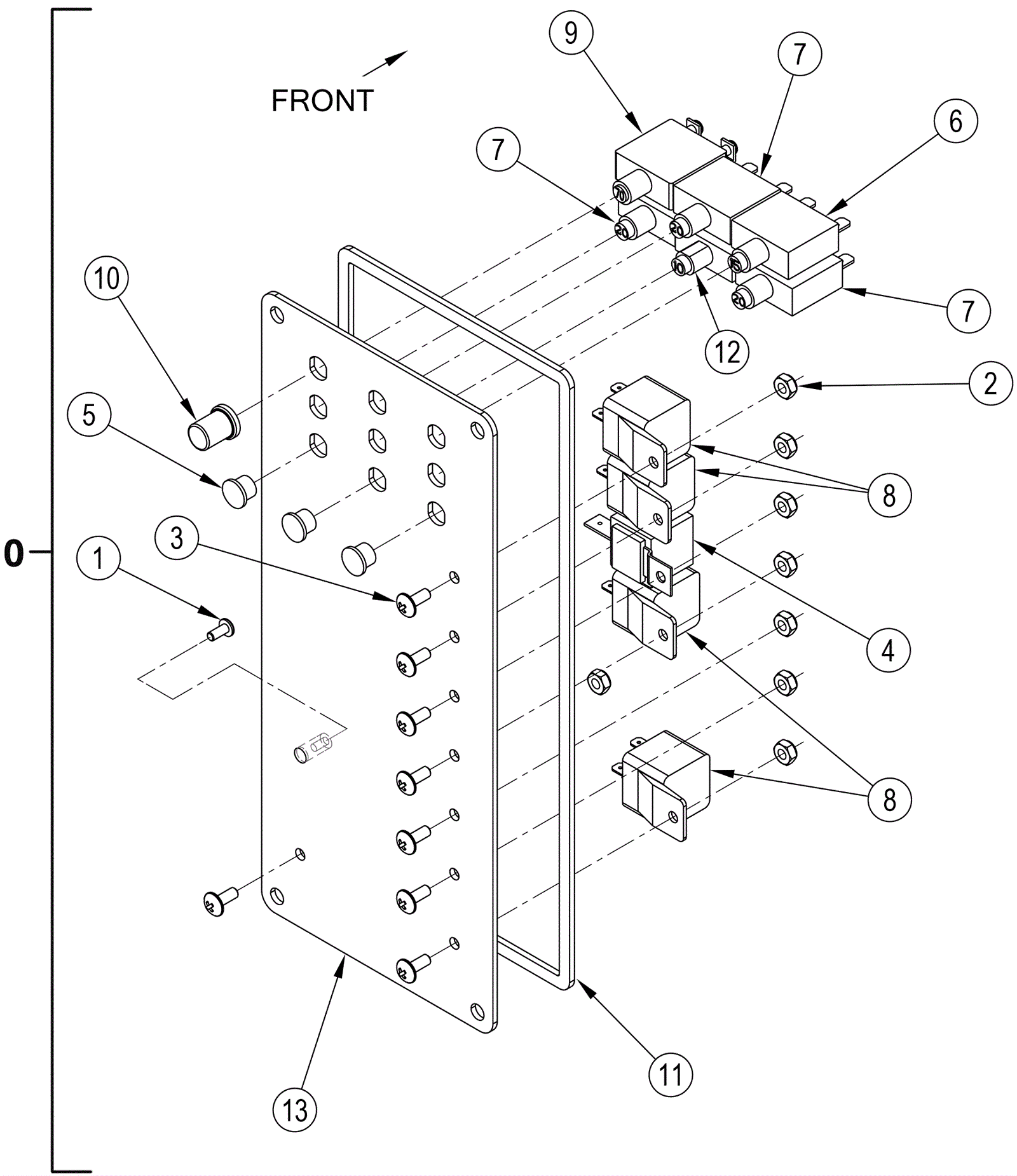

SW8000 Circuit Breaker Panel Assembly

#PartDescriptionPriceReqNotesAvailability
0a 372-2050 Disel panel assembly $398.17 1 (includes 1-13) usually ships 17-28 days
0b 372-2051 LPG/Petrol panel assembly $406.41 1 (includes 1-13) usually ships 17-28 days
1 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 1 ships same day
2 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 8 ships same day
3 472-3591 SCR-TRUSS PHIL SS BLK10-24X.50 $9.26 8 usually ships 17-28 days
4 472-4103 RELAY $60.06 1 usually ships 17-28 days
5 272-2928 Button plug $12.31 3 usually ships 1-5 days
6 272-9755 15amp circuit breaker $15.48 1 usually ships 17-28 days
7 272-7727 20amp circuit breaker $29.23 3 ships same day
8 272-2950 Hopper door relay $37.05 3 (qty 4 for diesel) usually ships 1-5 days
9 172-2523 70amp circuit breaker $118.65 1 usually ships 1-5 days
10 172-0232 Clear boot cap $34.87 1 usually ships 17-28 days
11 372-2052 RS strip gasket $63.07 1 usually ships 17-28 days
12 272-9374 10amp circuit breaker $24.60 1 usually ships 17-28 days
13 472-4139 PANEL-CIRCUIT BREAKERS ASSY $42.98 1 usually ships 17-28 days
