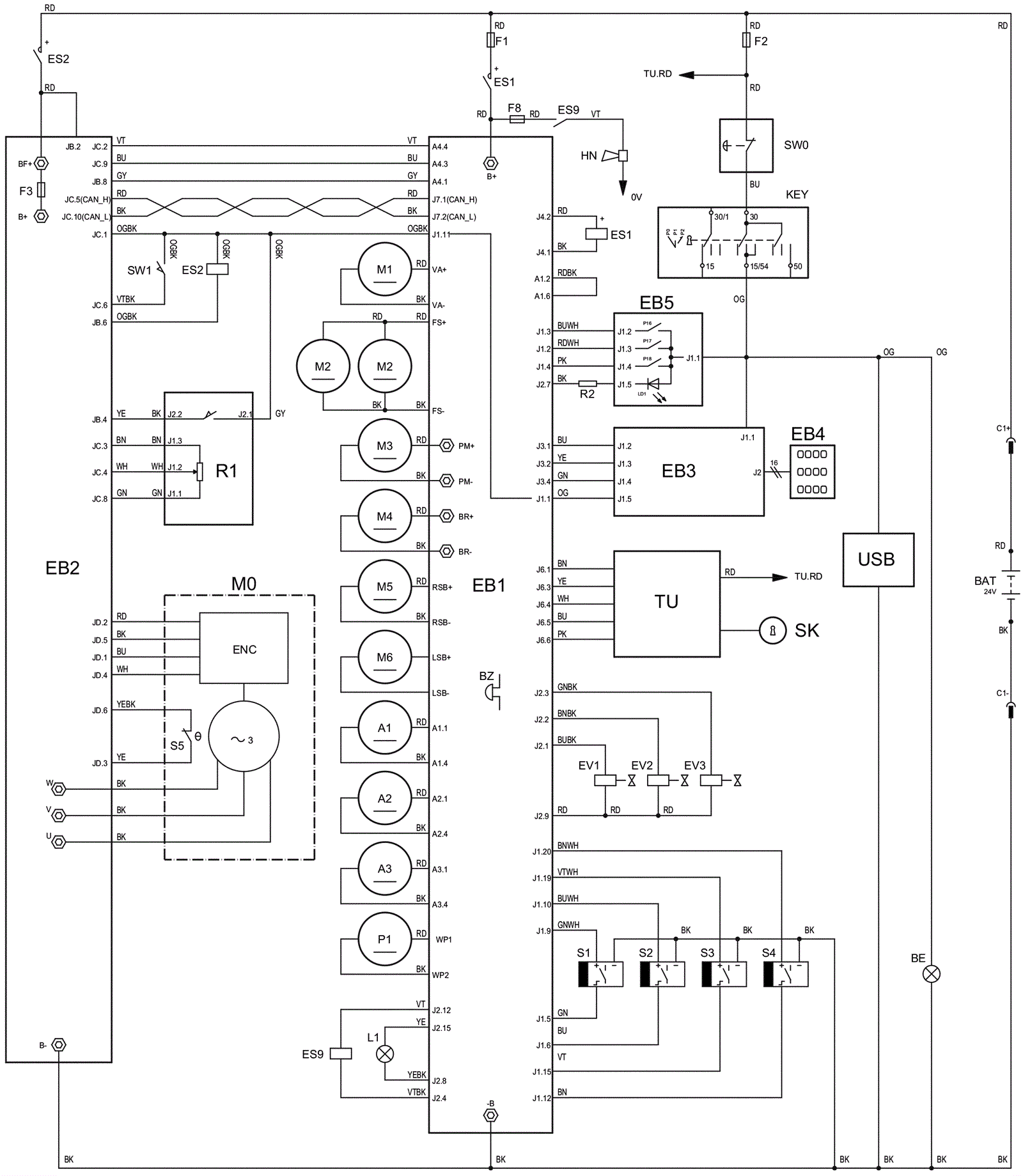

SW5500 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
A1 472-1313 ACTUATOR 24V DC STRK 45MM PKD $429.26 1 usually ships 17-28 days
A2 472-1313 ACTUATOR 24V DC STRK 45MM PKD $429.26 1 usually ships 17-28 days
A3 472-1313 ACTUATOR 24V DC STRK 45MM PKD $429.26 1 usually ships 17-28 days
BE 472-1026 BEACON KIT BE $674.08 1 usually ships 17-28 days
C1 272-0636 Battery connector $78.58 1 usually ships 1-5 days
C2 272-0636 Battery connector $78.58 1 usually ships 1-5 days
EB1 572-3713 CONTROLLER MAIN MACHINE KIT $2,220.72 1 usually ships 17-28 days
EB2 472-1307 CONTROLLER DRIVE 24V 240A PKD $2,449.89 1 usually ships 17-28 days
EB3 472-1319 CONTROLLER DISPLAY PKD $436.79 1 usually ships 17-28 days
EB4 472-1318 CONTROL PANEL BLACK PKD $196.05 1 usually ships 17-28 days
EB5 372-0178 Dashboard side control panel $130.76 1 usually ships 17-28 days
ES1 472-1304 CONTACTOR 24V 100A PKD $206.91 1 usually ships 17-28 days
ES2 472-1303 CONTACTOR 24V 200A PKD $275.91 1 usually ships 17-28 days
F1 472-1308 FUSE BOLT DOWN 150A PKD $27.64 1 usually ships 17-28 days
F2 272-8363 10amp fuse $31.10 1 usually ships 1-5 days
F3 472-1412 FUSE BOLT-DOWN 160A $104.61 1 usually ships 17-28 days
HN 472-1366 HORN 24V PKD $74.21 1 usually ships 17-28 days
KEY 472-3152 KEY START ASSY WITH SPARE KEY $252.90 1 usually ships 17-28 days
L1 372-0392 Front light kit $575.81 1 usually ships 17-28 days
M0 472-1396 MOTORWHEEL TV-130 24V AC 1.2KW $7,579.59 1 usually ships 17-28 days
M1 472-1371 FAN RADIAL 24V PKD $444.17 1 usually ships 17-28 days
M2 372-0308 24V motor filter shaker $384.18 1 usually ships 17-28 days
M3 472-1324 GEARCASE HYD 24V 800W PKD $2,679.79 1 usually ships 17-28 days
M4 472-1347 MOTOR 24V 1250W 3800 RPM KIT $1,761.07 1 usually ships 17-28 days
M5 472-1314 MOTOR GEARBOX 24VDC 120W PKD $949.84 1 usually ships 17-28 days
M6 372-4010 Gearbox assembly $796.33 1 usually ships 17-28 days
R1 372-0189 Accelerator pedal kit $844.01 1 usually ships 17-28 days
S1 472-1382 SWITCH BACK UP PROXIMITY PKD $113.42 1 usually ships 17-28 days
S2 472-1382 SWITCH BACK UP PROXIMITY PKD $113.42 1 usually ships 17-28 days
S3 472-1382 SWITCH BACK UP PROXIMITY PKD $113.42 1 usually ships 17-28 days
S4 472-1382 SWITCH BACK UP PROXIMITY PKD $113.42 1 usually ships 17-28 days
SW0 272-8340 Emergency switch $101.56 1 usually ships 17-28 days
SW1 472-1365 SEAT PKD $1,684.68 1 usually ships 17-28 days
USB 372-0393 USB port kit $244.29 1 usually ships 17-28 days
