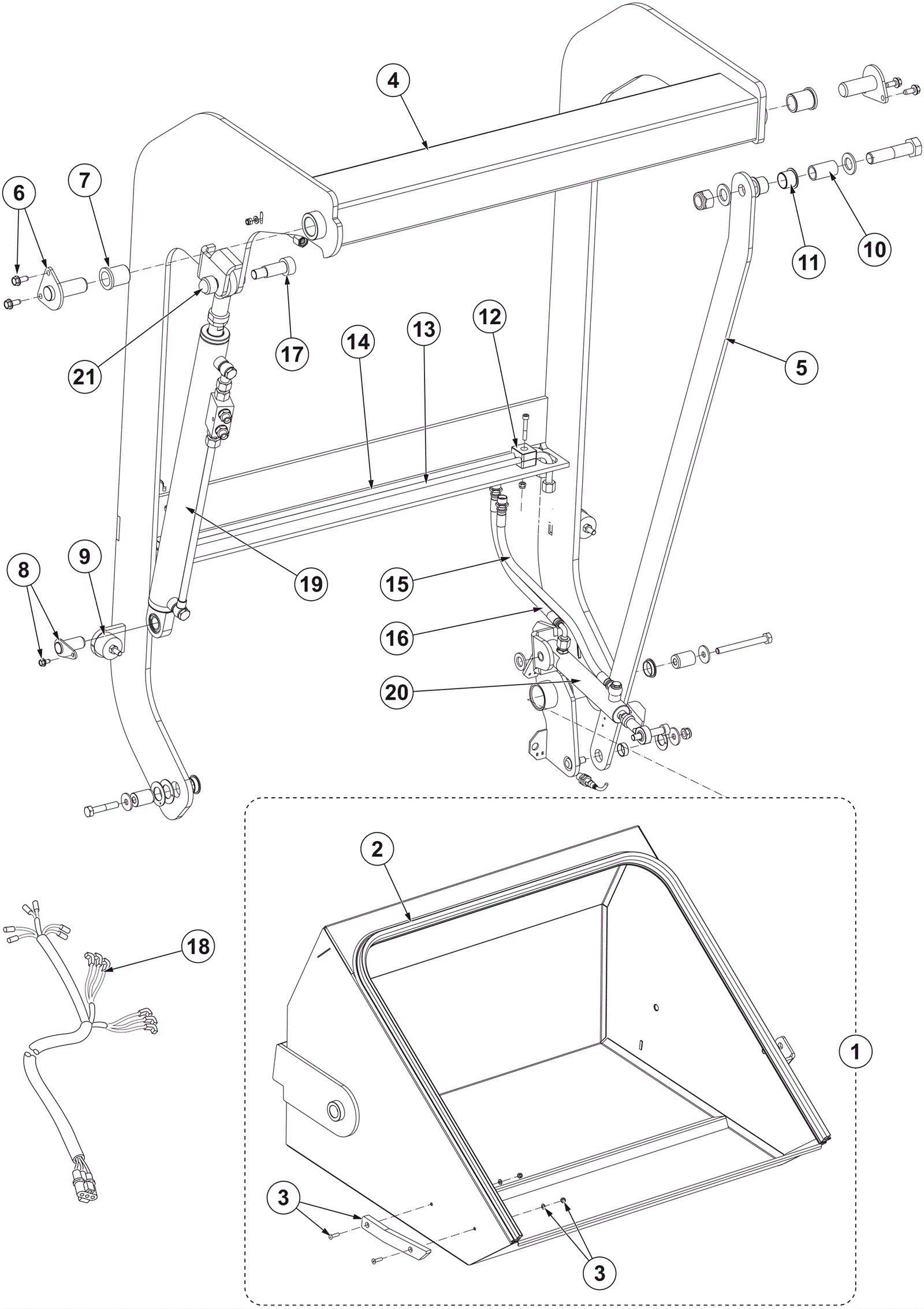

SW5500 Lifting Hopper Assembly - 1

#PartDescriptionPriceReqNotesAvailability
1 372-0263 Waste hopper $2,004.56 1 (includes 2-3) usually ships 13-18 days
2 472-1344 GASKET RUBBER L.2020MM PKD $67.56 1 usually ships 13-18 days
3 472-1343 CAM HOPPER POSITIONING KIT $115.74 1 usually ships 13-18 days
4 372-0264 Primary hopper lifting arm $2,164.51 1 usually ships 13-18 days
5 372-0265 Secondary hopper lifting arm $264.79 1 usually ships 13-18 days
6 372-0266 Pivoting pin $97.85 2 usually ships 13-18 days
7 372-0267 Flange bearing $41.97 2 usually ships 13-18 days
8 372-0268 Cylinder lifting pin $94.68 1 usually ships 13-18 days
9 472-1375 BUMPER M8 40X25MM PKD $46.67 2 usually ships 13-18 days
10 372-0269 Spacer $30.60 1 usually ships 13-18 days
11 372-0270 Bearing $30.60 1 usually ships 13-18 days
12 372-0271 Twin clamp $27.26 3 usually ships 13-18 days
13 372-0272 Dump hose $344.77 1 usually ships 13-18 days
14 372-0273 Recall hose $336.91 1 usually ships 13-18 days
15 372-0274 Hydraulic hose $90.13 1 usually ships 13-18 days
16 372-0275 Hydraulic hose $90.13 1 usually ships 13-18 days
17 372-0276 Screw M16 shoulder set $109.53 1 usually ships 13-18 days
18 372-0277 Hopper harness $121.95 1 usually ships 13-18 days
19 472-1334 CYLINDER HYD 40/25/470 CPL KIT $1,154.45 1 usually ships 13-18 days
20 472-1325 CYLINDER HYD 25/16/120 CPL KIT $833.77 1 usually ships 13-18 days
21 372-0278 M16 nut cap $20.91 1 usually ships 13-18 days
