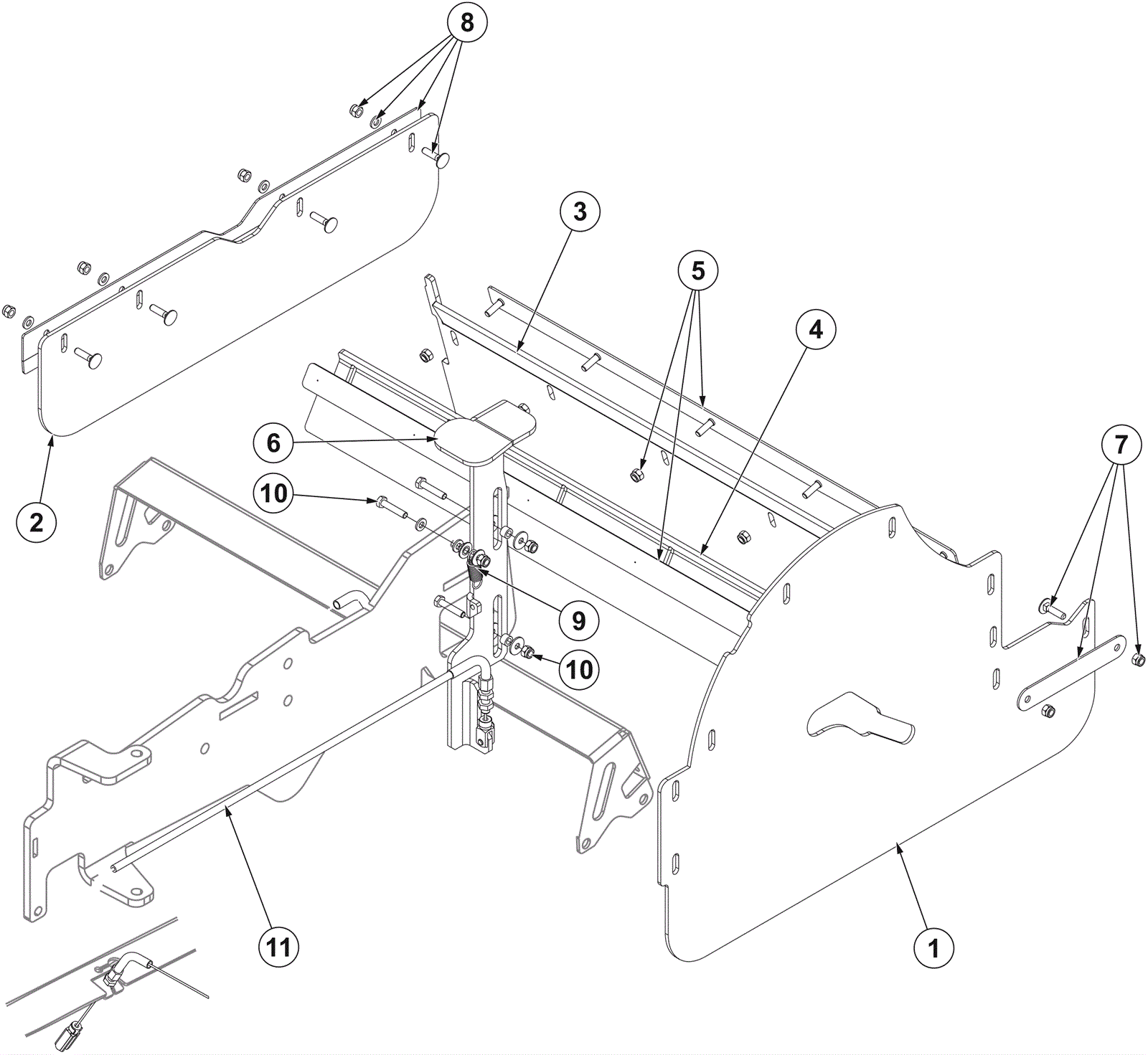

SW5500 Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
1 472-1300 SKIRT LT SIDE BLACK RUBBER PKD $314.39 1 usually ships 17-28 days
2 472-1302 SKIRT RT SIDE BLACK RUBBER PKD $153.52 1 usually ships 17-28 days
3 472-1299 SKIRT REAR BLACK RUBBER PKD $127.61 1 usually ships 17-28 days
4 472-1301 SKIRT REAR REC BLK RUBBER PKD $84.49 1 usually ships 17-28 days
5 372-0249 Rear skirt plate $199.90 1 usually ships 17-28 days
6a 372-0250 Front skirt raising pedal $169.47 1 (before SN 3810172000034) usually ships 17-28 days
6b 372-0251 Front skirt raising pedal $84.08 1 (after SN 3810172000033) usually ships 17-28 days
7 372-0252 Left hand skirt plate $120.33 1 usually ships 17-28 days
8 372-0253 Right hand skirt plate $160.80 1 usually ships 17-28 days
9 472-1370 SPRING TRACTION CARBON STEEL P $52.67 1 usually ships 17-28 days
10 372-0254 Skirt hardware $113.65 1 usually ships 17-28 days
11 472-1298 WIRE F FRONT SKIRT RAISING PKD $121.68 1 usually ships 17-28 days
