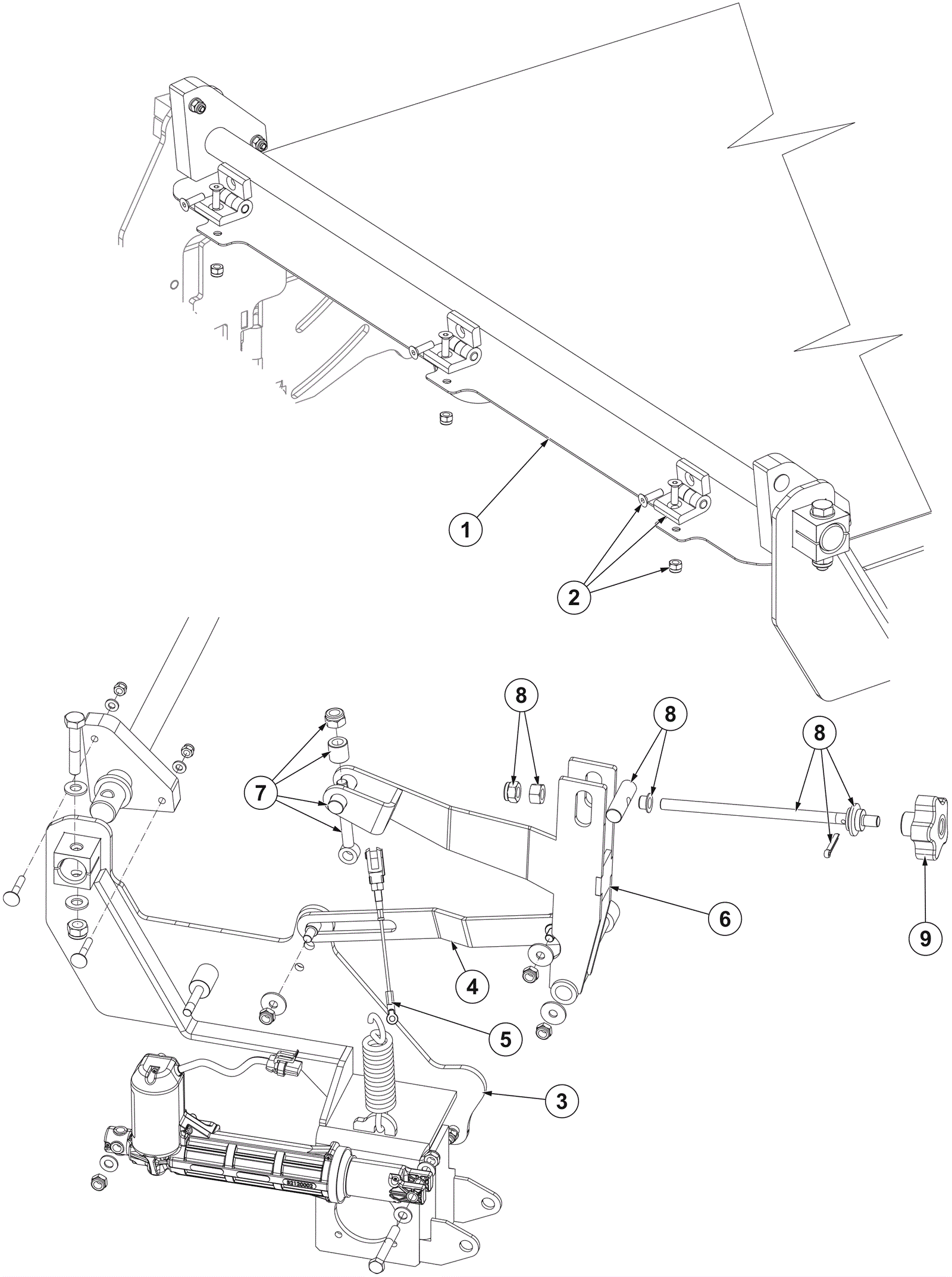

SW5500 Main Broom Adjustment Assembly

#PartDescriptionPriceReqNotesAvailability
1 372-0234 Wall plate $344.77 1 usually ships 13-18 days
2 372-0235 Wall hinges $139.81 3 usually ships 13-18 days
3 372-0236 Support arm $601.68 1 usually ships 13-18 days
4 372-0237 Lever $112.55 1 usually ships 13-18 days
5 472-1322 TIE-ROD BROOM SPRING PKD $106.34 1 usually ships 13-18 days
6 372-0238 Lifting lever $344.77 1 usually ships 13-18 days
7 372-0239 Adjusting spring kit $117.26 1 usually ships 13-18 days
8 372-0240 Setting screw kit $146.04 1 usually ships 13-18 days
9 472-1323 KNOB LOBES W/ ORANGE CAP PKD $30.60 1 usually ships 13-18 days
