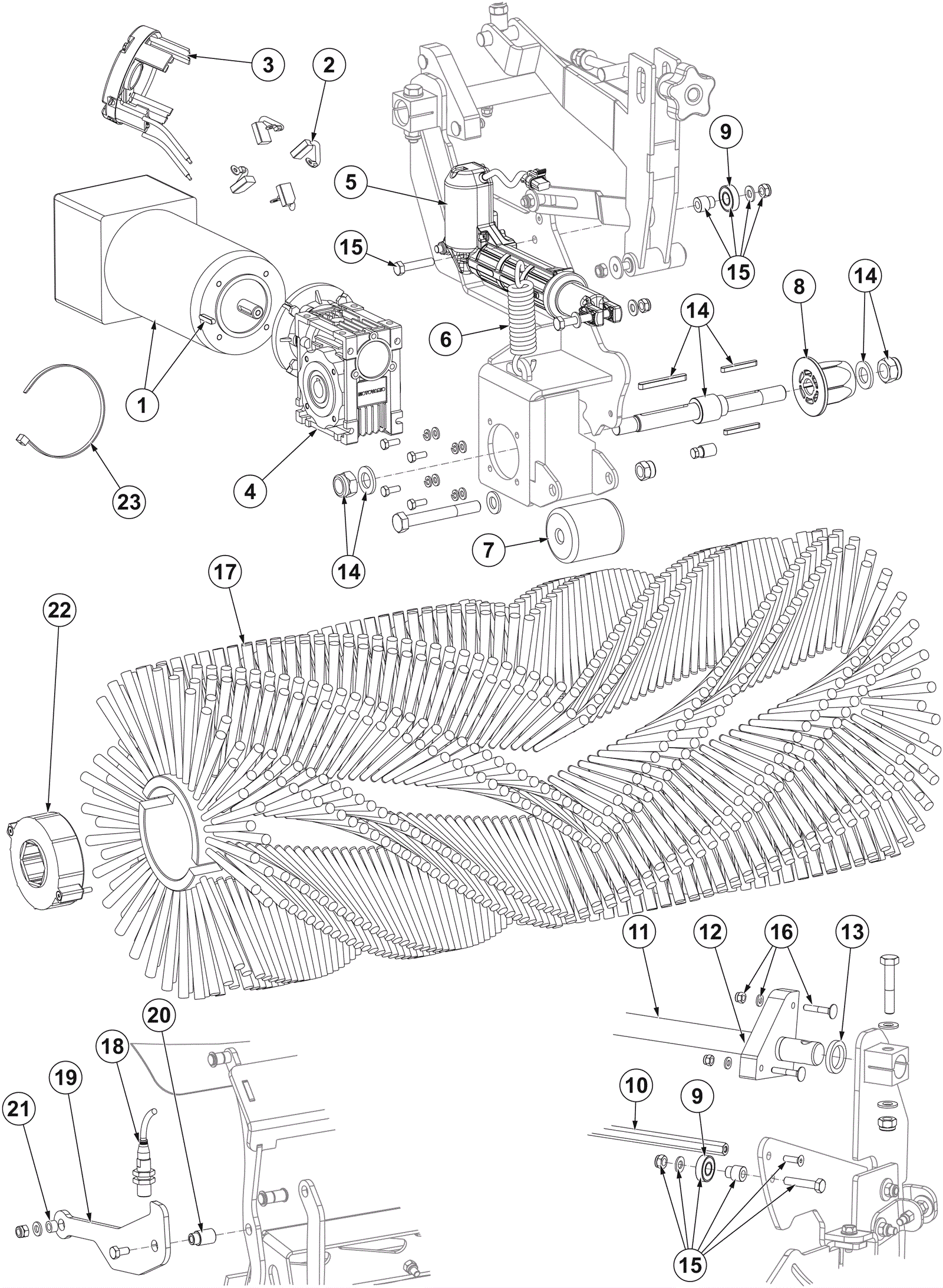

SW5500 Main Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1a 472-1347 MOTOR 24V 1250W 3800 RPM KIT $1,761.07 1 (battery model) usually ships 17-28 days
1b 472-1320 MOTOR 24V 1000W 3800 RPM KIT $1,608.28 1 (LPG model) usually ships 17-28 days
2 272-0845 Carbon brush kit $176.52 1 usually ships 1-5 days
3 472-1403 CAP F MP80L MOTOR BRUSHES $544.29 1 usually ships 17-28 days
4 472-1321 GEAR BOX 7.5/1 71 B14 PKD $513.19 1 usually ships 17-28 days
5 472-1313 ACTUATOR 24V DC STRK 45MM PKD $429.26 1 usually ships 17-28 days
6 472-1389 SPRING PKD $78.58 1 usually ships 17-28 days
7 472-1387 ROLLER SIDE BLADE PKD $88.99 1 usually ships 17-28 days
8 472-1380 HUB MAIN BROOM PKD $57.16 1 usually ships 17-28 days
9 172-3799 Ball bearing $23.01 2 ships same day
10 372-0222 Reinforced broom shaft $130.76 1 usually ships 17-28 days
11 372-0223 Broom shaft $130.76 1 usually ships 17-28 days
12 372-0224 Shaft support $141.21 2 usually ships 17-28 days
13 372-0225 Spacer $67.55 2 usually ships 17-28 days
14 372-0226 Main broom shaft kit $184.27 1 usually ships 17-28 days
15 372-0227 Guide support kit $108.44 1 usually ships 17-28 days
16 372-0228 Main broom support hardware $54.23 2 usually ships 17-28 days
17a 372-4009 Main broom $329.30 1 usually ships 17-28 days
17b 372-0229 Main broom (white) $384.18 1 usually ships 17-28 days
17c 372-0230 Main broom (black) $329.97 1 usually ships 17-28 days
18 472-1382 SWITCH BACK UP PROXIMITY PKD $113.42 1 usually ships 17-28 days
19 372-0231 Front skirt linking plate $81.76 1 usually ships 17-28 days
20 372-0232 Pin $26.10 1 usually ships 17-28 days
21 372-0233 Spacer $37.13 1 usually ships 17-28 days
22 372-0146 Main broom hub $74.36 1 usually ships 17-28 days
23 572-8040 Cable tie (10pcs) $34.00 1 usually ships 17-28 days
