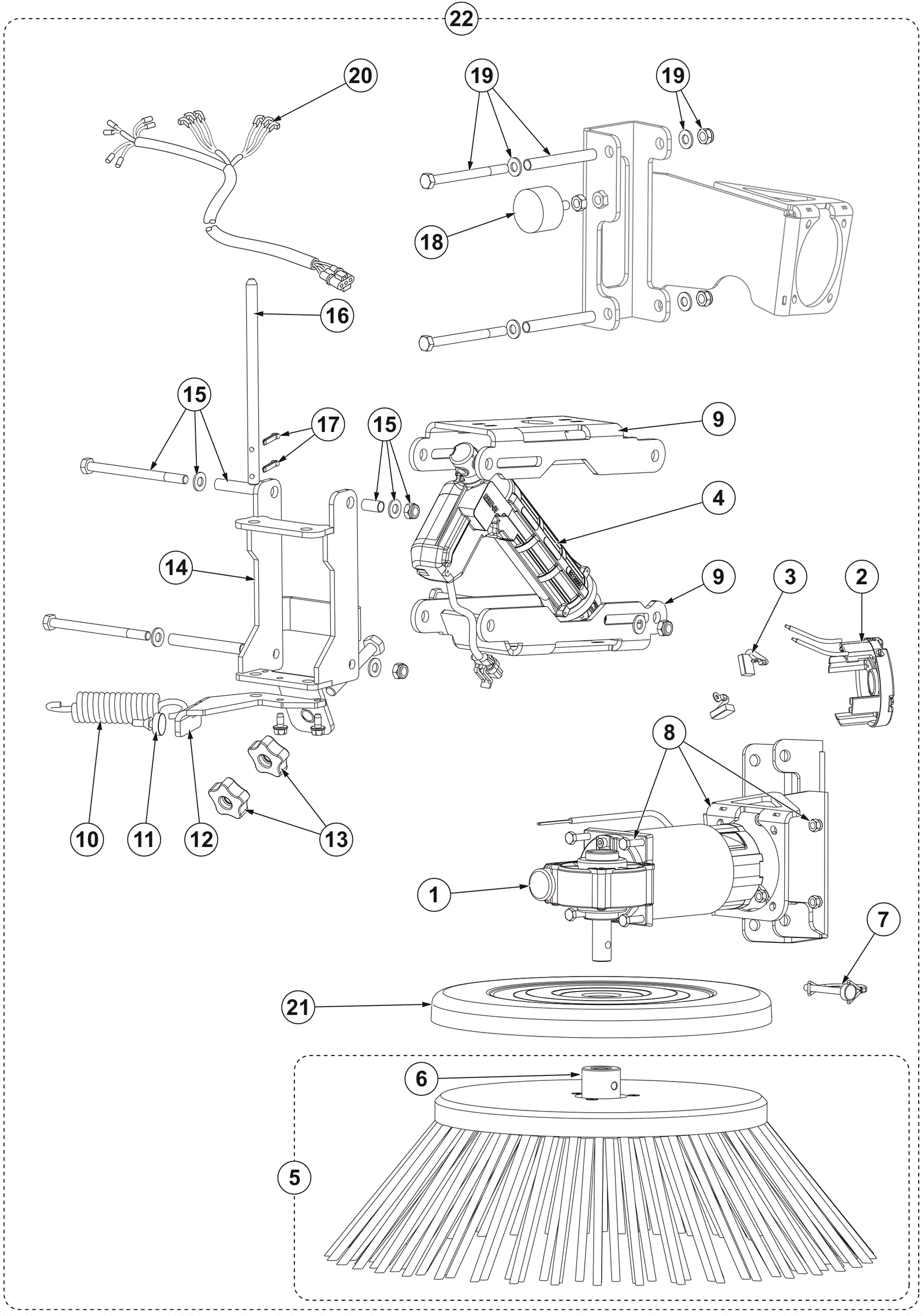

SW5500 Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1a 372-4010 Gearbox assembly $796.33 1 (left) usually ships 17-28 days
1b 472-1314 MOTOR GEARBOX 24VDC 120W PKD $949.84 1 (right) usually ships 17-28 days
2 472-1404 CAP F MOTOR BRUSHES $284.00 1 usually ships 17-28 days
3 472-1391 CARBON BRUSH 2 PCS SET $61.49 1 usually ships 17-28 days
4 472-1313 ACTUATOR 24V DC STRK 45MM PKD $429.26 1 usually ships 17-28 days
5a 472-1315 BROOM SIDE 302X500 BLACK $215.00 1 (includes 6) usually ships 17-28 days
5b 472-1346 BROOM SIDE 302X500 MIX STEEL $252.90 1 (includes 6) usually ships 17-28 days
5c 472-1390 BROOM SIDE 302X500 MIX 5 $238.01 1 (includes 6) usually ships 17-28 days
6 472-1341 HUB F SIDE BROOM PKD $95.66 1 usually ships 17-28 days
7 472-1388 PIN D.10 BROOM LOCKING PKD $29.23 1 usually ships 17-28 days
8a 372-0218 Gearbox bracket $268.90 1 (left) usually ships 17-28 days
8b 372-0210 Gearbox support bracket $276.45 1 (right) usually ships 17-28 days
9 372-0211 Side broom arm $124.83 2 usually ships 17-28 days
10 472-1389 SPRING PKD $78.58 1 usually ships 17-28 days
11 472-1355 PLUG ANTI VIBRATION D.8-D.20 1 $60.06 1 usually ships 17-28 days
12 372-0212 Stop plate $84.65 1 usually ships 17-28 days
13 472-1368 KNOB LOBES M10 FEMALE PKD $37.05 2 usually ships 17-28 days
14 372-0213 Side broom support $199.90 1 usually ships 17-28 days
15 372-0214 Side broom support hardware $104.82 1 usually ships 17-28 days
16 372-0215 Pin $77.29 1 usually ships 17-28 days
17 272-8306 Split pin 4 x 25 $51.21 1 usually ships 1-5 days
18 472-1375 BUMPER M8 40X25MM PKD $44.58 1 usually ships 17-28 days
19a 372-0219 Support bracket hardware $107.72 1 (left) usually ships 17-28 days
19b 372-0216 Support bracket hardware $107.72 1 (right) usually ships 17-28 days
20 372-0220 Side broom harness $120.33 1 (left) usually ships 17-28 days
21 372-0217 Protection cover $127.88 1 usually ships 17-28 days
22 372-0221 Left hand broom $2,454.80 1 (includes 1-21) (left) usually ships 17-28 days
