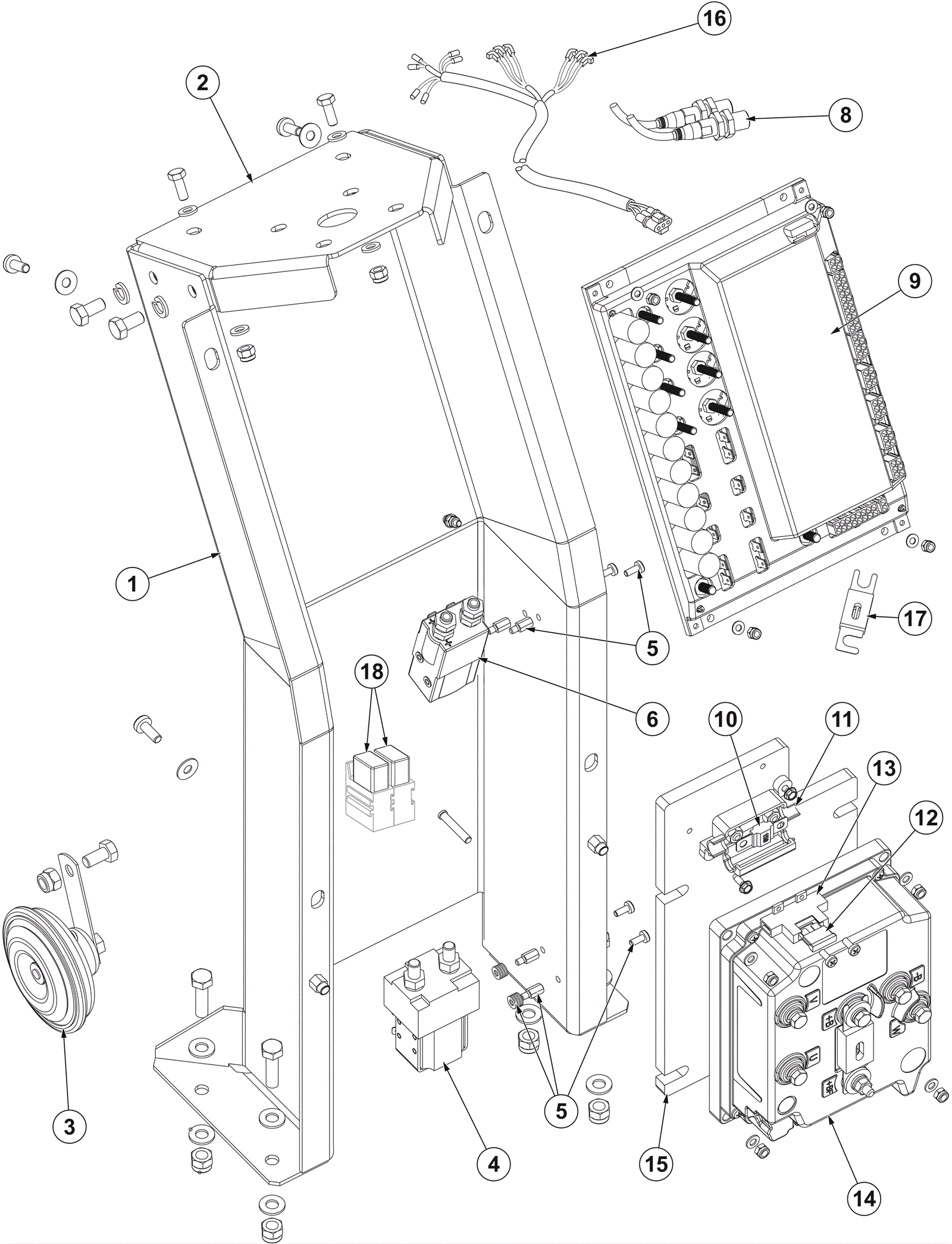

SW5500 Electrical Components Assembly

#PartDescriptionPriceReqNotesAvailability
1 372-0205 Steering column (black) $430.13 1 usually ships 17-28 days
2 372-0206 Steering column upper plate $107.72 1 usually ships 17-28 days
3 472-1366 HORN 24V PKD $74.21 1 usually ships 17-28 days
4 472-1303 CONTACTOR 24V 200A PKD $275.91 1 usually ships 17-28 days
5 372-0207 High contactor hardware $20.02 2 usually ships 17-28 days
6 472-1304 CONTACTOR 24V 100A PKD $206.91 1 usually ships 17-28 days
8 472-1382 SWITCH BACK UP PROXIMITY PKD $113.42 2 usually ships 17-28 days
9 572-3713 CONTROLLER MAIN MACHINE KIT $2,220.72 1 usually ships 17-28 days
10 472-1308 FUSE BOLT DOWN 150A PKD $27.64 1 usually ships 17-28 days
11 472-1099 FUSE HOLDER KIT $90.43 1 usually ships 17-28 days
12 272-8363 10amp fuse $31.10 1 usually ships 1-5 days
13 472-1367 HOLDER FUSE THERMOPL. UL 94-V0 $38.62 1 usually ships 17-28 days
14 472-1307 CONTROLLER DRIVE 24V 240A PKD $2,449.89 1 usually ships 17-28 days
15 372-0208 Heat sink plate $207.33 1 usually ships 17-28 days
16 372-0209 Steering column harness $222.97 1 usually ships 17-28 days
17 472-1412 FUSE BOLT-DOWN 160A $104.61 1 usually ships 17-28 days
18 272-8305 24V micro relay $40.08 2 usually ships 1-5 days
