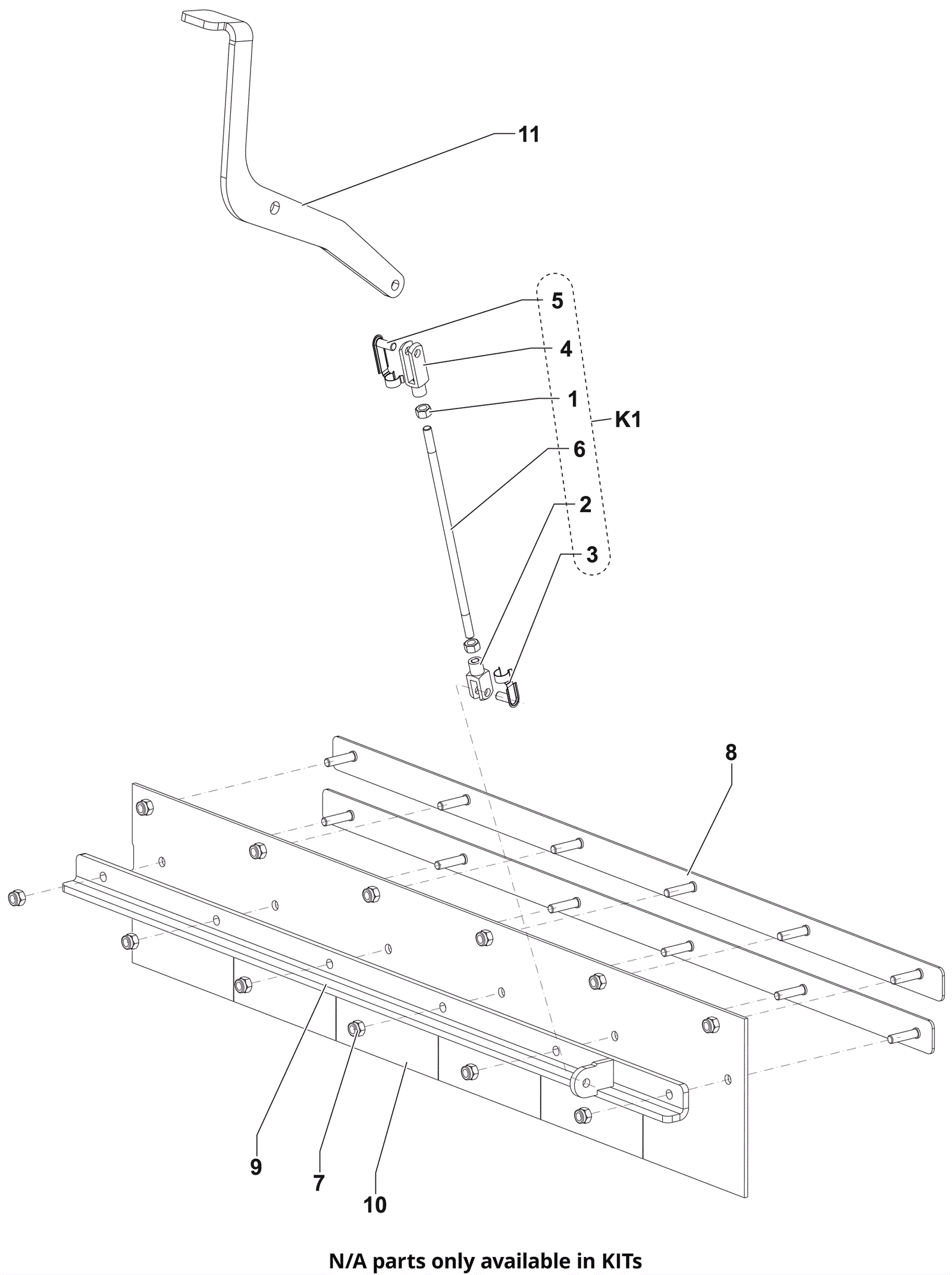

SW4000 Front Lift Flap Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1308 Nut M6-1 hex stainless steel $0.99 2 (included in KIT1) ships same day
2 N/A Not available Call for price 1 (M6 fork) (only available in KIT1) usually ships 3-26 days
3 N/A Not available Call for price 1 (M6 circlip) (only available in KIT1) usually ships 3-26 days
4 N/A Not available Call for price 1 (M6 fork) (only available in KIT1) usually ships 3-26 days
5 N/A Not available Call for price 1 (M6 circlip) (only available in KIT1) usually ships 3-26 days
6 N/A Not available Call for price 1 (flap control rod) (only available in KIT1) usually ships 3-26 days
7 472-3415 NUT LOCK HEX M6 ISO7040 10 PCS $51.21 1 usually ships 17-28 days
8 472-0857 PLATE FRONT SKIRT $48.99 2 usually ships 17-28 days
9 472-0933 FLAP METAL FRONT $74.21 1 usually ships 17-28 days
10 472-0956 SKIRT FRONT $97.09 1 usually ships 17-28 days
11 472-0900 PEDAL DEVICE SKIRT RISING $51.21 1 usually ships 17-28 days
KIT1 472-1020 ROD FOR FLAP KIT $375.16 1 (includes 1-6) usually ships 17-28 days
