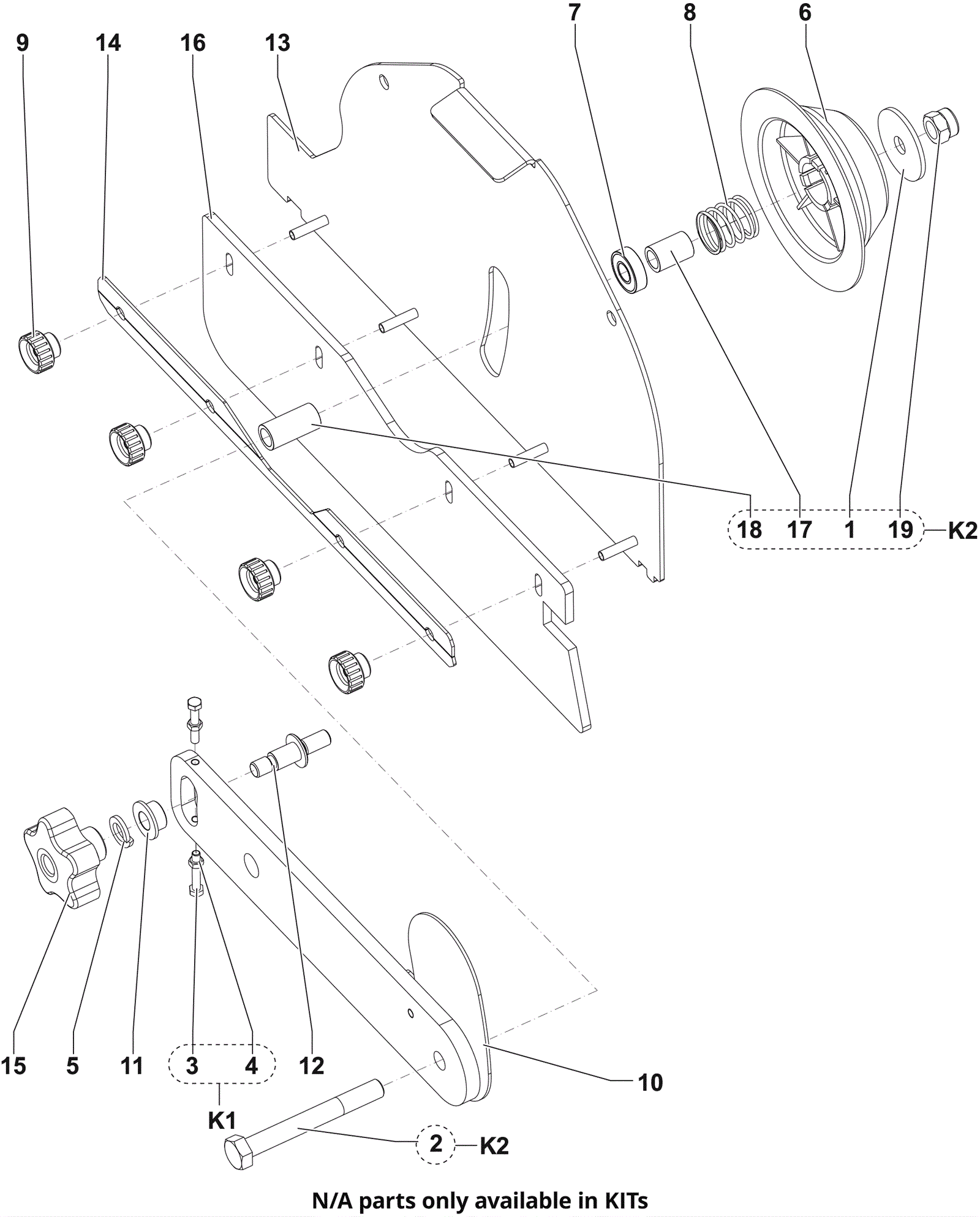

SW4000 Broom Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (washer) (only available in KIT2) usually ships 3-26 days
2 N/A Not available Call for price 1 (screw) (only available in KIT2) usually ships 3-26 days
3 N/A Not available Call for price 2 (screw M5 x 30 hex head) (only available in KIT1) usually ships 3-26 days
4 999-0740 Nut M5-.8 hex stainless steel $0.99 2 (included in KIT1) ships same day
5 472-1812 WASHER LOCK D.12 $12.31 1 usually ships 17-28 days
6 172-3798 Hub $65.97 1 usually ships 17-28 days
7 172-3799 Ball bearing $23.01 1 ships same day
8 172-3800 Spring $18.38 1 usually ships 17-28 days
9 472-1265 KNOB KNURLED M6 FEMALE PKD $12.31 4 usually ships 17-28 days
10 472-0896 LEVER MAIN BROOM SUPPORT $146.14 1 usually ships 17-28 days
11 472-0897 BUSHING SUPPORT LEVER $12.31 1 usually ships 17-28 days
12 472-0898 PIN MAIN BROOM ARM $12.31 1 usually ships 17-28 days
13 472-0899 HATCH MAIN BROOM $116.47 1 usually ships 17-28 days
14 472-0927 PLATE SIDE SKIRT FIXING $23.01 1 usually ships 17-28 days
15 472-0952 KNOB BLACK/YELLOW $12.31 1 usually ships 17-28 days
16a 472-1155 SKIRTS KIT $314.39 1 usually ships 17-28 days
16b 472-1027 SKIRTS NON MARKING KIT $467.19 1 (optional) usually ships 17-28 days
17 N/A Not available Call for price 1 (spacer) (only available in KIT2) usually ships 3-26 days
18 N/A Not available Call for price 1 (spacer) (only available in KIT2) usually ships 3-26 days
19 N/A Not available Call for price 1 (nut M12 self locking) (only available in KIT2) usually ships 3-26 days
KIT1 472-1083 HRDWR MAIN BRM LEVR SUPPT KIT $83.04 1 (includes 3-4) usually ships 17-28 days
KIT2 472-1084 HRDWR MAIN BRM IDLE HUB KIT $95.66 1 (includes 1-2, 17-19) usually ships 17-28 days
