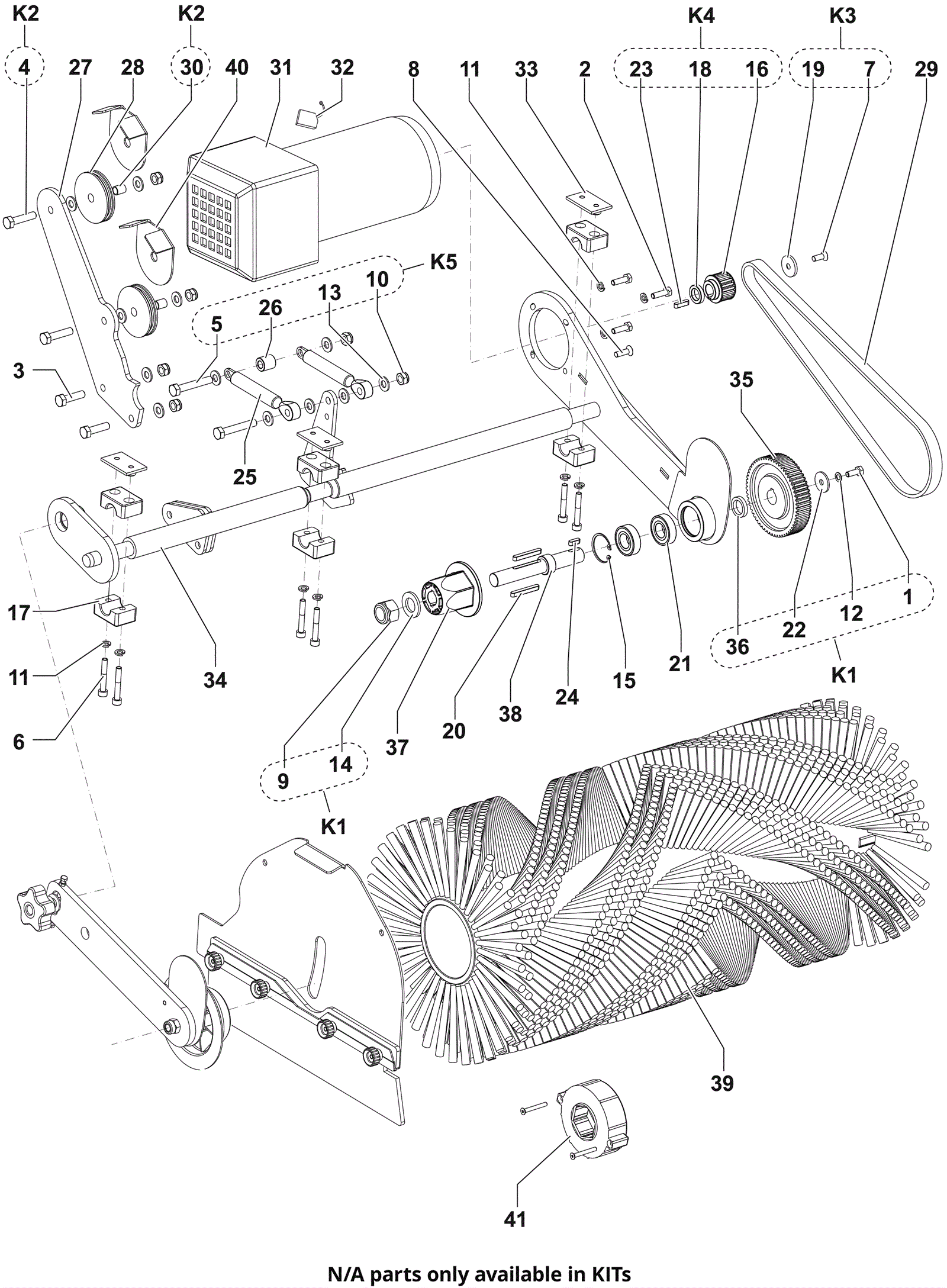

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$3.96
|
1 |
(included in KIT1) |
ships same day |
2 |
472-3416
|
SCREW M6X20 HEX HD ISO4017 10 |
$51.21
|
1 |
|
usually ships 12-18 days |
3 |
272-4743
|
Screw |
$13.17
|
2 |
|
usually ships 1-5 days |
4 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
$1.12
|
2 |
(included in KIT2) |
ships same day |
5 |
999-1692
|
Screw M8-1.25 x 50mm hex stainless steel |
$3.28
|
2 |
(included in KIT5) |
ships same day |
6 |
272-8405
|
Screw M6 X 40 mm cylindrical head |
$12.31
|
6 |
|
usually ships 1-5 days |
7 |
N/A
|
Not available |
Call for price
|
1 |
(screw M6 x 16 countersunk flat head) (only available in KIT3) |
usually ships 3-26 days |
8 |
172-4835
|
Screw M6 x 20mm |
$12.31
|
1 |
|
usually ships 12-18 days |
9 |
N/A
|
Not available |
Call for price
|
1 |
(nut M16-1.5) (only available in KIT1) |
usually ships 3-26 days |
10 |
N/A
|
Not available |
Call for price
|
6 |
(nut M8 self locking) (only available in KIT2, KIT3, KIT4, and KIT5) |
usually ships 3-26 days |
11 |
172-4822
|
Washer M6 split |
$10.85
|
9 |
|
usually ships 1-5 days |
12 |
999-1261
|
Washer M6 flat stainless steel |
$0.99
|
1 |
(included in KIT1) |
ships same day |
13 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
12 |
(included in KIT2, KIT3, KIT4, and KIT5) |
ships same day |
14 |
N/A
|
Not available |
Call for price
|
1 |
(washer) (only available in KIT1) |
usually ships 3-26 days |
15 |
472-1816
|
RING RET. INT. |
$9.26
|
1 |
|
usually ships 12-18 days |
16 |
N/A
|
Not available |
Call for price
|
1 |
(pulley) (only available in KIT4) |
usually ships 3-26 days |
17 |
272-8253
|
Collar pipe fixing |
$19.98
|
3 |
|
usually ships 1-5 days |
18 |
N/A
|
Not available |
Call for price
|
1 |
(spacer) (only available in KIT4) |
usually ships 3-26 days |
19 |
N/A
|
Not available |
Call for price
|
1 |
(spacer) (only available in KIT3) |
usually ships 3-26 days |
20 |
472-0508
|
KEY |
$69.01
|
2 |
|
usually ships 12-18 days |
21 |
172-7074
|
Ball Bearing |
$72.63
|
2 |
|
usually ships 12-18 days |
22 |
N/A
|
Not available |
Call for price
|
1 |
(washer) (only available in KIT1) |
usually ships 3-26 days |
23 |
N/A
|
Not available |
Call for price
|
1 |
(key) (only available in KIT4) |
usually ships 3-26 days |
24 |
272-0812
|
Key 5 x 5 x 15 |
$13.17
|
1 |
|
usually ships 1-5 days |
25 |
472-0765
|
SPRING GAS 40 KG 2 |
$64.53
|
2 |
|
usually ships 12-18 days |
26 |
N/A
|
Not available |
Call for price
|
1 |
(spacer) (only available in KIT5) |
usually ships 3-26 days |
27 |
472-1228
|
BRACKET PULLEYS SUPPORT PKD |
$140.92
|
1 |
|
usually ships 12-18 days |
28 |
472-0915
|
PULLEY BROOM LEVER |
$12.31
|
2 |
|
usually ships 12-18 days |
29 |
472-1285
|
LEVER MAIN BROOM PKD |
$55.56
|
1 |
|
usually ships 12-18 days |
30 |
N/A
|
Not available |
Call for price
|
2 |
(pulley bushing) (only available in KIT2) |
usually ships 3-26 days |
31 |
472-0944
|
MOTOR MAIN BROOM 24V 600W M4 |
$1,990.97
|
1 |
|
usually ships 12-18 days |
32 |
272-0845
|
Carbon brush kit |
$176.52
|
1 |
|
usually ships 1-5 days |
33 |
472-1039
|
PLATE THREADED |
$9.26
|
3 |
|
usually ships 12-18 days |
34 |
472-1040
|
SHAFT FOR MAIN BROOM |
$681.45
|
1 |
|
usually ships 12-18 days |
35 |
472-1224
|
PULLEY HTD KIT |
$261.02
|
1 |
|
usually ships 12-18 days |
36 |
N/A
|
Not available |
Call for price
|
1 |
(spacer) (only available in KIT1) |
usually ships 3-26 days |
37 |
472-1380
|
HUB MAIN BROOM PKD |
$57.16
|
1 |
|
usually ships 12-18 days |
38a |
472-1221
|
PIN MAIN BROOM PKD |
$134.98
|
1 |
|
usually ships 12-18 days |
38b |
372-0145
|
Belt update kit |
$189.19
|
1 |
(before SN 3810144000046) |
usually ships 12-18 days |
39a |
472-0856
|
MAIN BROOM 340X700MM PPL |
$229.88
|
1 |
|
usually ships 12-18 days |
39b |
472-0852
|
BROOM MAIN 340X700MM MIX 5 |
$337.39
|
1 |
(optional) |
usually ships 12-18 days |
39c |
472-1025
|
MAIN BROOM 340X700 MIX STEEL |
$245.37
|
1 |
(optional) |
usually ships 12-18 days |
40 |
472-1226
|
BRACKET PROTECTION PULLEY KIT |
$118.65
|
1 |
|
usually ships 12-18 days |
41 |
372-0146
|
Main broom hub |
$74.36
|
1 |
|
usually ships 12-18 days |
KIT1 |
472-1078
|
HARDWARE MAIN BROOM HUB KIT |
$84.49
|
1 |
(includes 1, 9, 12, 14, 22, 36) |
usually ships 12-18 days |
KIT2 |
472-1079
|
HARDWARE MAIN BROOM PULLEY KIT |
$87.54
|
1 |
(includes 4, 10, 13, 30) |
usually ships 12-18 days |
KIT3 |
472-1080
|
HRDWR MAIN BR. MOTR PULLY KIT |
$86.09
|
1 |
(includes 7, 10, 13, 19) |
usually ships 12-18 days |
KIT4 |
472-1081
|
PULLEY MAIN BR. MOTOR KIT |
$106.78
|
1 |
(includes 10, 13, 16, 18, 23) |
usually ships 12-18 days |
KIT5 |
472-1082
|
HARDWARE FOR GAS SPRING KIT |
$87.54
|
1 |
(includes 5, 10, 13, 26) |
usually ships 12-18 days |
