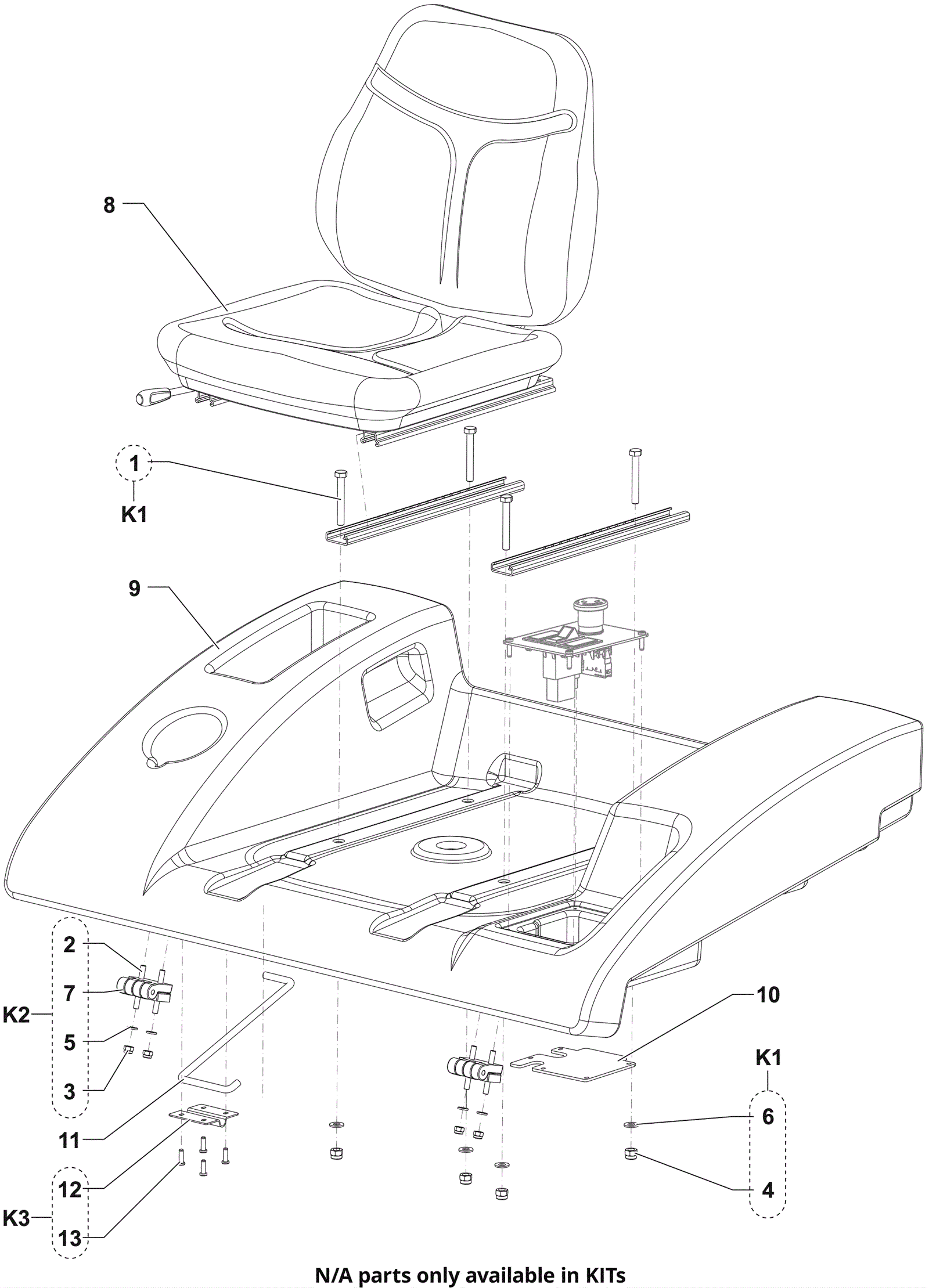

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-1368
|
Screw M8-1.25 x 60mm hex head stainless steel |
$3.41
|
4 |
(included in KIT1) |
ships same day |
2 |
N/A
|
Not available |
Call for price
|
8 |
(screw M6 x 20 cap head) (only available in KIT2) |
usually ships 3-26 days |
3 |
N/A
|
Not available |
Call for price
|
4 |
(nut M6 self locking) (only available in KIT2) |
usually ships 3-26 days |
4 |
N/A
|
Not available |
Call for price
|
4 |
(nut M8 self locking) (only available in KIT1) |
usually ships 3-26 days |
5 |
999-1117
|
Washer M6 split lock stainless steel |
$0.99
|
4 |
(included in KIT2) |
ships same day |
6 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
4 |
(included in KIT1) |
ships same day |
7 |
270-0357
|
Hinge |
$60.84
|
2 |
(included in KIT2) |
usually ships 13-18 days |
8 |
472-1365
|
SEAT PKD |
$1,763.86
|
1 |
|
usually ships 13-18 days |
9 |
472-0855
|
SUPPORT SEAT |
$673.94
|
1 |
|
usually ships 13-18 days |
10 |
472-1037
|
HARNESS COVERAGE |
$12.89
|
1 |
|
usually ships 13-18 days |
11 |
472-0928
|
ROD BONNET |
$61.37
|
1 |
|
usually ships 13-18 days |
12 |
N/A
|
Not available |
Call for price
|
1 |
(safety bar support) (only available in KIT3) |
usually ships 3-26 days |
13 |
N/A
|
Not available |
Call for price
|
4 |
(screw 5 x 16 pan head) (only available in KIT3) |
usually ships 3-26 days |
KIT1 |
472-1069
|
HARDWARE FOR SEAT KIT |
$90.13
|
1 |
(includes 1, 4, 6) |
usually ships 13-18 days |
KIT2 |
472-1067
|
HINGE FOR BONNET KIT |
$114.06
|
1 |
(includes 2-3, 5, 7) |
usually ships 13-18 days |
KIT3 |
472-1068
|
SUPPORT FOR SAFETY ROD KIT |
$142.86
|
1 |
(includes 12-13) |
usually ships 13-18 days |
