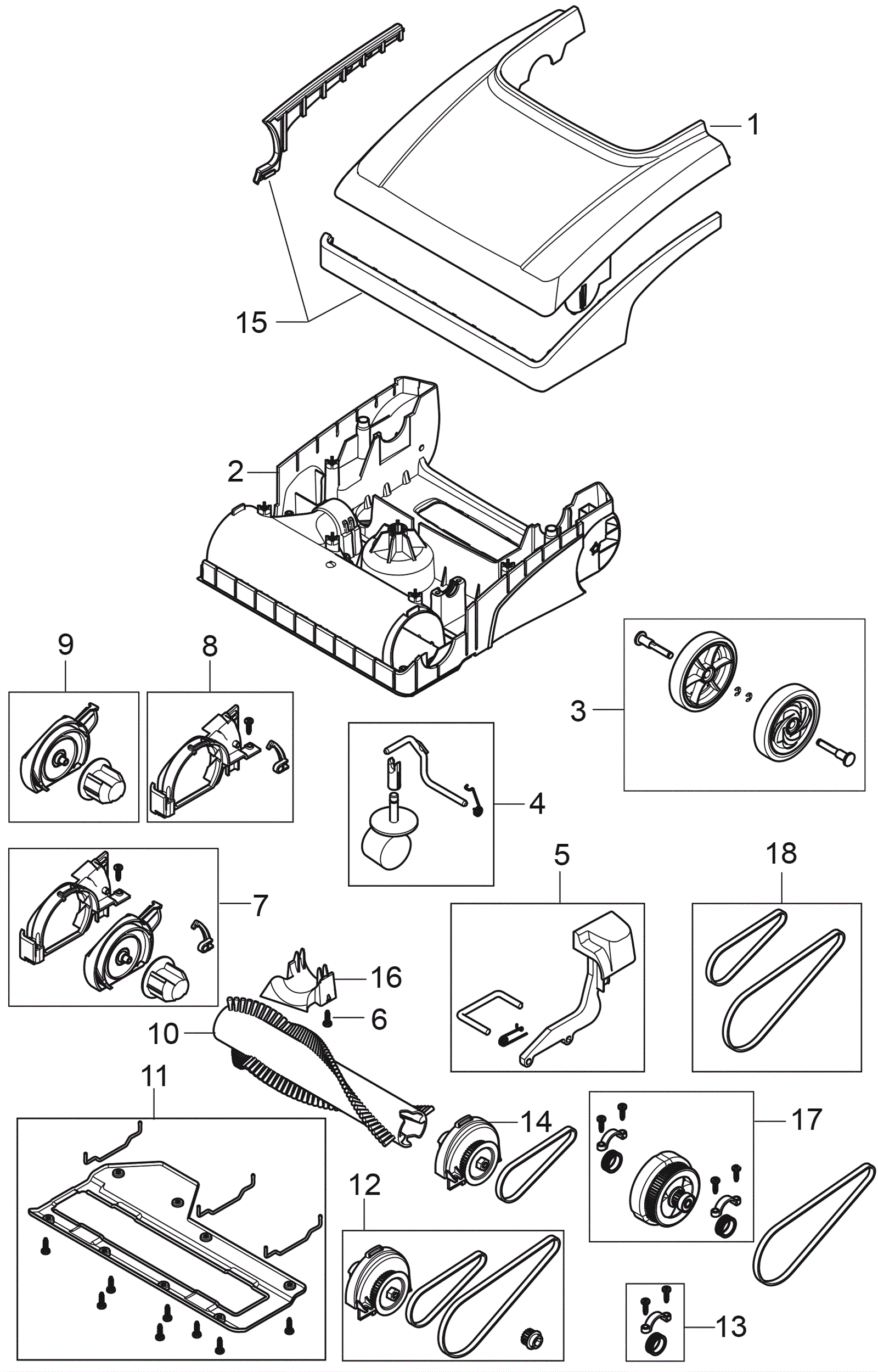

Base Assembly

#PartDescription ReqNotesAvailability
1a 272-3701 12 inch base cover 1
1b 272-3715 15 inch base cover 1
2a 272-3702 12 inch chassis 1
2b 272-3716 15 inch chassis 1
3 472-0346 VU500 WHEEL SHAFT KIT 1
4 272-3703 Caster kit 1
5 272-3704 Pedal kit 1
6 172-3861 Screw 1
7 272-3705 Brush cover assembly 1
8 272-3706 Brush frame with clip 1
9 272-3707 Brush cover with bearing 1
10a 272-3708 12 inch brush roller 1
10b 272-3717 15 inch brush roller 1
11a 272-3709 12 inch shoe kit 1
11b 272-3718 15 inch shoe kit 1
12 272-3710 Bearing block with belts 1
13 272-3711 Clamp and gasket kit 1
14 272-9214 Bearing 1
15a 272-3712 12 inch bumper 1
15b 272-3719 15 inch bumper 1
16 272-3713 Lower hose clamp 1
17 272-3714 Clutch assembly 1
18 372-4001 Belt kit 1
