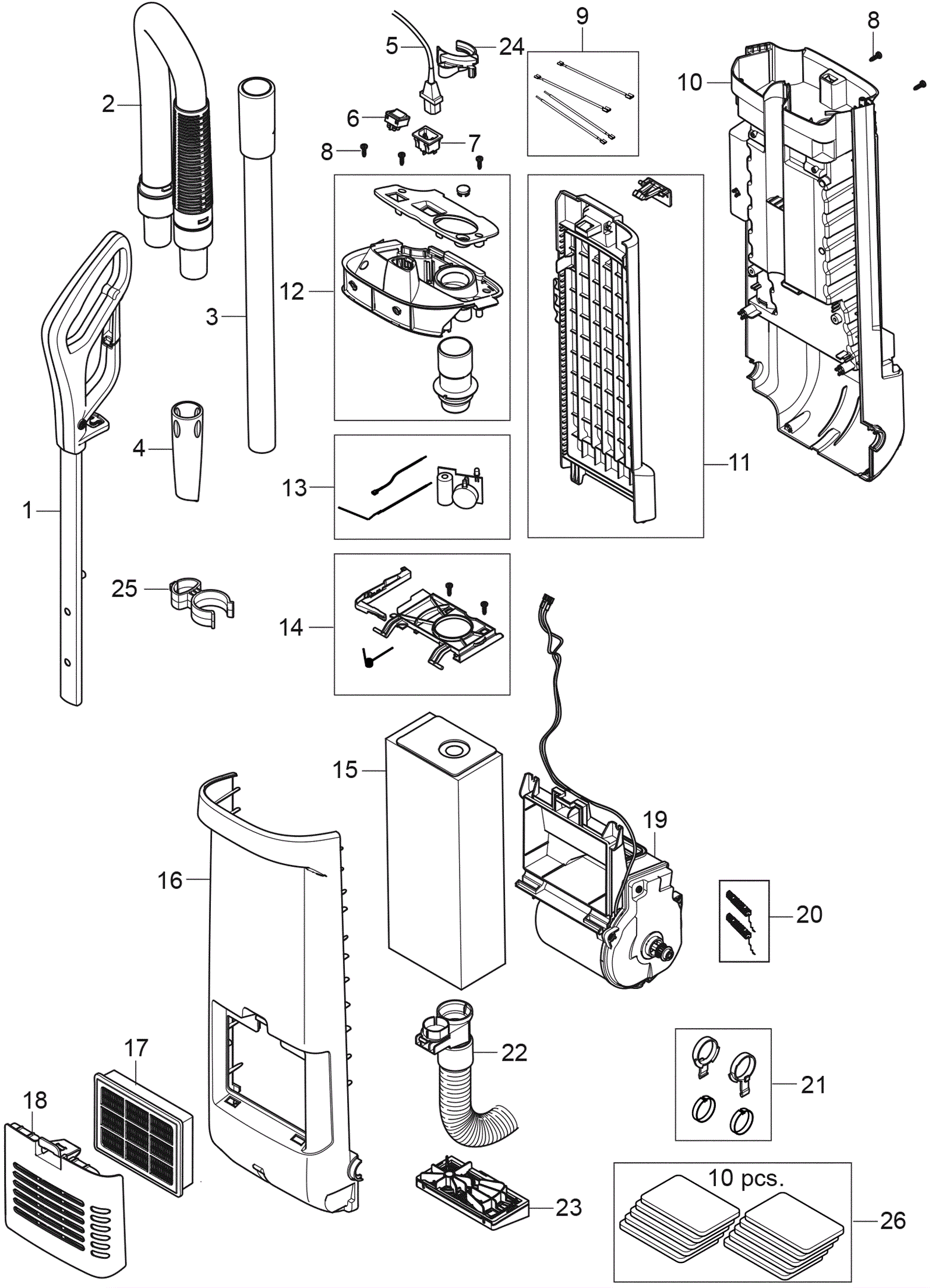

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-3689
|
Handle assembly |
1 |
|
|
2 |
272-9256
|
Stretchable hose |
1 |
|
|
3 |
272-9255
|
Extension tube |
1 |
|
|
4 |
272-9254
|
Crevice nozzle |
1 |
|
|
5a |
272-3690
|
Removable cord 33 foot |
1 |
(12 inch) |
|
5b |
272-3691
|
Removable cord 50 foot |
1 |
(15 inch) |
|
6 |
272-8571
|
Switch |
1 |
|
|
7 |
272-3692
|
Plug socket |
1 |
|
|
8 |
172-3861
|
Screw |
1 |
|
|
9 |
272-3693
|
Internal wiring kit |
1 |
|
|
10 |
272-3694
|
Rear cover |
1 |
|
|
11 |
272-3695
|
Lid assembly |
1 |
|
|
12 |
272-3696
|
Top cover kit |
1 |
|
|
13 |
272-7197
|
Bag light circuit board |
1 |
|
|
14 |
272-9251
|
Dust bag holder kit |
1 |
|
|
15a |
272-6608
|
Paper vacuum bags (pkg of 10 with 2 prefilters) |
1 |
(OEM) |
|
15b |
991-2132
|
Paper vacuum bags (pkg of 10 with 2 prefilters) |
1 |
(NON-OEM) |
|
16 |
272-3697
|
Front cover |
1 |
|
|
17a |
272-9246
|
HEPA filter |
1 |
(OEM) |
|
17b |
991-6032
|
HEPA filter |
1 |
(NON-OEM) |
|
18 |
272-3698
|
Exhaust cover |
1 |
|
|
19 |
272-9204
|
120V vacuum motor |
1 |
|
|
20 |
272-9205
|
Carbon brush (pkg of 2) |
1 |
|
|
21 |
272-9245
|
Joint assembly |
1 |
|
|
22 |
272-9258
|
Adapter hose assembly |
1 |
|
|
23 |
572-9232
|
Pre-filter holder kit with 1 pre-filter |
1 |
|
|
24 |
272-3699
|
Upper wand clip |
1 |
|
|
25 |
272-3700
|
Tool clip kit |
1 |
|
|
26 |
181-1184
|
Scented pad (pkg of 10) (OBSOLETE) |
1 |
|
|
