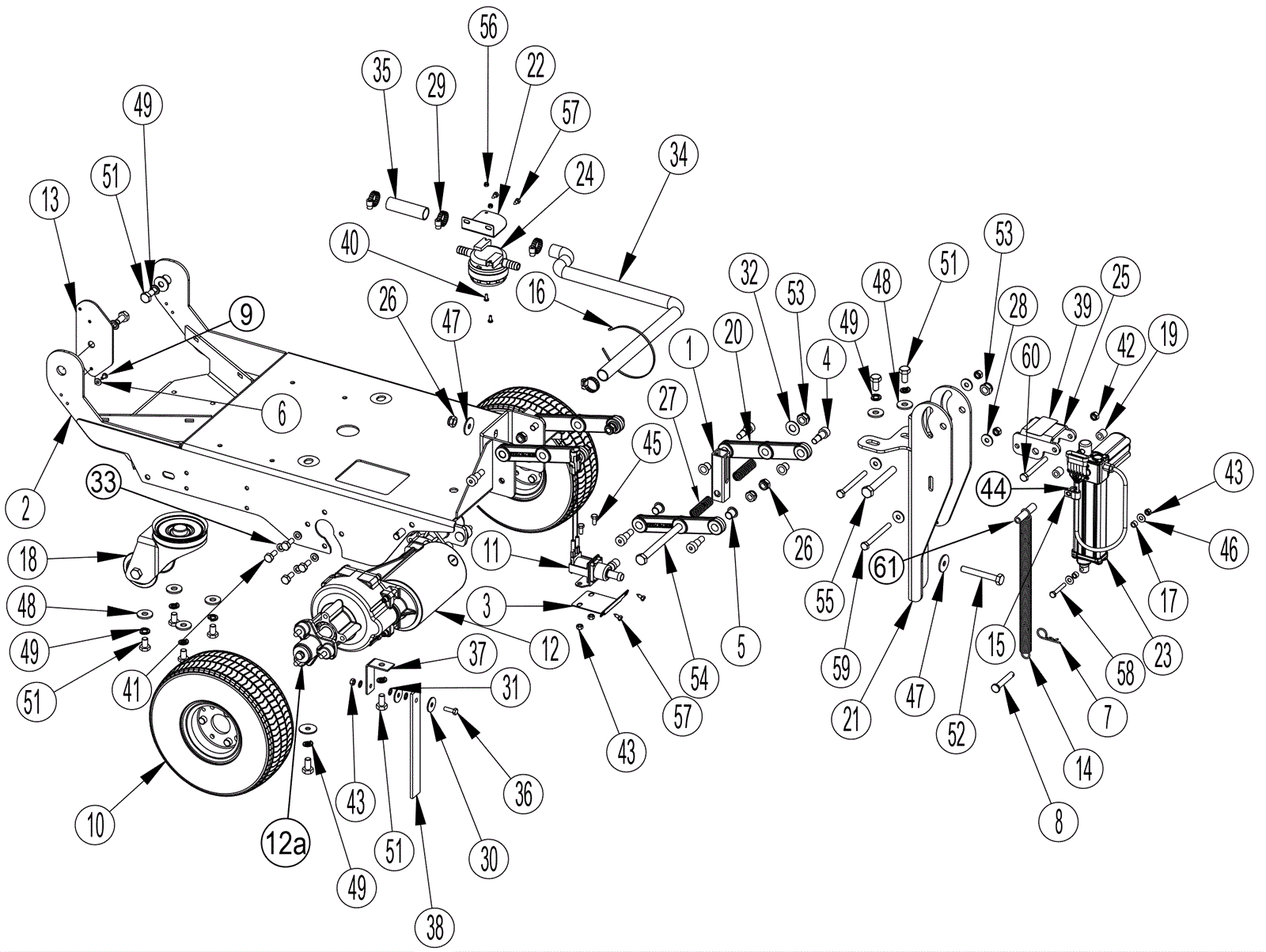

SC750 Chassis Assembly - Cylindrical (Before August 2013)

#PartDescriptionPriceReqNotesAvailability
1 272-9812 Tube $19.98 1 usually ships 17-28 days
2 272-9813 Chassis weldment $643.69 1 ships same day
3 270-0265 Solution valve bracket $12.31 1 usually ships 1-5 days
4 472-3577 SCR-SOC SHD M12X16MMX M10-1.50 $5.39 8 usually ships 17-28 days
5 270-0288 Flanged bushing $9.98 8 usually ships 17-28 days
6 999-1862 Washer #10 flat SAE stainless steel $0.99 1 ships same day
7 172-2001 Hair cotter pin $10.85 1 usually ships 17-28 days
8 172-3484 Clevis pin $12.31 1 usually ships 1-5 days
9 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 1 ships same day
10 272-9814 Tire $181.01 2 ships same day
11 272-9815 Solenoid valve assembly $199.52 1 usually ships 17-28 days
12a 272-9820 Flange kit $127.61 2 (includes 12b) usually ships 17-28 days
12b 272-9820 Flange kit $127.61 1 usually ships 17-28 days
12c 272-9970 Transaxle motor kit $750.46 1 (optional) (includes 12d) usually ships 17-28 days
12d 372-1624 Carbon brush $31.10 4 usually ships 17-28 days
13 272-9817 Connector bracket $13.76 1 usually ships 1-5 days
14 272-9821 Extension spring $29.23 1 usually ships 1-5 days
15 172-9530 Cable clamp $12.31 1 usually ships 1-5 days
16 272-7413 Cable tie $12.31 1 usually ships 1-5 days
17 270-0227 Spacer (OBSOLETE) $13.17 2 usually ships 17-28 days
18 272-9818 Rear caster $111.99 1 ships same day
19 270-0258 Spacer $13.17 2 usually ships 1-5 days
20 472-7661 Lever kit $31.10 4 usually ships 17-28 days
21 270-0261 Bracket $88.99 1 usually ships 1-5 days
22 270-0267 Filter bracket $12.31 1 usually ships 17-28 days
23 272-3543 Actuator $995.83 1 usually ships 17-28 days
24a 272-3516 Water filter $13.76 1 ships same day
24b 270-0256 Lever $23.01 1 (optional) usually ships 1-5 days
25 270-0256 Lever $23.01 1 usually ships 1-5 days
26 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 9 ships same day
27 270-0287 Spring $13.17 2 usually ships 17-28 days
28 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
29 997-2002 Hose clamp #6 $2.15 4 ships same day
30 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 2 ships same day
31 999-0017 Washer 1/4 external star lock $0.99 3 ships same day
32 170-5602 Washer $8.07 1 ships same day
33 999-0028 Washer 5/16 split lock plain finish $0.99 8 ships same day
34 270-0263 25 inch hose (clear) $12.31 1 usually ships 17-28 days
35 270-0270 3 inch hose (clear) $10.85 1 usually ships 1-5 days
36 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 1 ships same day
37 270-0273 Strap bracket $12.31 1 usually ships 17-28 days
38 170-7146 Static strap $13.76 1 usually ships 17-28 days
39 170-0226 Moving warning decal $16.95 1 usually ships 1-5 days
40 270-0269 Screw M4-.7 x 10mm $11.57 2 usually ships 17-28 days
41 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 8 ships same day
42 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 9 ships same day
43 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 usually ships 12-18 days
44 272-8931 Screw M6-1 x 10mm pan head $13.17 1 usually ships 1-5 days
45 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 2 ships same day
46 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
47 999-0716 Washer 3/8 x 1 1/4 fender $0.99 3 ships same day
48 999-0006 Washer 3/16 flat zinc plated $0.99 7 ships same day
49 999-0671 Washer M10 split lock plain finish $0.99 10 ships same day
51 472-3486 SCR-HEX M10-1.5 X 20MM $12.31 10 usually ships 17-28 days
52 999-9115 Screw M10-1.5 x 75mm hex head stainless steel $4.75 1 usually ships 1-5 days
53 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
54 270-0297 Screw M12-1.75 x 160mm hex head $5.39 1 usually ships 17-28 days
55 270-0255 Screw M12-1.75 x 90mm hex head $12.31 1 usually ships 1-5 days
56 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
57 270-0264 Screw M5 x 12mm hex head self-tapping $10.85 4 usually ships 1-5 days
58 999-1147 Bolt M6-1 x 40mm hex head stainless steel $0.99 1 ships same day
59 272-9819 Screw M8-1.25 x 90mm hex head $12.31 2 usually ships 1-5 days
60 999-6736 Bolt M8-1.25 x 75mm hex head stainless steel $4.91 1 ships same day
61 272-9822 Spacer $12.31 1 usually ships 1-5 days
