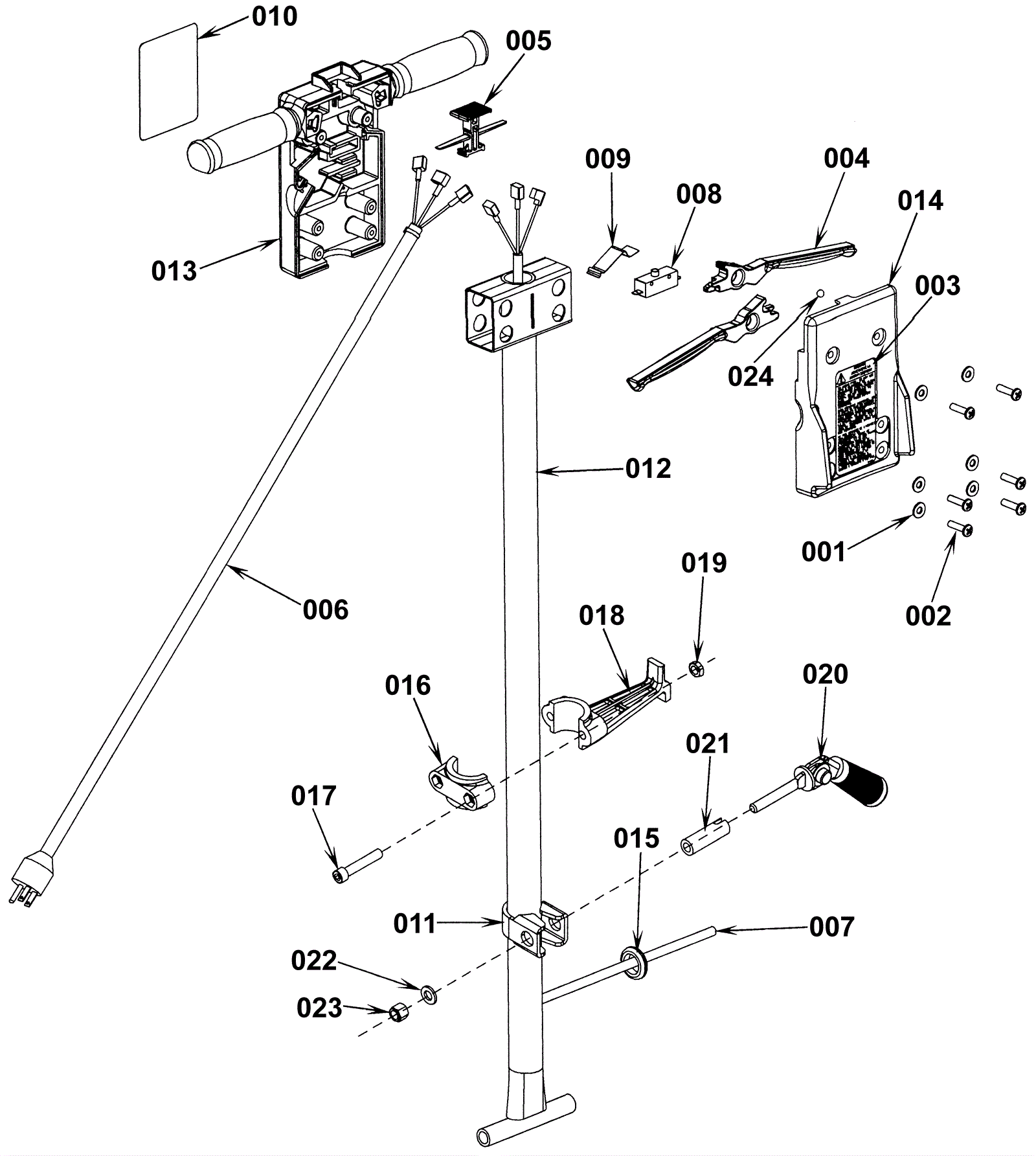

SD 130 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
2 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 6 ships same day
3 172-5020 Warning decal (OBSOLETE) $13.59 1 usually ships 16-41 days
4 172-4663 Handle lever (OBSOLETE) $31.51 2 usually ships 16-41 days
5 172-3091 Locking button $13.70 1 ships same day
6 192-8472 14/3 replacement power cord 50 foot $222.95 1 usually ships 1-5 days
7 181-1132 Cord assembly 14/3 (OBSOLETE) $15.04 1 usually ships 1-5 days
8 172-3093 Switch $13.70 1 ships same day
9 172-3100 Spring plate $8.20 1 ships same day
10 172-3102 Logo decal (OBSOLETE) $13.59 1 usually ships 1-5 days
11 172-0885 Handle lock clamp $47.75 1 usually ships 16-41 days
12 172-0886 Handle weldment (OBSOLETE) $91.18 1 usually ships 1-5 days
13 172-0887 Front handle $190.31 1 usually ships 16-41 days
14 172-0888 Back handle $65.69 1 usually ships 1-5 days
15 181-0397 Grommet $10.90 1 usually ships 1-5 days
16 172-0890 Cord hook cap (OBSOLETE) $119.84 1 usually ships 16-41 days
17 999-0446 Screw 5/16-18 x 1 3/4 round head slotted zinc plated $0.99 2 ships same day
18 172-0891 Cord hook body $26.51 1 usually ships 16-41 days
19 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
20 181-0565 Cam lock assembly $149.70 1 usually ships 16-41 days
21 172-0892 Spacer guide (OBSOLETE) $15.10 1 usually ships 16-41 days
22 181-0015 Washer flat $8.20 1 usually ships 16-41 days
23 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
24 172-3103 1/4 ball bearing stainless steel $10.90 1 usually ships 16-41 days
