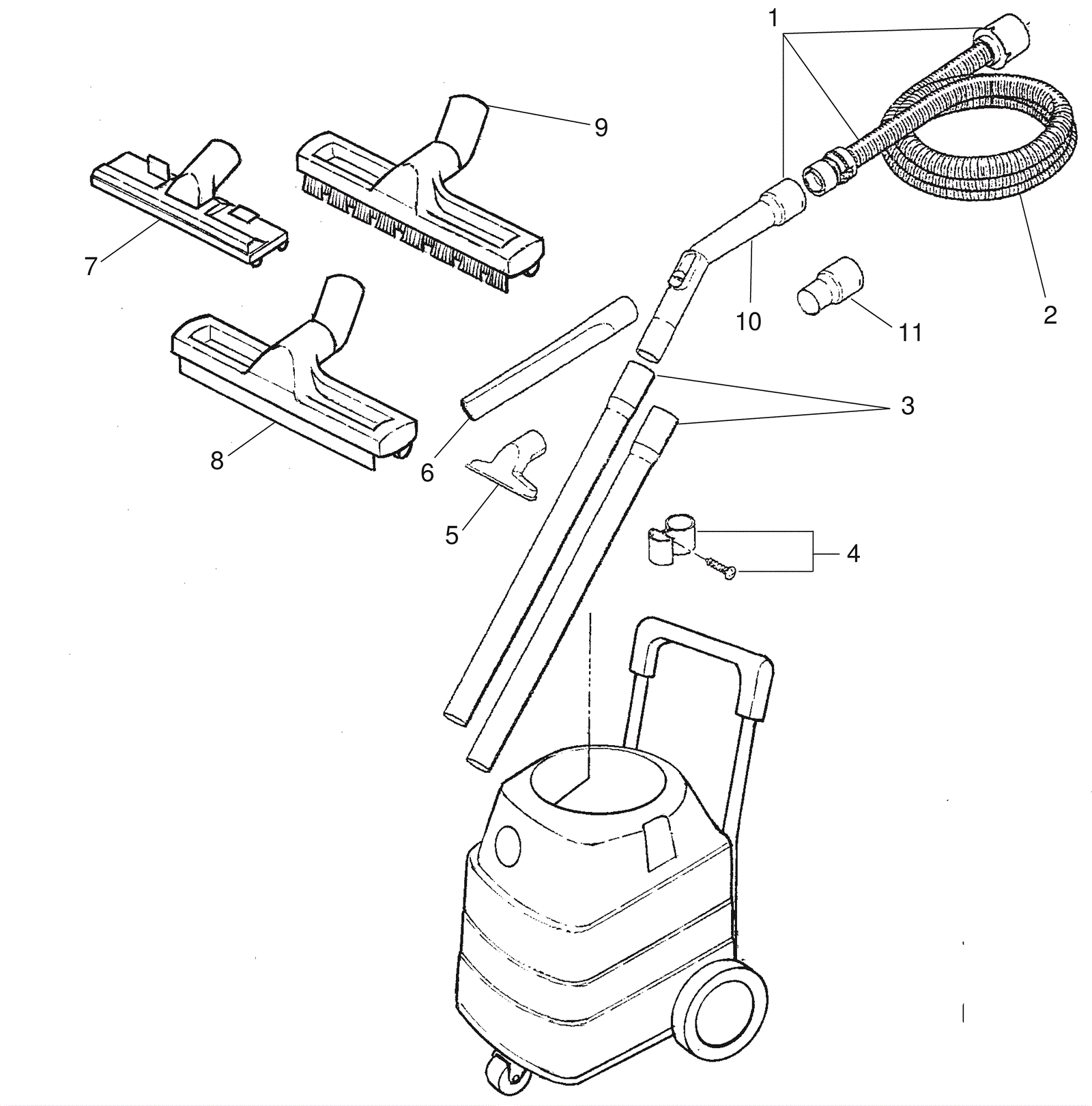

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
572-5028
|
Hand hose tube |
1 |
(15 and 20 gallon) |
|
1b |
170-3619
|
Hose assembly |
1 |
(7 gallon) |
|
2a |
572-5028
|
Hand hose tube |
1 |
(15 and 20 gallon) |
|
2b |
170-3620
|
Vac hose 2 meters |
1 |
(7 gallon) |
|
3a |
170-3621
|
Plastic extension wands 2pc |
2 |
(7 gallon) |
|
3b |
572-3997
|
Suction tube |
2 |
(15 and 20 gallon) |
|
4 |
170-3623
|
Wand holder (OBSOLETE) |
1 |
|
|
5 |
170-3624
|
Universal nozzle |
1 |
|
|
6 |
170-3625
|
Crevice tool 12in |
1 |
|
|
7 |
572-4005
|
Floor nozzle |
1 |
|
|
8 |
170-3627
|
Squeegee |
1 |
|
|
9 |
170-3628
|
Dry floor nozzle (OBSOLETE) |
1 |
|
|
10 |
170-3629
|
Curved wand |
1 |
|
|
11 |
170-3630
|
Hose wand adapter 1 1/2in |
1 |
|
|
