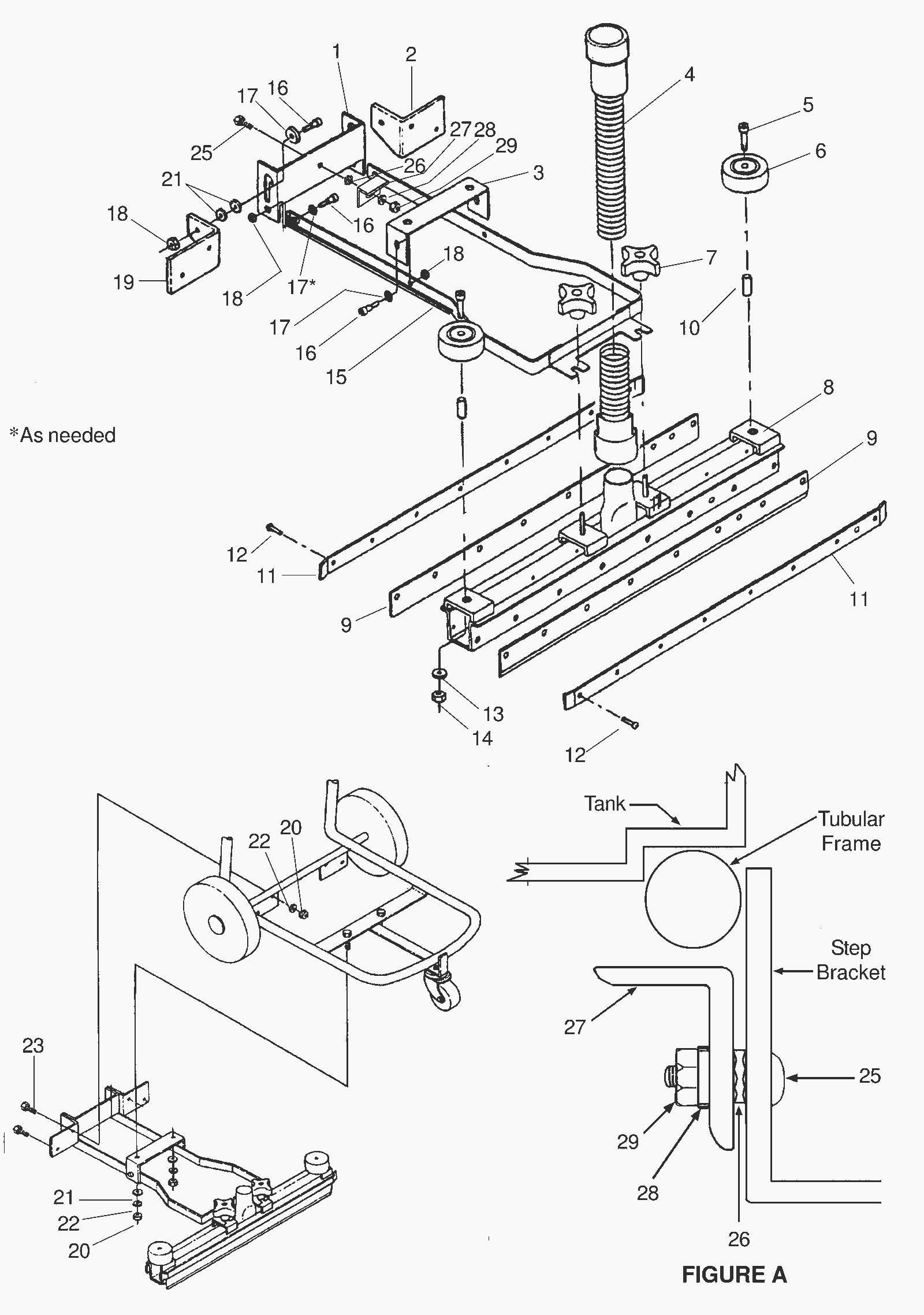

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-3602
|
Squeegee lift pedal (OBSOLETE) |
1 |
|
|
2 |
170-3603
|
Left pedal support (OBSOLETE) |
1 |
|
|
3 |
170-3604
|
Lift support (OBSOLETE) |
1 |
|
|
4 |
170-3605
|
Squeegee hose (OBSOLETE) |
1 |
|
|
5 |
N/A
|
Not available |
2 |
(screw, shoulder hex) |
|
6 |
170-0165
|
Wheel (OBSOLETE) |
2 |
|
|
7 |
170-4587
|
Knob (OBSOLETE) |
2 |
|
|
8 |
170-3608
|
Squeegee frame weldment (OBSOLETE) |
1 |
|
|
9 |
170-3609
|
Squeegee blade ribbed urethane |
2 |
|
|
10 |
170-3610
|
Wheel bushing (OBSOLETE) |
2 |
|
|
11 |
170-3611
|
Squeegee blade retainer (OBSOLETE) |
2 |
|
|
12 |
N/A
|
Not available |
18 |
(screw, phillips) |
|
13 |
N/A
|
Not available |
2 |
(washer) |
|
14 |
N/A
|
Not available |
2 |
(nut,lock) |
|
15 |
170-3612
|
Squeegee lift weldment (OBSOLETE) |
1 |
|
|
16 |
N/A
|
Not available |
6 |
(bolt) |
|
17 |
N/A
|
Not available |
6 |
(washer) |
|
18 |
N/A
|
Not available |
6 |
(nut, lock) |
|
19 |
170-3613
|
Right pedal support (OBSOLETE) |
1 |
|
|
20 |
N/A
|
Not available |
6 |
(nut, hex) |
|
21 |
N/A
|
Not available |
6 |
(washer) |
|
22 |
N/A
|
Not available |
6 |
(washer, lock) |
|
23 |
N/A
|
Not available |
6 |
(screw, hex) |
|
24 |
170-3614
|
Squeegee assembly (OBSOLETE) |
1 |
|
|
25 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
1 |
|
|
26 |
N/A
|
Not available |
1 |
(washer, star) |
|
27 |
170-3616
|
Bracket (OBSOLETE) |
1 |
|
|
28 |
N/A
|
Not available |
1 |
(washer, flat) |
|
29 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
