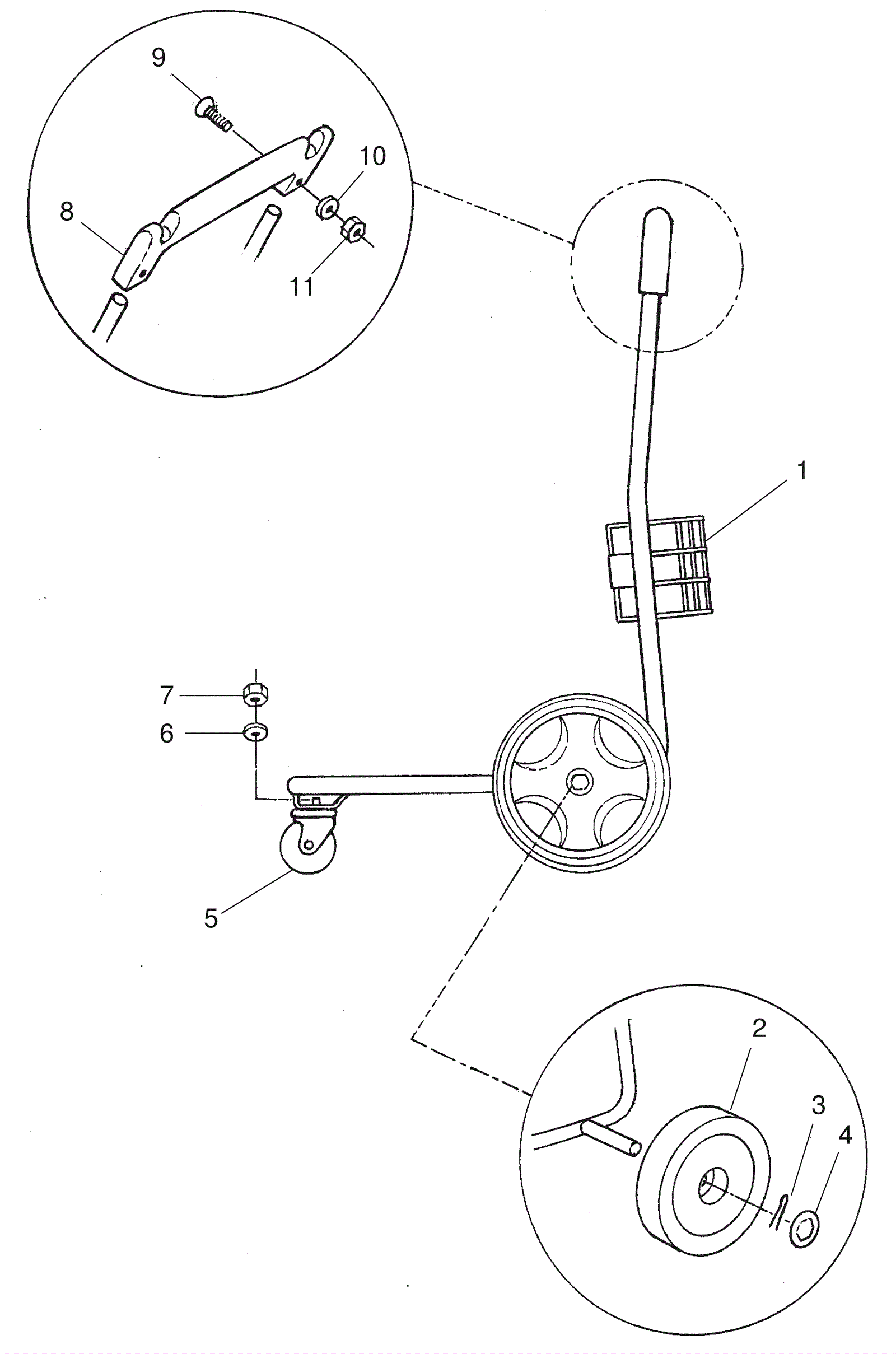

Frame Assembly - 15 and 20 gallon

#PartDescription ReqNotesAvailability
1a 170-3595 Frame assembly (OBSOLETE) 1 (15 gallons)
1b 170-3596 Frame assembly (OBSOLETE) 1 (20 gallons)
2 170-3597 Wheel (OBSOLETE) 2
3 170-3598 Frame retainer (OBSOLETE) 2
4 170-3599 Cover retainer (OBSOLETE) 2
5 170-3600 Caster (OBSOLETE) 1
6 N/A Not available 1 (washer)
7 999-1424 Nut M8-1.25 hex stainless steel 1 (nut,hex)
8 170-3601 Handle bar (OBSOLETE) 1
9 N/A Not available 2 (screw, self threading)
10 N/A Not available 2 (washer)
11 N/A Not available 2 (nut)
