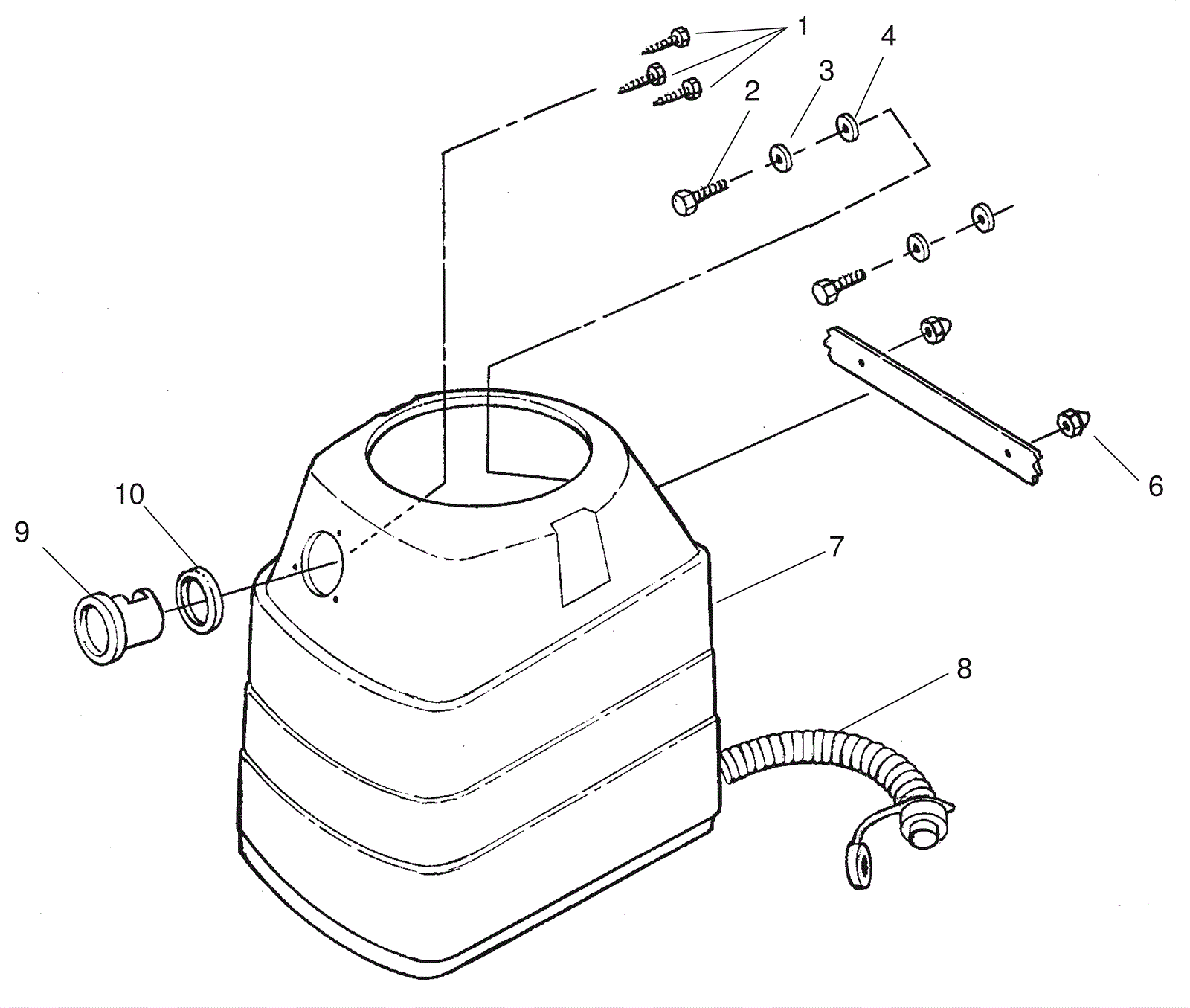

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-3582
|
Screw 3 1/2x14 (OBSOLETE) |
3 |
|
|
2 |
N/A
|
Not available |
2 |
(screw) |
|
3 |
N/A
|
Not available |
2 |
(washer) |
|
4 |
170-3589
|
Washer 1/4 pvc rubber (OBSOLETE) |
2 |
|
|
6 |
N/A
|
Not available |
2 |
(nut, cap) |
|
7a |
170-3590
|
Tank 20gal (OBSOLETE) |
1 |
(20 gallon) |
|
7b |
170-3591
|
Tank 15gal (OBSOLETE) |
1 |
(15 gallon) |
|
8 |
170-3592
|
Drain hose assembly |
1 |
|
|
9 |
170-3593
|
Tank inlet (OBSOLETE) |
1 |
|
|
10 |
170-3594
|
Tank inlet seal (OBSOLETE) |
1 |
|
|
