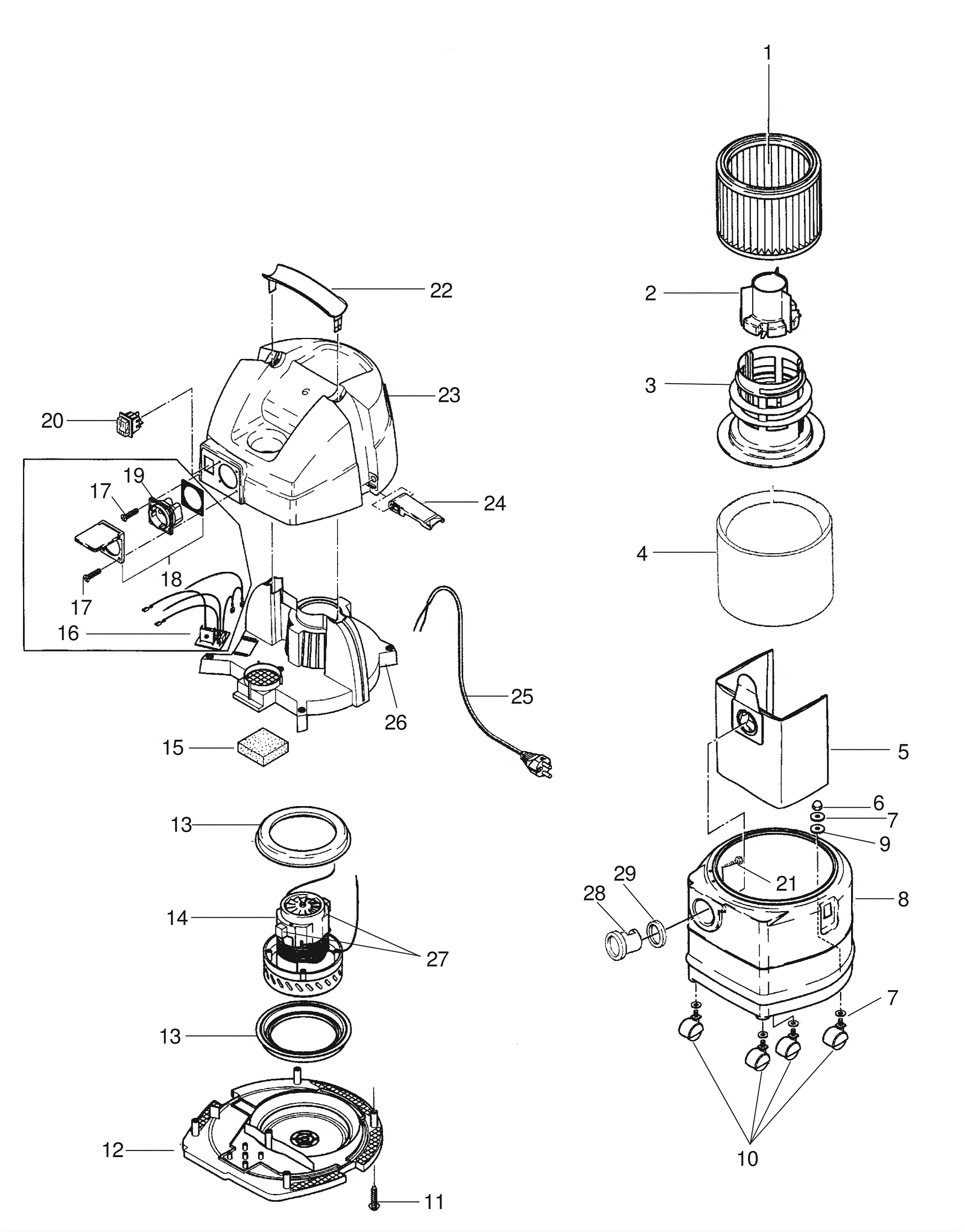

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-2053
|
Permanent filter |
1 |
|
|
2 |
170-3586
|
Float (OBSOLETE) |
1 |
|
|
3 |
170-3586
|
Float (OBSOLETE) |
1 |
|
|
4 |
170-3584
|
Cloth filter |
1 |
|
|
5 |
170-3640
|
7 gallon filter bags (pkg of 5) |
1 |
|
|
6 |
170-3641
|
Nut cap (OBSOLETE) |
4 |
|
|
7 |
170-3642
|
U-Disc 8.4mm zinc (OBSOLETE) |
4 |
|
|
8 |
170-3643
|
Vacuum tank 7gal (OBSOLETE) |
1 |
|
|
9 |
170-3644
|
Washer (OBSOLETE) |
4 |
|
|
10 |
170-3645
|
Caster 4pk (OBSOLETE) |
4 |
|
|
11 |
N/A
|
Not available |
5 |
(screw phillips) |
|
12a |
170-3580
|
Housing bottom single stage (OBSOLETE) |
1 |
(model 02170A) |
|
12b |
170-3581
|
Housing bottom 2-stage (OBSOLETE) |
1 |
(model 02172A) |
|
13 |
170-3575
|
Motor ring (OBSOLETE) |
2 |
|
|
14a |
170-3646
|
Vac motor 120v single stage (OBSOLETE) |
1 |
(model 02170A) |
|
14b |
170-6234
|
120V vacuum motor two stage |
1 |
(model 02172A) |
|
15 |
170-3648
|
Foam piece (OBSOLETE) |
1 |
|
|
16 |
170-2346
|
AUTO START, CTV 7 AS (OBSOLETE) |
1 |
(model 02172A) |
|
17 |
170-3649
|
Screw |
4 |
(model 02172A) |
|
18 |
472-0173
|
COVER CHASSIS KIT |
1 |
(model 02172A) |
|
19 |
170-3651
|
Socket plug |
1 |
(model 02172A) |
|
20a |
170-2345
|
Switch Aero 400/600 |
1 |
(model 02170A) |
|
20b |
N/A
|
Not available |
1 |
(model 02172A) |
|
21 |
N/A
|
Not available |
3 |
(screw hex) |
|
22 |
170-3653
|
Handle (OBSOLETE) |
1 |
|
|
23 |
170-3571
|
Top cover (OBSOLETE) |
1 |
|
|
24 |
170-2052
|
Cover clamp (OBSOLETE) |
2 |
|
|
25 |
170-3654
|
Power cord (OBSOLETE) |
1 |
|
|
26 |
170-3572
|
Upper housing (OBSOLETE) |
1 |
|
|
27 |
170-3655
|
Carbon brush (OBSOLETE) |
1 |
|
|
28 |
170-3593
|
Tank inlet (OBSOLETE) |
1 |
|
|
29 |
170-3594
|
Tank inlet seal (OBSOLETE) |
1 |
|
|
