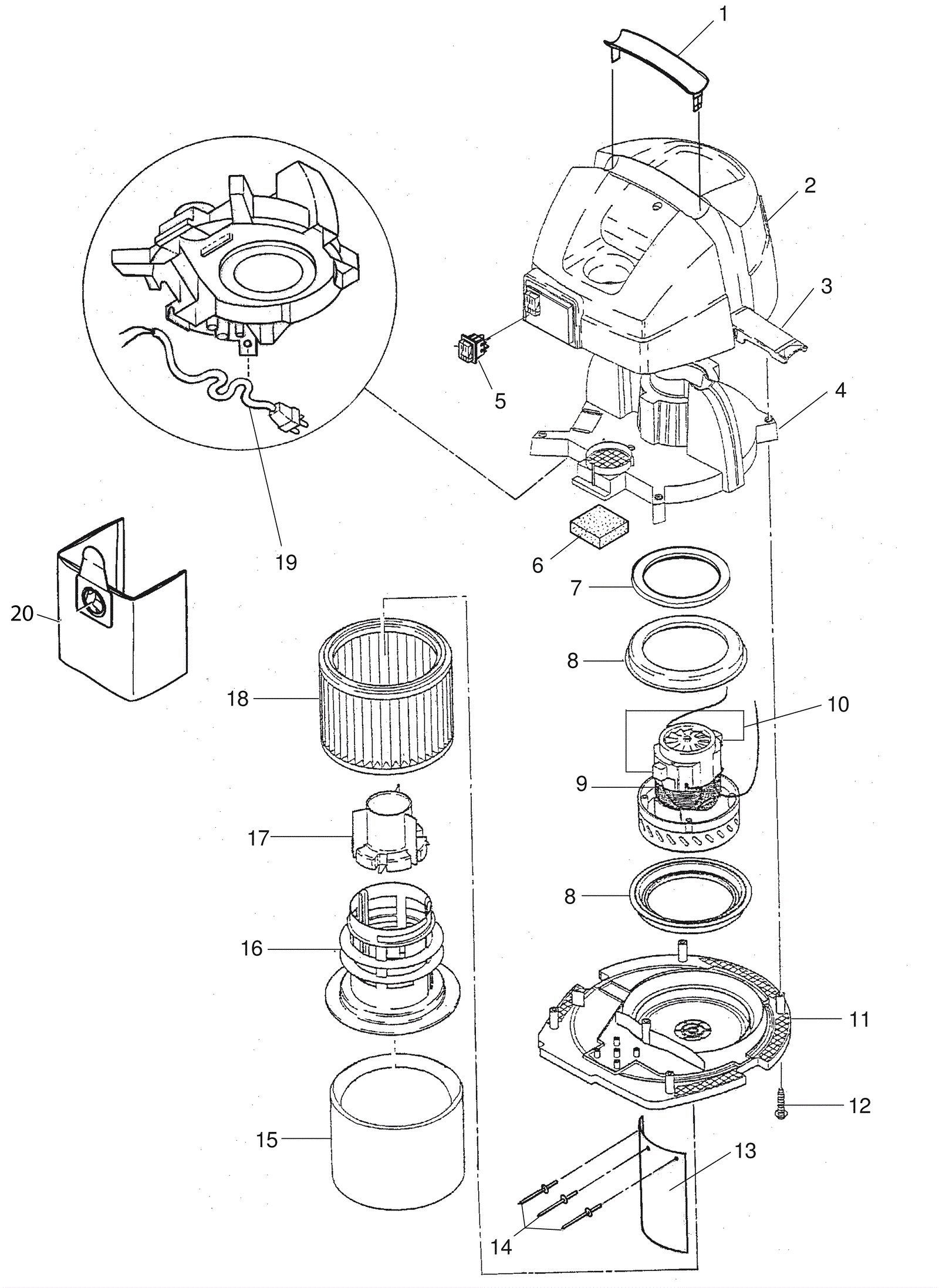

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
270-8584
|
Handle (OBSOLETE) |
1 |
|
|
2 |
170-3571
|
Top cover (OBSOLETE) |
1 |
|
|
3 |
170-2052
|
Cover clamp (OBSOLETE) |
2 |
|
|
4 |
170-3572
|
Upper housing (OBSOLETE) |
1 |
|
|
5 |
170-2345
|
Switch Aero 400/600 |
1 |
|
|
6 |
170-3648
|
Foam piece (OBSOLETE) |
1 |
|
|
7 |
N/A
|
Not available |
1 |
|
|
8 |
170-3575
|
Motor ring (OBSOLETE) |
2 |
|
|
9a |
170-3646
|
Vac motor 120v single stage (OBSOLETE) |
1 |
(model 02174A) |
|
9b |
170-6234
|
120V vacuum motor two stage |
1 |
(models 02178A, 02182A,02180A,02176A) |
|
10a |
170-3655
|
Carbon brush (OBSOLETE) |
1 |
(model 02174A) |
|
10b |
170-3655
|
Carbon brush (OBSOLETE) |
1 |
(models 02178A, 02182A,02180A,02176A) |
|
11a |
170-3580
|
Housing bottom single stage (OBSOLETE) |
1 |
(model 02174A) |
|
11b |
170-3581
|
Housing bottom 2-stage (OBSOLETE) |
1 |
(models 02178A, 02182A,02180A,02176A) |
|
12 |
N/A
|
Not available |
5 |
(Screw) |
|
13 |
170-3583
|
Deflector (perm. filter) (OBSOLETE) |
1 |
|
|
14 |
N/A
|
Not available |
3 |
(Rivet) |
|
15 |
170-3584
|
Cloth filter |
1 |
|
|
16 |
170-3586
|
Float (OBSOLETE) |
1 |
|
|
17 |
170-3586
|
Float (OBSOLETE) |
1 |
|
|
18 |
170-2053
|
Permanent filter |
1 |
|
|
19 |
170-3461
|
Power cord |
1 |
|
|
20 |
170-2054
|
Filter bags |
1 |
|
|
