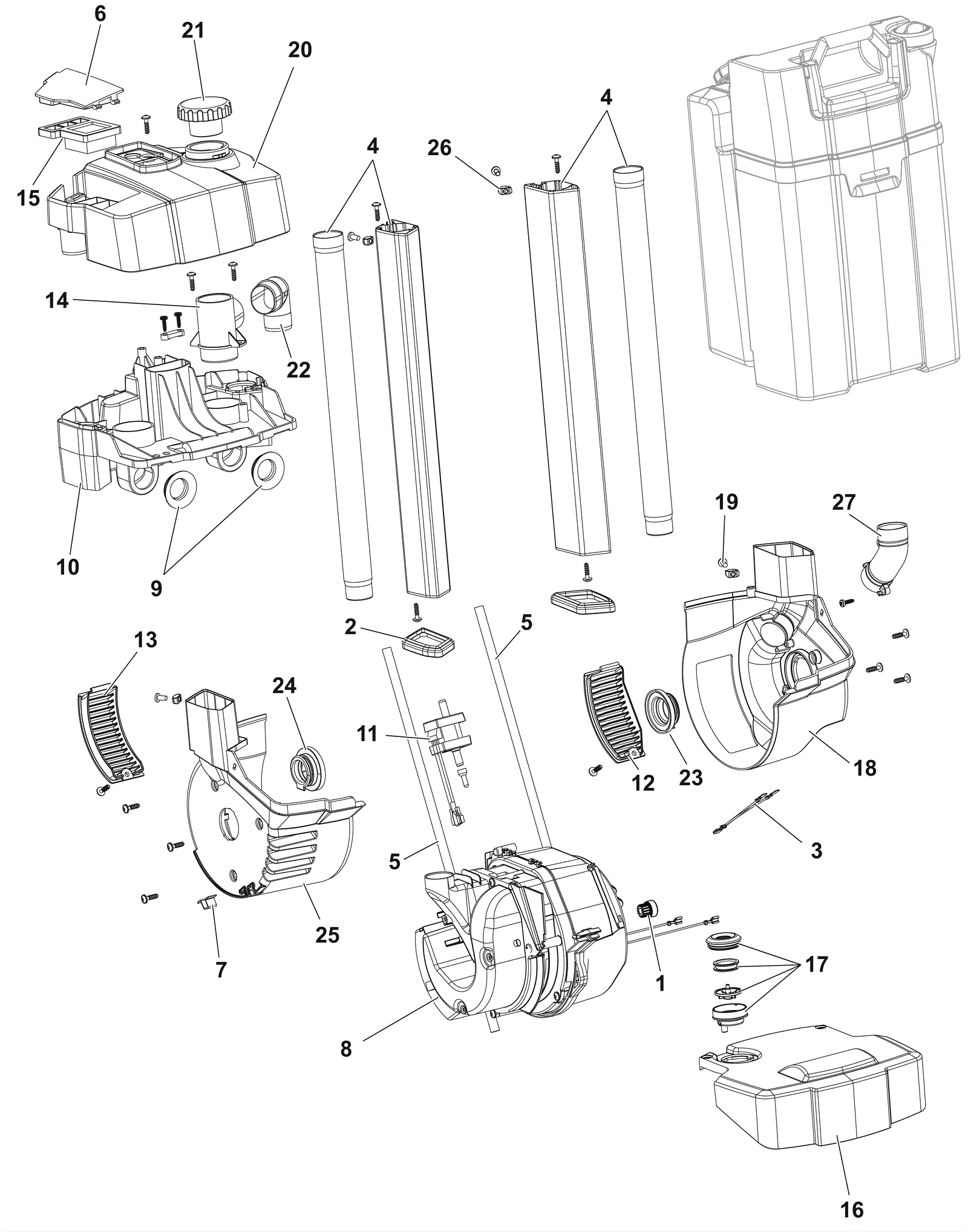

MA10 12E Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 472-0317 COG WHEEL M3 14 T $11.50 1 usually ships 13-18 days
2 472-0325 SEALING LEFT + RIGHT $13.32 2 usually ships 13-18 days
3 472-0320 WIRE W. FASTONS $11.50 1 usually ships 13-18 days
4 472-0322 PROFIL ALUMINIUM WITH TUBES $49.50 2 usually ships 13-18 days
5 472-0309 SILICONE HOSE 10X6 $15.17 1 ships same day
6 472-0293 LID FOR FILTER JET BLACK $9.52 1 usually ships 13-18 days
7 472-0331 BODY RIGHT RAL 7016 $55.48 1 (p-clip) usually ships 13-18 days
8 472-0340 MOTOR HOUSING US $472.23 1 usually ships 13-18 days
9 472-0289 GASKET IN/OUT $11.50 1 ships same day
10 472-0343 TOP COVER CLARKE $93.14 1 (flow base) usually ships 13-18 days
11 472-0335 DOSING PUMP, CLARKE $481.75 1 usually ships 13-18 days
12 472-0332 BODY LEFT RAL 7016 $57.16 1 (lid for outlet,motor) usually ships 13-18 days
13 472-0331 BODY RIGHT RAL 7016 $55.48 1 (lid for outlet,turbine) usually ships 13-18 days
14 472-0343 TOP COVER CLARKE $93.14 1 (adapter top cover) usually ships 13-18 days
15 472-0287 FILTER $13.32 1 ships same day
16 472-0326 TOP COVER BASE SCRUBTEC130 (OBSOLETE) $14.09 1 usually ships 13-18 days
17 472-0288 SOLUTION FILTER $15.17 1 usually ships 13-18 days
18 472-0332 BODY LEFT RAL 7016 $57.16 1 (left body) usually ships 13-18 days
19 472-0295 M5X10 BOLT $9.52 1 usually ships 13-18 days
20 472-0343 TOP COVER CLARKE $93.14 1 (topcover) usually ships 13-18 days
21 472-0281 CAP FOR SPOT CLEANING BLACK $13.32 1 usually ships 13-18 days
22 472-0343 TOP COVER CLARKE $93.14 1 (adapter tube) usually ships 13-18 days
23 472-0332 BODY LEFT RAL 7016 $57.16 1 (left pom bearing) usually ships 13-18 days
24 472-0331 BODY RIGHT RAL 7016 $55.48 1 (right pom bearing) usually ships 13-18 days
25 472-0331 BODY RIGHT RAL 7016 $55.48 1 (right body) usually ships 13-18 days
26 472-0314 T-NUT-M5 $13.32 1 usually ships 13-18 days
27 472-0332 BODY LEFT RAL 7016 $57.16 1 (suction hose bend) usually ships 13-18 days
K1 472-0331 BODY RIGHT RAL 7016 $55.48 1 usually ships 13-18 days
K2 472-0332 BODY LEFT RAL 7016 $57.16 1 usually ships 13-18 days
K3 472-0343 TOP COVER CLARKE $93.14 1 usually ships 13-18 days
