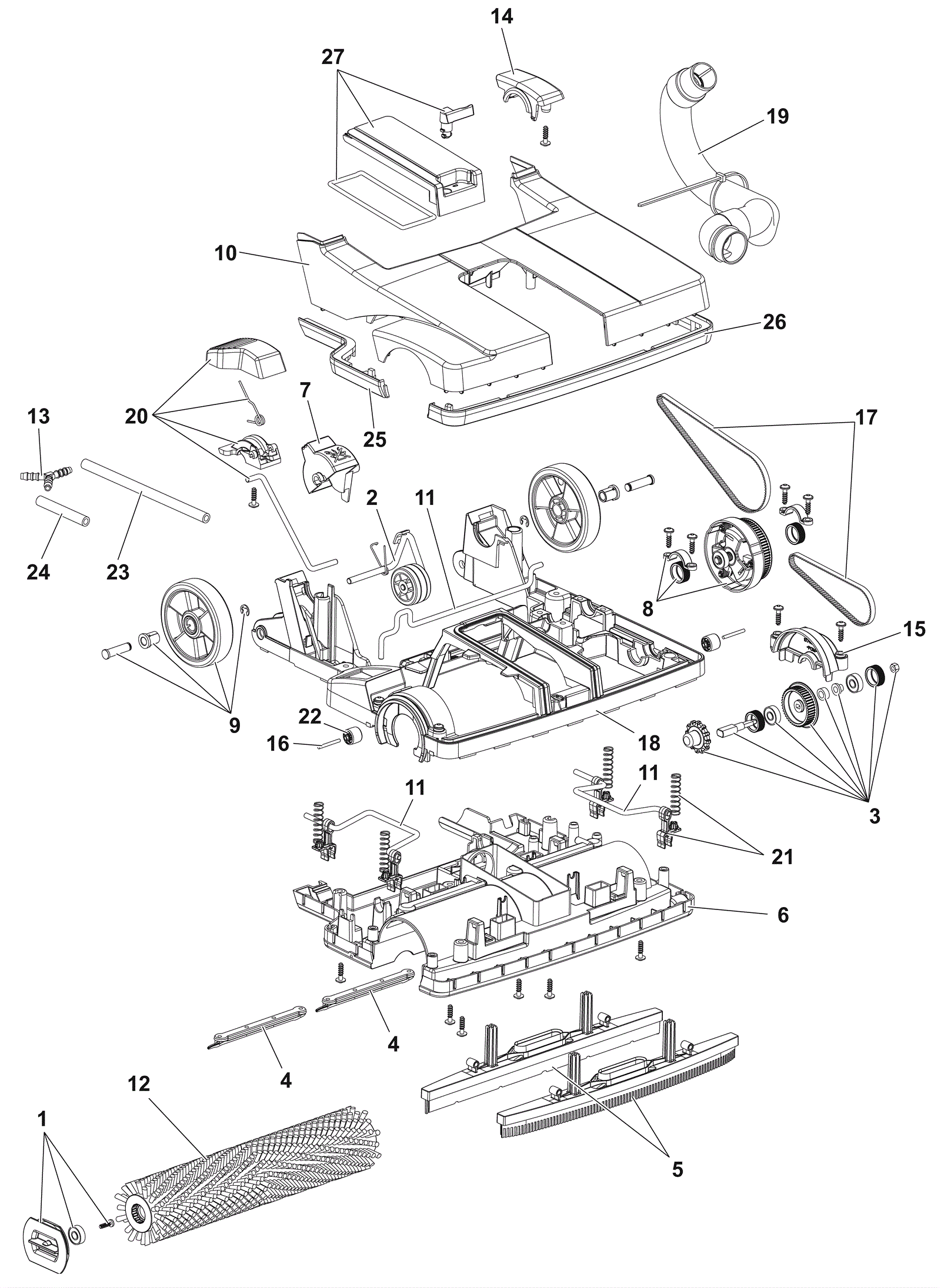

MA10 12E Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 472-0291 Brush key lock (jet black) $12.99 1 ships same day
2 472-0270 AXLE HIGHT ADJUSTMENT ROLLER $17.17 1 usually ships 13-18 days
3 472-0286 BRUSH MOUNTING $24.67 1 ships same day
4 472-0285 DOSING BRIDGE $13.32 2 ships same day
5a 472-0250 SQUEEGEE 12.5IN 13 KIT $32.15 1 ships same day
5b 472-0251 SQUEEGEE CARPET 12.5IN 13 KIT $24.67 1 usually ships 13-18 days
6 472-0296 NOZZLE HEAD $175.97 1 (chassis) usually ships 13-18 days
7 472-0308 SQUEEGEE PEDAL JET BLACK $13.32 1 usually ships 13-18 days
8 472-0282 CLUTCH OVERLOAD CPL $52.98 1 ships same day
9 472-0301 REAR WHEEL -90 WITH AXLE CPL. $19.01 1 usually ships 13-18 days
10 472-0311 TOP COVER CHASSIS ALTO BLUE (OBSOLETE) $38.36 1 (top cover) usually ships 13-18 days
11 472-0306 SQUEEGEE LIFTER $26.50 1 usually ships 13-18 days
12a 472-0244 12.5 inch brush (white) $98.13 1 ships same day
12b 472-0245 BRUSH 12.5IN HARD BLACK $119.64 1 ships same day
12c 472-0246 BRUSH 12.5IN MICROFIBER $110.18 1 usually ships 13-18 days
12d 472-0247 BRUSH 12.5IN CARPET $83.64 1 usually ships 13-18 days
13 472-0311 TOP COVER CHASSIS ALTO BLUE (OBSOLETE) $38.36 1 (y-connector) usually ships 13-18 days
14 472-0323 BEARING COVER LEFT $11.50 1 usually ships 13-18 days
15 472-0272 BRUSH BEARING COVER $11.50 1 usually ships 13-18 days
16 472-0296 NOZZLE HEAD $175.97 2 (axle) usually ships 13-18 days
17 472-0273 BANDO BELT-BRUSH $26.50 1 usually ships 13-18 days
18 472-0296 NOZZLE HEAD $175.97 1 (frame) usually ships 13-18 days
19 472-0274 HOSE AIRCHANNEL $17.17 1 usually ships 13-18 days
20 472-0298 PARKING PEDAL ORANGE $19.01 1 usually ships 13-18 days
21 472-0307 SQUEEGEE LIFTER-BODY $11.50 4 usually ships 13-18 days
22 472-0296 NOZZLE HEAD $175.97 2 (support roller) usually ships 13-18 days
23 472-0311 TOP COVER CHASSIS ALTO BLUE (OBSOLETE) $38.36 1 (silicone hose) usually ships 13-18 days
24 472-0311 TOP COVER CHASSIS ALTO BLUE (OBSOLETE) $38.36 1 (silicone hose) usually ships 13-18 days
25 472-0296 NOZZLE HEAD $175.97 1 (right hand bumper) usually ships 13-18 days
26 472-0296 NOZZLE HEAD $175.97 1 (left hand bumper) usually ships 13-18 days
27 472-0283 COVER FOR SQUEEGEE CHANNEL BLK $17.17 1 usually ships 13-18 days
K1 472-0296 NOZZLE HEAD $175.97 1 (includes 6,16,18,22,25 and 26) usually ships 13-18 days
K2 472-0311 TOP COVER CHASSIS ALTO BLUE (OBSOLETE) $38.36 1 (includes 10,23 and 24) usually ships 13-18 days
