| # | Part | Description |
Req | Notes | Availability |
|---|

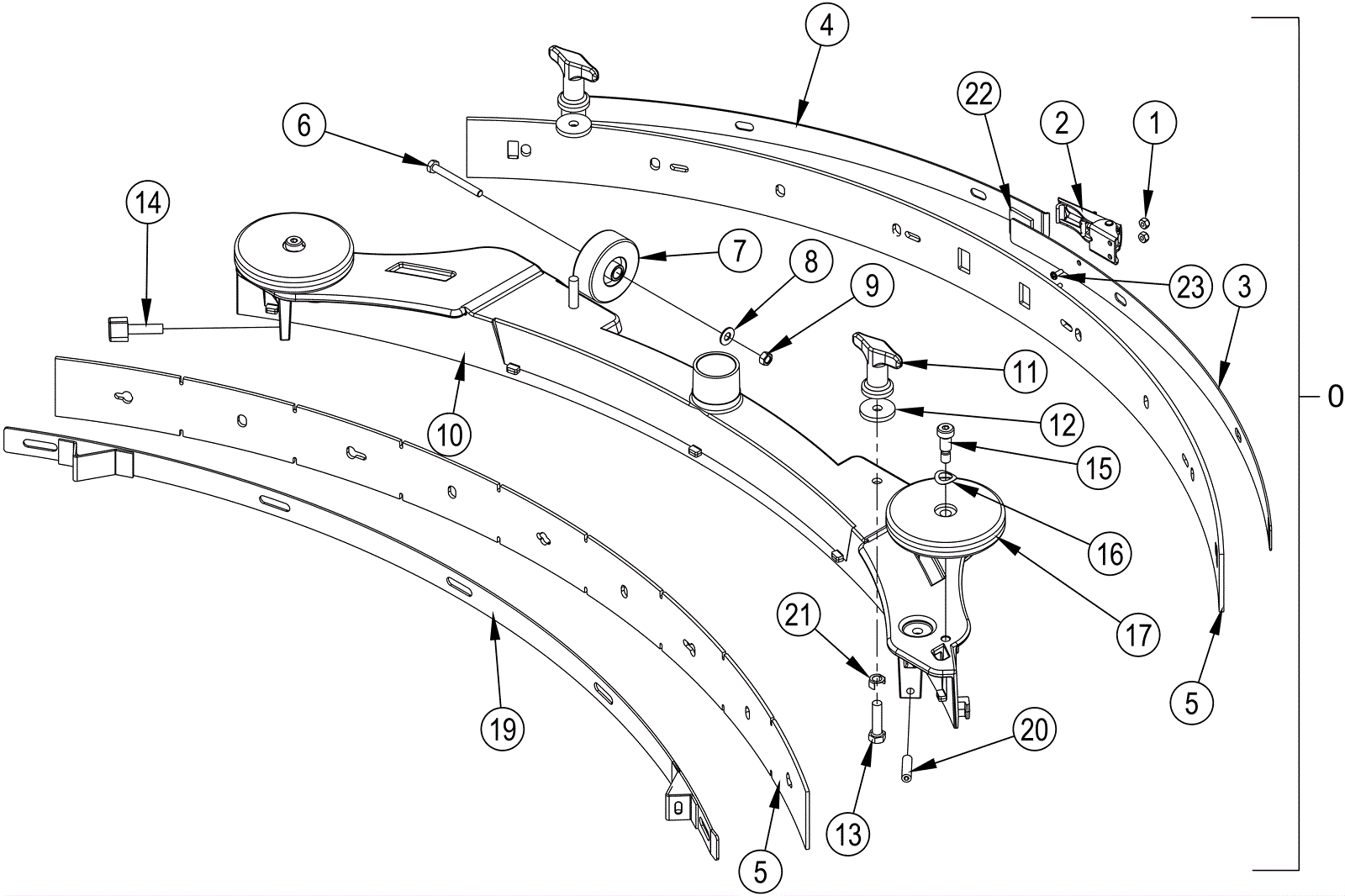

0a |
370-0732
|
SQUEEGEE ASSY 32.5 |
1 |
(includes 1-2, 3a,4a, 5a, 6-9, 10a, 11-17, 19a, 20-23) (includes urethane blades) |
|
0b |
272-6573
|
35 inch squeegee assembly |
1 |
(includes 1-2, 3b,4b, 5b, 6-9, 10b, 11-17, 19b, 20-23) (includes urethane blades) |
|
0c |
272-5578
|
41 inch squeegee assembly |
1 |
(includes 1-2, 3c, 4c, 5c, 6-9, 10c, 11-17, 19c, 20-23) (includes urethane blades) |
|
1 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
|
2 |
272-7124
|
Squeegee latch |
1 |
|
|
3a |
270-0230
|
32 1/2 inch squeegee support |
1 |
|
|
3b |
270-0231
|
35 inch squeegee support (BOOST 28) |
1 |
|
|
3c |
270-0232
|
41 inch squeegee support |
1 |
|
|
4a |
270-0233
|
32 1/2 rear squeegee band |
1 |
|
|
4b |
270-0234
|
35 inch squeegee band rear (BOOST 28) |
1 |
|
|
4c |
270-0235
|
41 inch squeegee band rear (BOOST 32) |
1 |
|
|
5a |
370-0801
|
Urethane squeegee blade kit |
1 |
(includes front and rear squeegee blades) (26 inch) |
|
5b |
270-0803
|
Squeegee blade kit 35 inch urethane |
1 |
(includes front and rear squeegee blades) (28 inch) |
|
5c |
272-7419
|
Squeegee blade kit urethane |
1 |
(includes front and rear squeegee blades) (34 inch disc and 32 inch boost) |
|
6 |
999-9093
|
Screw M6-1 x 55mm hex head stainless steel |
2 |
|
|
7 |
172-4793
|
Squeegee wheel kit |
2 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
9 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
10a |
N/A
|
Not available |
1 |
(32.5 inch frame) (only available with 0a) |
|
10b |
N/A
|
Not available |
2 |
(35 inch frame) (only available with 0b) |
|
10c |
N/A
|
Not available |
1 |
(42 inch frame) (only available with 0c) |
|
11 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
12 |
472-8250
|
WASHER-POLYURETHANE-1.25 |
2 |
(after SN 4000065931) (for machines before SN4000065932 see TSB-FC-2014-031) |
|
13 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
|
14 |
270-0243
|
Knob |
1 |
|
|
15 |
270-0244
|
Screw 5/16 x 3/8 x 5/8 shoulder stainless steel |
2 |
|
|
16 |
270-0174
|
Washer 29/64 x 47/64 bowed |
2 |
|
|
17 |
170-7172
|
4 inch guide wheel |
2 |
|
|
19a |
270-0247
|
32 1/2 inch front squeegee band |
1 |
|
|
19b |
270-0248
|
35 inch squeegee band front (BOOST 28) |
1 |
|
|
19c |
270-0249
|
41 inch squeegee band front |
1 |
|
|
20 |
999-9112
|
Screw M8-1.25 x 30mm set stainless steel |
1 |
|
|
21 |
270-0251
|
Screw shim |
2 |
|
|
22 |
270-0252
|
Squeegee pad |
1 |
|
|
23 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
|
|
