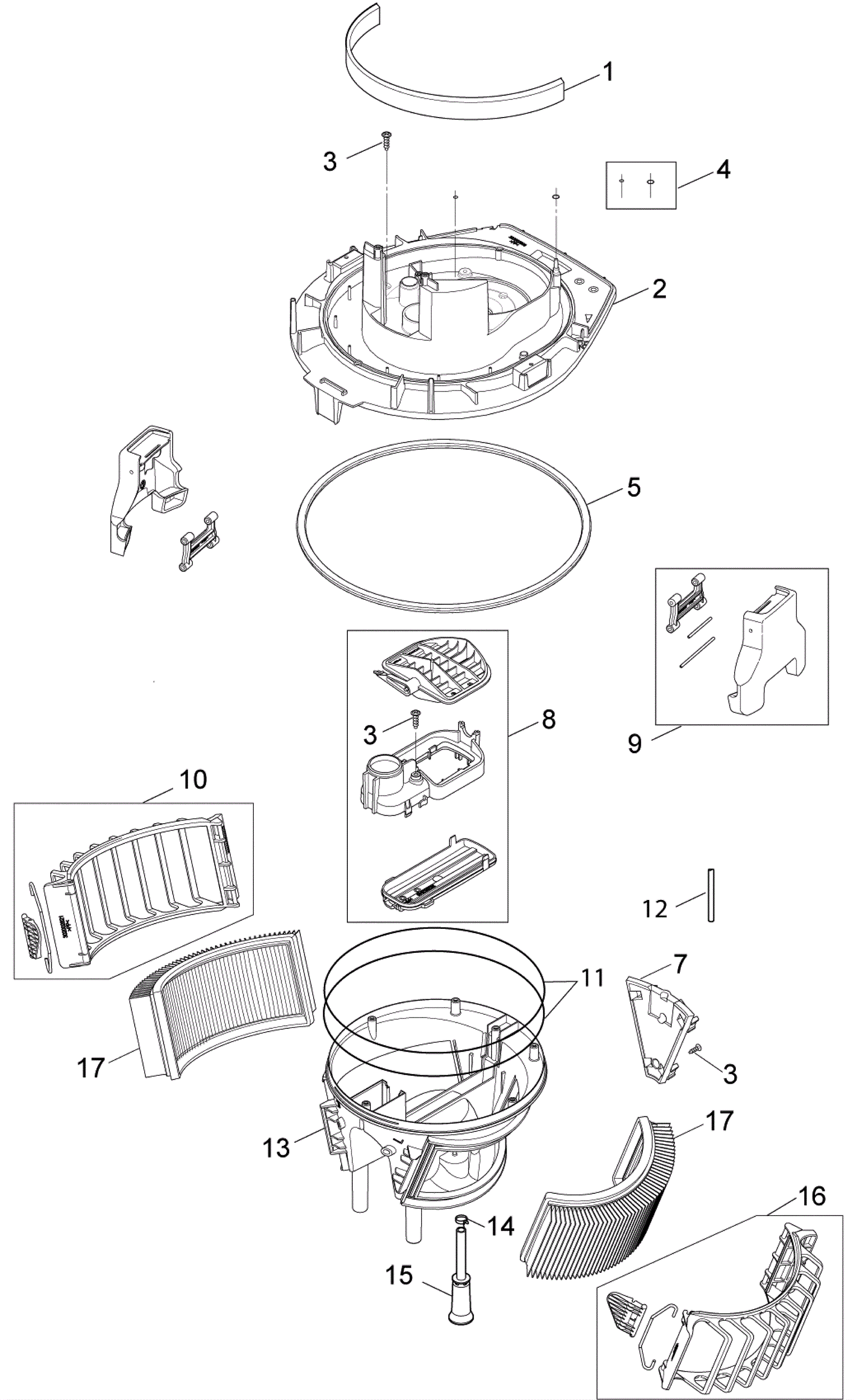

Filter Assembly - XC

#PartDescription ReqNotesAvailability
1 270-1304 Front insulation 1
2 270-1313 Base plate 1
3 372-1301 Screw 9
4 270-1314 O-ring 1
5 270-1315 Gasket 1
6 270-1316 Wire 1
7 270-1317 Filter mounting kit 1
8 270-1318 Flap kit 1
9 270-1319 Container clamp 2
11 270-1306 Seal 1
12 270-1307 Hose 1
13 472-0149 FILTERBRACKET XC 1
14 270-1309 Band clamp fitting 1
15 270-1310 Hose shut off 1
16 270-1317 Filter mounting kit 1
17 270-1312 Main filter 1
