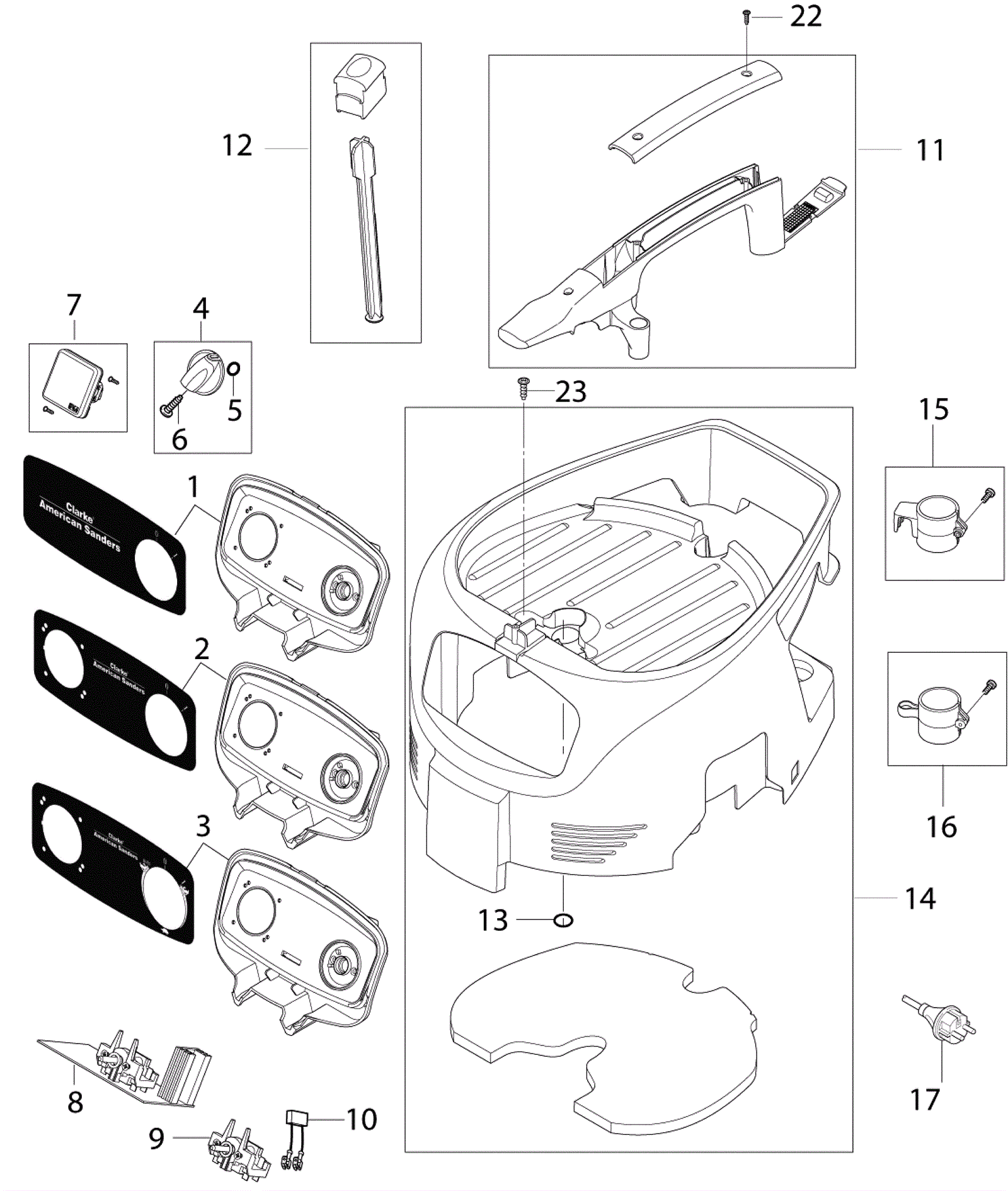

Upper Assembly

#PartDescription ReqNotesAvailability
1 472-0155 SWITCHBOX CAV BASIC 1 (Base model)
2 N/A Not available 1 (Switch box) (Push model)
3 472-0156 SWITCHBOX CAV XC (OBSOLETE) 1 (XC model)
4 572-3018 KNOB CONTROL SWITCH 302000612 1
5 170-5848 O ring 10 x 2.5 mm 1
6 270-1335 Sheet metal screw 1
7 270-1336 Socket 1
8 270-1337 Power control board (OBSOLETE) 1
9 472-0268 ROTARY SWITCH 2 POS 16A KIT 1
10 170-5845 Capacitor 1
11a 270-1327 Handle 1
11b 270-1328 Handle 1
12 472-0154 BUTTON KIT 1
13 270-1329 O-ring 1
14a 270-1330 Cover (black) 1
14b 270-1331 Cover (black) 1
15 270-1332 Tube hook 1
16 270-1333 Tube snap 1
17 270-1334 Power cord 1
22 N/A Not available 1 (Screw)
23 N/A Not available 1 (Screw)
