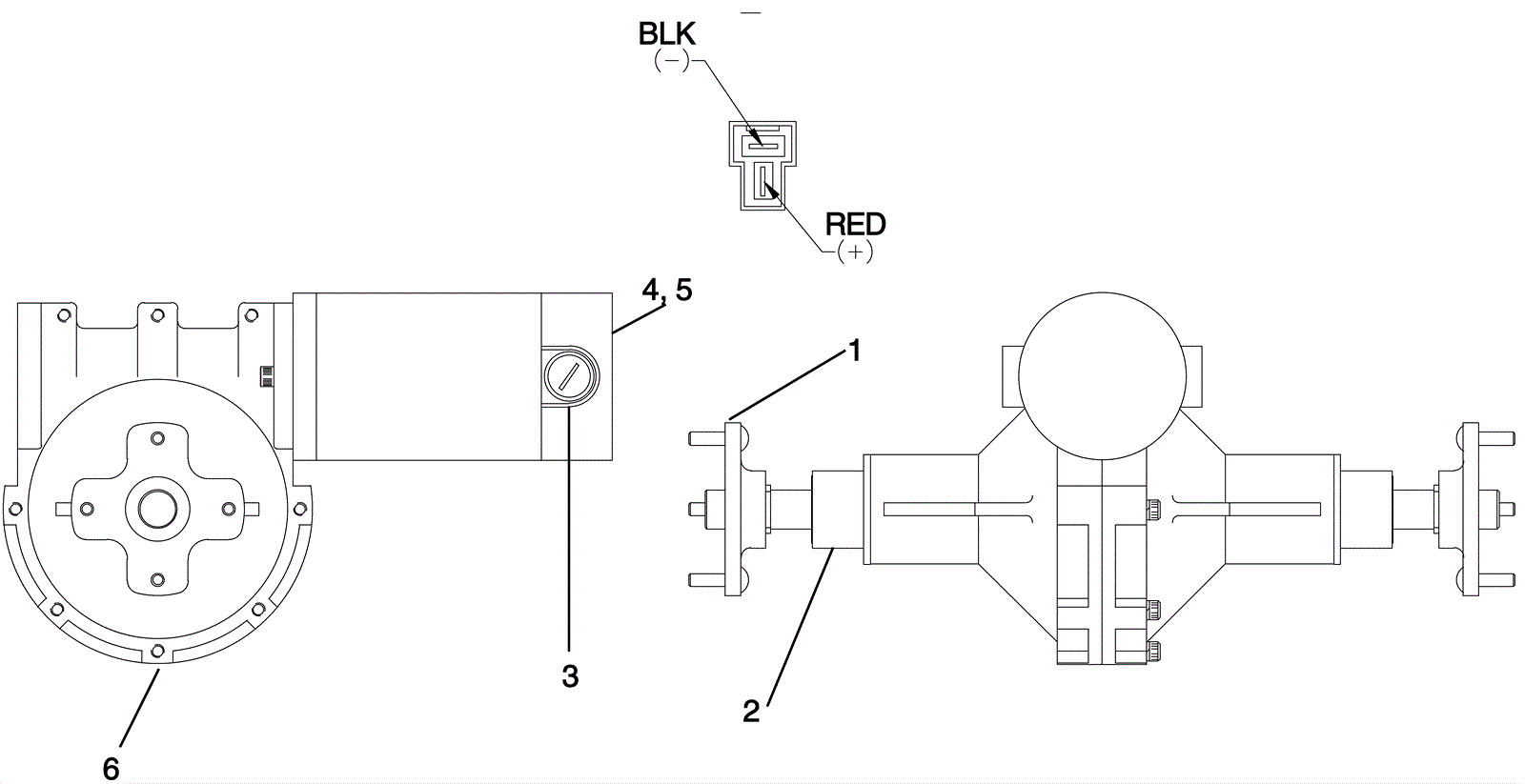

Transaxle Drawing

#PartDescription ReqNotesAvailability
1 170-1921 Transaxle hub (OBSOLETE) 2
2 272-2338 Neoprene mounting sleeve 2
3 N/A Not available 2 (Motor brush)
4 N/A Not available 1 (Urethane motor sleeve)
5 N/A Not available 1 (Motor)
6 270-0850 Transaxle (OBSOLETE) 1
