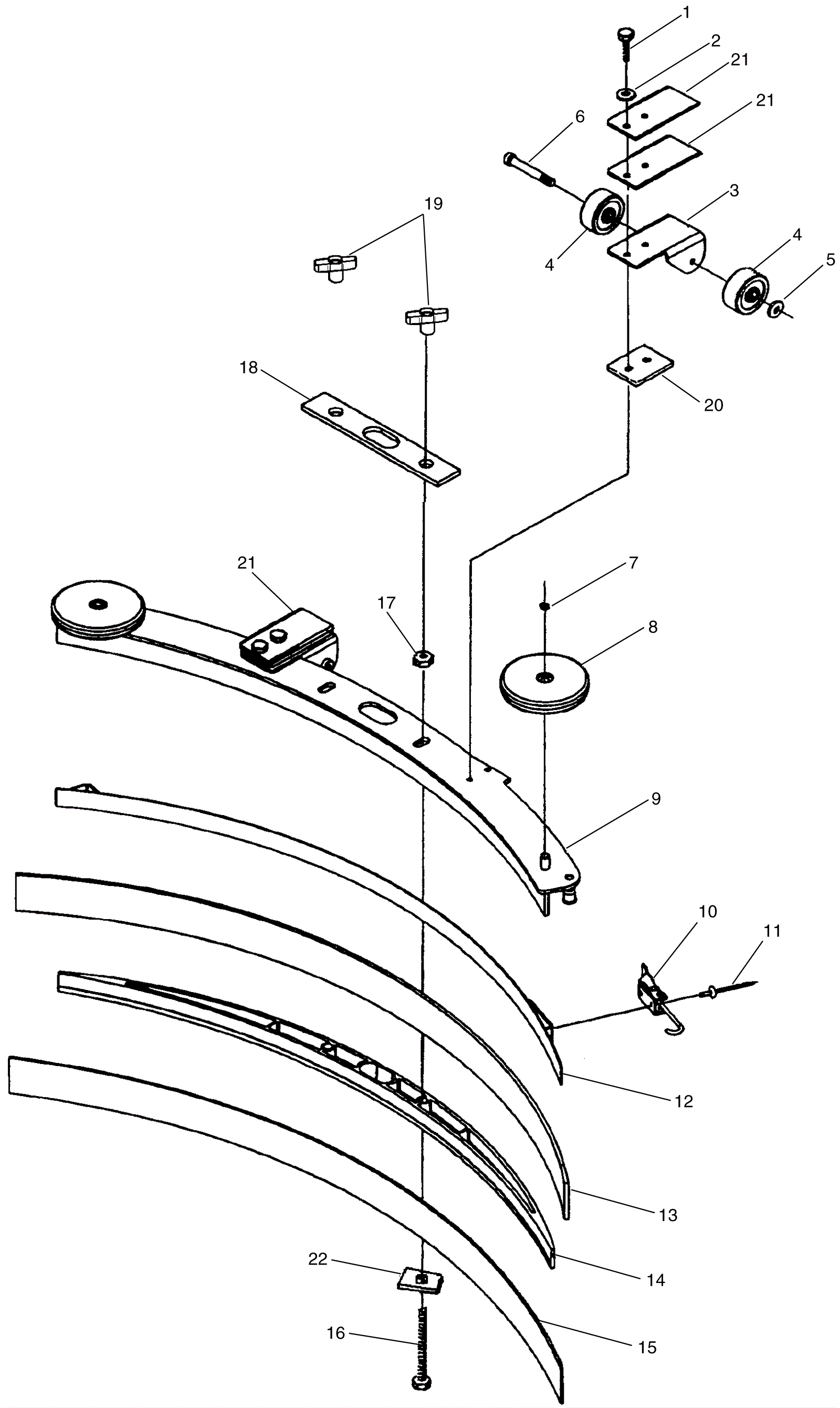

Focus L20 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
2 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
3 170-7168 Squeegee wheel bracket $77.12 2 usually ships 16-41 days
4 170-7169 Squeegee wheel $14.91 4 usually ships 16-41 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
6 170-7170 Bolt 5/16 x 2 1/4 shoulder $5.39 2 ships same day
7 170-7333 Snap ring $12.31 2 usually ships 16-41 days
8 170-7172 4 inch guide wheel $34.14 2 ships same day
9 170-7173 32 inch squeegee weldment $401.93 1 usually ships 16-41 days
10 170-7162 Clamp latch $64.53 1 usually ships 16-41 days
11 170-7163 Aluminum rivet $1.72 2 usually ships 4-15 days
12 170-7175 32 inch retainer clamp strap $160.86 1 usually ships 16-41 days
13 170-9003 Squeegee blade 32 inch rear linatex (red) $48.18 1 ships same day
14 170-7176 32 inch squeegee spacer $31.10 1 usually ships 16-41 days
15 170-8935 Squeegee blade 32 inch front linatex (red) $38.62 1 ships same day
16 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized $2.82 2 ships same day
17 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 2 ships same day
18 170-0164 Gasket $10.85 1 usually ships 16-41 days
19 170-0171 Knob $29.52 2 ships same day
20 170-7177 Shim $12.31 2 usually ships 16-41 days
21 170-7338 Squeegee weight $13.17 4 usually ships 16-41 days
22 170-3394 Back up nut $21.57 2 usually ships 16-41 days
