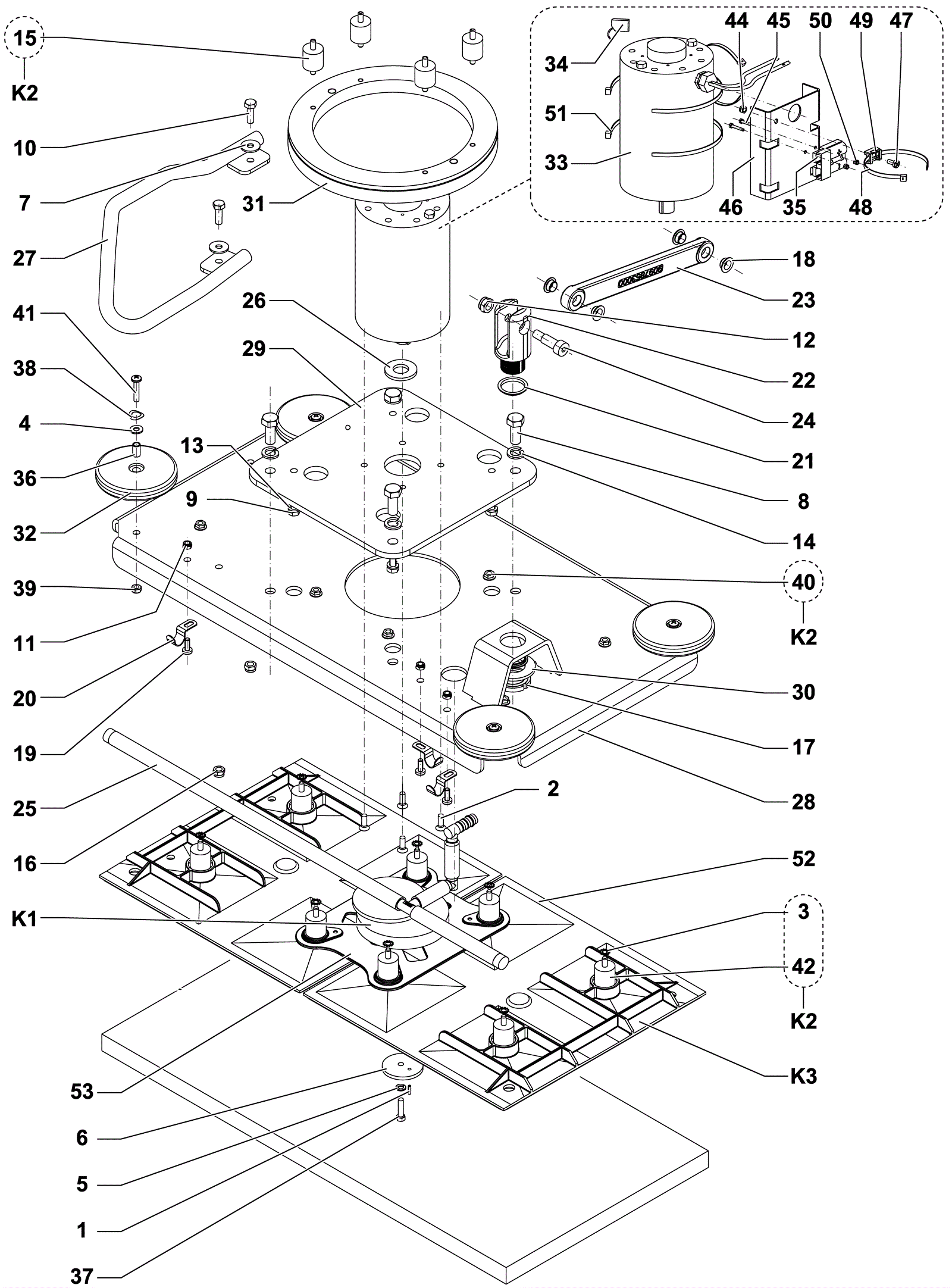

Focus II Micro Boost Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8382 Boost deck kit $421.17 1 (steel spring) usually ships 1-5 days
2 270-8382 Boost deck kit $421.17 4 (screw) usually ships 1-5 days
3 999-0017 Washer 1/4 external star lock $0.99 8 (washer) ships same day
4 999-0016 Washer 1/4 flat plain finish $0.99 4 (washer) ships same day
5 270-8382 Boost deck kit $421.17 1 (washer) usually ships 1-5 days
6 270-8382 Boost deck kit $421.17 1 (retainer) usually ships 1-5 days
7 270-8382 Boost deck kit $421.17 2 (flat washer) usually ships 1-5 days
8 999-1896 Screw M-1.75 x 30mm hex head $5.18 4 (screw) ships same day
9 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 4 (screw) ships same day
10 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 (screw) ships same day
11 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 3 (nut) ships same day
12 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 (nut) usually ships 1-5 days
13 270-8382 Boost deck kit $421.17 4 (split lock washer) usually ships 1-5 days
14 270-8382 Boost deck kit $421.17 4 (split lock washer) usually ships 1-5 days
15a 170-9016 Rubber mounting isolator kit $160.86 4 (isolator) ships same day
15b 991-7152 Isolator kit (pkg of 8) $81.36 1 (NON-EOM) usually ships 13-17 days
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 (nut) ships same day
17 270-8382 Boost deck kit $421.17 1 (self lock nut) usually ships 1-5 days
18 270-8382 Boost deck kit $421.17 4 (flange bearing) usually ships 1-5 days
19 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 3 (screw) ships same day
20 270-8382 Boost deck kit $421.17 3 (hose) usually ships 1-5 days
21 270-8382 Boost deck kit $421.17 2 (flange bearing) usually ships 1-5 days
22 270-8307 Turning bracket kit $104.61 1 (turning support) usually ships 1-5 days
23 270-8360 Side arm $21.57 1 (side arm) usually ships 1-5 days
24 270-8382 Boost deck kit $421.17 1 (shoulder screw) usually ships 1-5 days
25 270-8374 Boost deck hose kit $93.46 1 (boost deck pipe kit) usually ships 12-18 days
26 270-8382 Boost deck kit $421.17 1 (spacer) usually ships 1-5 days
27 270-8375 Deck protection $160.86 1 (protection deck) usually ships 1-5 days
28 270-8376 Boost deck support plate (OBSOLETE) $500.47 1 (support boost deck plate) usually ships 1-5 days
29 270-8377 Boost deck motor support (OBSOLETE) $232.08 1 (boost deck motor support) usually ships 1-5 days
30 270-8382 Boost deck kit $421.17 1 (flat washer) usually ships 1-5 days
31 270-8378 Bearing kit $949.84 1 (bearing kit) usually ships 1-5 days
32 170-7172 4 inch guide wheel $34.14 4 (wheel guide) ships same day
33 272-9948 24V brush motor $1,179.74 1 ( motor) usually ships 12-18 days
34 172-8951 Carbon brush and spring kit $222.53 1 (brush motor replacement kit) usually ships 12-18 days
35 991-2103 50amp charger plug SB50 with pins (red) $7.19 1 (connector) ships same day
36 270-8382 Boost deck kit $421.17 4 (guide wheel sleeve) usually ships 1-5 days
37 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 (screw) ships same day
38 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 (screw) ships same day
39 999-0190 Nut 1/4-20 hex plain finish $0.99 4 (nut) ships same day
40a 170-9016 Rubber mounting isolator kit $160.86 8 (nut) ships same day
40b 991-7152 Isolator kit (pkg of 8) $81.36 1 (NON-EOM) usually ships 13-17 days
41 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 4 (screw) ships same day
42a 170-9016 Rubber mounting isolator kit $160.86 8 (isolator) ships same day
42b 991-7152 Isolator kit (pkg of 8) $81.36 1 (NON-EOM) usually ships 13-17 days
44 270-8382 Boost deck kit $421.17 1 (self nut) usually ships 1-5 days
45 999-1897 Screw M3-.5 x 20mm hex head $0.99 2 (screw) usually ships 1-5 days
46 270-8380 Boost deck harness plate $39.60 1 (boost deck harness plate) usually ships 1-5 days
47 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 1 (screw) ships same day
48 270-8382 Boost deck kit $421.17 2 (clamp) usually ships 1-5 days
49 270-8382 Boost deck kit $421.17 1 (flat tie holder) usually ships 1-5 days
50 270-8382 Boost deck kit $421.17 2 (self nut) usually ships 1-5 days
51 270-8382 Boost deck kit $421.17 2 (clamp) usually ships 1-5 days
52 270-0766 28 inch flex plate assembly $268.38 2 (flex plate assembly) ships same day
53 272-7249 Driver plate $24.60 1 (driver plate) usually ships 12-18 days
K2 170-9016 Rubber mounting isolator kit $160.86 1 (isolator boost kit, includes 3, 15, 40, 42) ships same day
K3 272-6640 BOOST flex plate kit $1,026.45 1 (flex plate boost kit) usually ships 12-18 days
N/S 270-8382 Boost deck kit $421.17 1 (boost deck kit, includes 1, 2, 4-14, 16-21, 24, 26, 30, 36-39, 41, 44, 45, 47-51) usually ships 1-5 days
