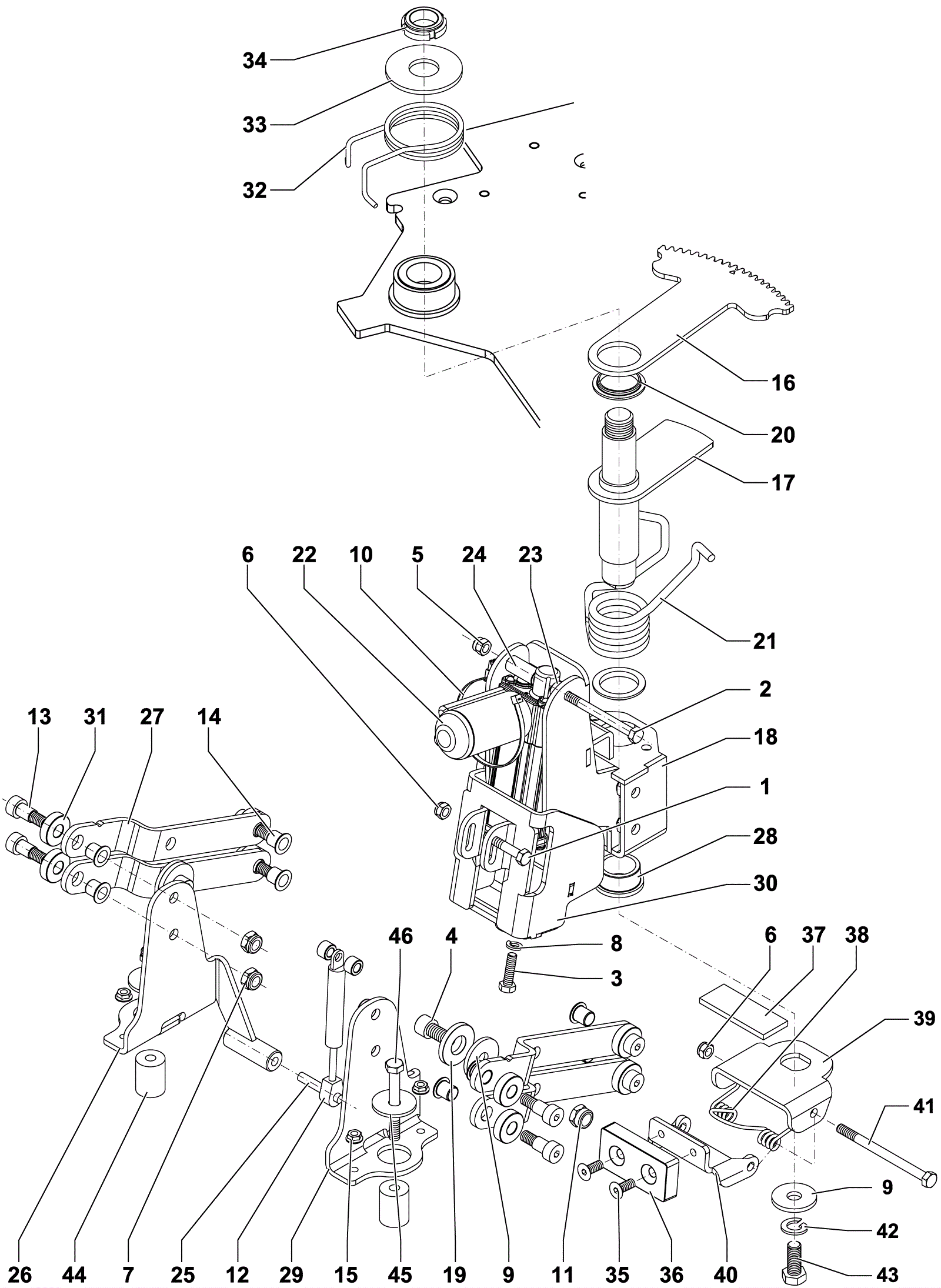

Focus II Micro Magic Deck Boost Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1426 Screw M8-1.25 x 45mm hex head stainless steel $3.04 1 (screw) ships same day
2 999-1640 Screw M8-1.25 x 90mm hex head stainless steel $3.39 1 (screw) usually ships 1-5 days
3 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 (screw) ships same day
4 270-8368 Boost deck support $402.90 2 (vite) usually ships 1-5 days
5 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 (nut) ships same day
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 (nut) ships same day
7 999-1550 Nut M10-1.5 nylon insert lock $0.99 4 (nut) usually ships 1-5 days
8 270-8368 Boost deck support $402.90 1 (washer) usually ships 1-5 days
9 270-8368 Boost deck support $402.90 2 (washer) usually ships 1-5 days
10 270-8368 Boost deck support $402.90 1 (black cable tie) usually ships 1-5 days
11 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 (nut) ships same day
12 270-0409 Gas spring $79.45 1 ships same day
13 270-8368 Boost deck support $402.90 8 (shoulder screw) usually ships 1-5 days
14 270-8368 Boost deck support $402.90 8 (flange bearing) usually ships 1-5 days
15 270-8368 Boost deck support $402.90 4 (serrated flange nut) usually ships 1-5 days
16 270-8328 Slave gear $37.61 1 (gear slave) usually ships 16-41 days
17 270-8329 Driven crown pin $128.48 1 (gear slave pin) usually ships 1-5 days
18 270-8332 Actuator support $276.53 1 (support jack) usually ships 1-5 days
19 270-8368 Boost deck support $402.90 2 (bush) usually ships 1-5 days
20 270-8368 Boost deck support $402.90 2 (flange bearing) usually ships 1-5 days
21 270-8368 Boost deck support $402.90 1 (dragging spring deck) usually ships 1-5 days
22 270-8337 24V actuator motor $544.35 1 (motor jack) ships same day
23 270-8368 Boost deck support $402.90 3 (spacer) usually ships 1-5 days
24 270-8368 Boost deck support $402.90 1 (spacer) usually ships 1-5 days
25 270-8368 Boost deck support $402.90 1 (pin) usually ships 1-5 days
26 270-8369 Left hand boost deck plate $131.43 1 (left boost deck plate) usually ships 1-5 days
27 270-8370 Boost deck arm $124.26 4 (boost deck arm) usually ships 1-5 days
28 270-8368 Boost deck support $402.90 1 (flange bearing) usually ships 1-5 days
29 270-8371 Right hand boost deck plate $131.43 1 (right boost deck plate usually ships 1-5 days
30 270-8372 Lower actuator motor bracket $279.36 1 (lower jack motor bracket) usually ships 1-5 days
31 270-8368 Boost deck support $402.90 8 (spacer) usually ships 1-5 days
32 270-8368 Boost deck support $402.90 1 (spring reset) usually ships 1-5 days
33 270-8368 Boost deck support $402.90 1 (gremb rond) usually ships 1-5 days
34 270-8368 Boost deck support $402.90 1 (self lock nut) usually ships 1-5 days
35 270-8368 Boost deck support $402.90 2 (flat socket screw) usually ships 1-5 days
36 270-8349 Dragging deck guide $10.56 1 (guide) usually ships 1-5 days
37 270-8368 Boost deck support $402.90 1 (antishock rubber) usually ships 1-5 days
38 270-8368 Boost deck support $402.90 1 (dragging insertion) usually ships 1-5 days
39 270-8346 Upper dragging flange $28.46 1 (up swayer flange) usually ships 1-5 days
40 270-8348 Lower dragging flange $52.69 1 (down swayer flange) usually ships 1-5 days
41 270-8368 Boost deck support $402.90 1 (vite) usually ships 1-5 days
42 270-8368 Boost deck support $402.90 1 (grower rond) usually ships 1-5 days
43 270-8368 Boost deck support $402.90 1 (vite) usually ships 1-5 days
44 270-8373 Spacer $10.56 2 (spacer) usually ships 1-5 days
45 270-8368 Boost deck support $402.90 2 (washer) usually ships 1-5 days
46 270-8368 Boost deck support $402.90 2 (screw) usually ships 1-5 days
N/S 270-8368 Boost deck support $402.90 1 (boost deck support, includes 1-11, 13-15, 19-21, 23-25, 28, 31-35, 37, 38, 41-43, 45, 46) usually ships 1-5 days
