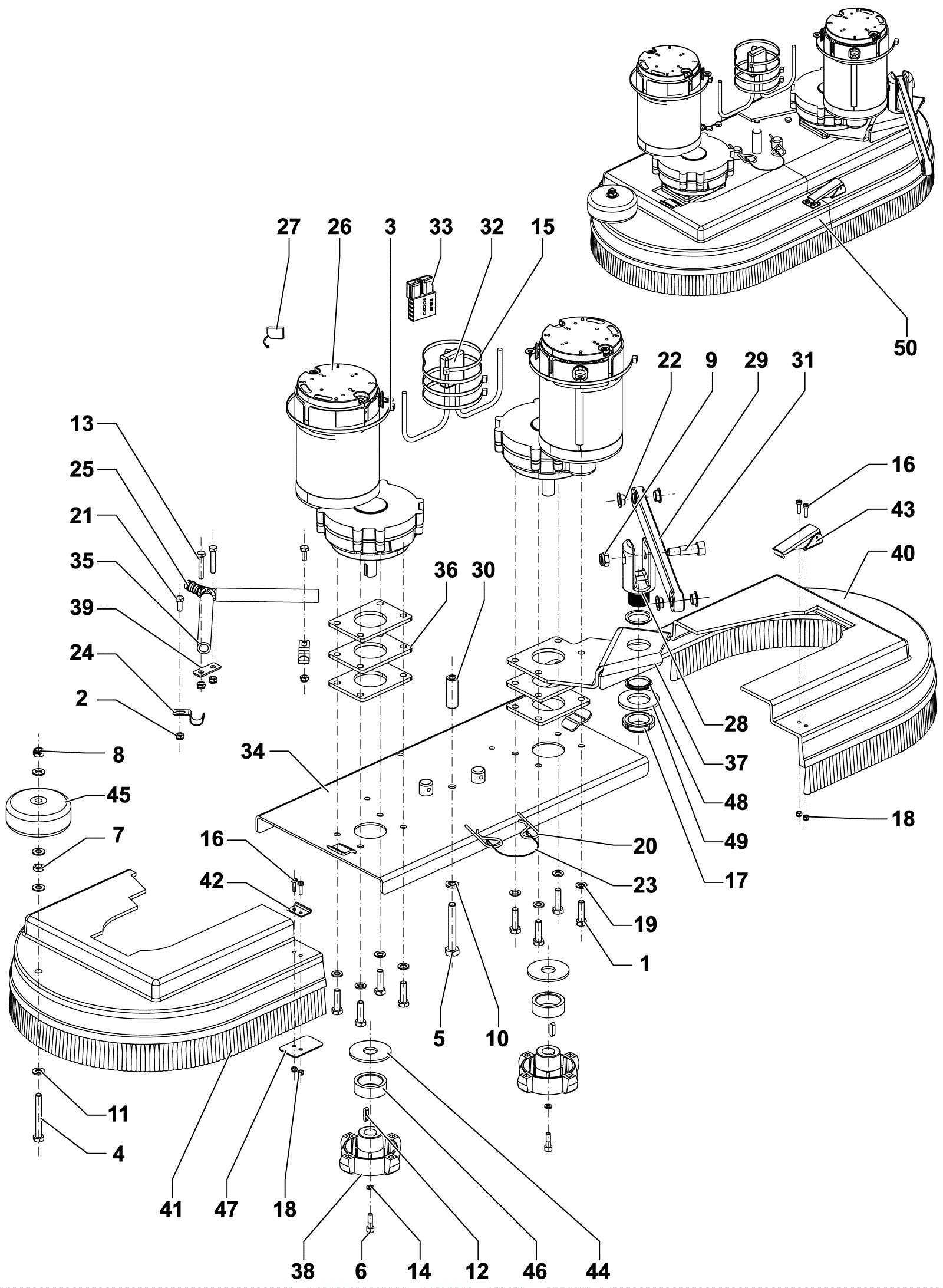

Focus II 26D Ride Brushes Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8356 Brush deck hardware kit $297.34 8 (screw) usually ships 13-18 days
2 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 (nut) ships same day
3 270-8356 Brush deck hardware kit $297.34 2 (clamp usually ships 13-18 days
4 270-8356 Brush deck hardware kit $297.34 1 (screw) usually ships 13-18 days
5 270-8356 Brush deck hardware kit $297.34 1 (screw) usually ships 13-18 days
6 270-8356 Brush deck hardware kit $297.34 2 (screw) usually ships 13-18 days
7 270-8356 Brush deck hardware kit $297.34 1 (nut) usually ships 13-18 days
8 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 (nut) ships same day
9 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 (nut) ships same day
10 270-8356 Brush deck hardware kit $297.34 1 (washer) usually ships 13-18 days
11 270-8356 Brush deck hardware kit $297.34 4 (washer) usually ships 13-18 days
12 270-8356 Brush deck hardware kit $297.34 2 (key) usually ships 13-18 days
13 270-8356 Brush deck hardware kit $297.34 2 (screw) usually ships 13-18 days
14 270-8356 Brush deck hardware kit $297.34 2 (washer) usually ships 13-18 days
15 270-8356 Brush deck hardware kit $297.34 4 (black clamp) usually ships 13-18 days
16 270-8356 Brush deck hardware kit $297.34 4 (screw) usually ships 13-18 days
17 270-8356 Brush deck hardware kit $297.34 1 (ring nut) usually ships 13-18 days
18 270-8356 Brush deck hardware kit $297.34 4 (self nut) usually ships 13-18 days
19 270-8356 Brush deck hardware kit $297.34 8 (washer) usually ships 13-18 days
20 270-8356 Brush deck hardware kit $297.34 2 (split pin) usually ships 13-18 days
21 270-8356 Brush deck hardware kit $297.34 2 (screw) usually ships 13-18 days
22 270-8356 Brush deck hardware kit $297.34 4 (flanged bush) usually ships 13-18 days
23 270-8356 Brush deck hardware kit $297.34 1 (cable) usually ships 13-18 days
24 270-8356 Brush deck hardware kit $297.34 2 (clamp) usually ships 13-18 days
25 270-8357 Y connection $20.91 1 (y connection) usually ships 13-18 days
26 572-3695 REDUCTION GEARMOTOR 400W 24V K $1,683.87 2 (24 volt motor) usually ships 13-18 days
27 272-0741 Carbon brush (pkg of 4) $505.34 2 (carbon brush holder kit) usually ships 13-18 days
28 270-8307 Turning bracket kit $109.53 1 (turning support) usually ships 1-5 days
29 270-8360 Side arm $22.58 1 (side arm) usually ships 1-5 days
30 270-8356 Brush deck hardware kit $297.34 1 (spacer) usually ships 13-18 days
31 270-8356 Brush deck hardware kit $297.34 1 (shoulder screw) usually ships 13-18 days
32 270-8361 Scrub deck harness $208.89 1 (brush deck harness) usually ships 1-5 days
33 991-9284 50amp charger plug SB50 with pins (red) $6.47 1 (red connector) usually ships 1-5 days
34 270-8362 Brush plate $377.34 1 (brush plate) usually ships 1-5 days
35 270-8363 Hose (OBSOLETE) $10.56 2 (hose) usually ships 1-5 days
36 270-8364 5mm spacer $20.91 5 (spacer) usually ships 1-5 days
37 270-8365 Side arm spacer $96.35 1 (side arm spacer) usually ships 1-5 days
38 270-8366 Brush hub $20.82 2 (brush hub) usually ships 1-5 days
39 270-8356 Brush deck hardware kit $297.34 1 (fixing plate) usually ships 13-18 days
40 270-0293 26 inch left brush housing $56.65 1 (housing brush) usually ships 13-18 days
41 270-0295 26 inch right brush housing $56.65 1 (housing brush) usually ships 13-18 days
42 270-8356 Brush deck hardware kit $297.34 1 (latch keeper) usually ships 13-18 days
43 170-7019 Brush deck latch $41.55 1 (brush latch) usually ships 12-15 days
44 270-8356 Brush deck hardware kit $297.34 2 (rubber washer) usually ships 13-18 days
45 170-0163 Guide wheel $40.16 1 (guide wheel) ships same day
46 270-8356 Brush deck hardware kit $297.34 2 (brush driver collar) usually ships 13-18 days
47 170-7026 Latch tab $13.32 1 (brush latch tab) usually ships 13-18 days
48 270-8356 Brush deck hardware kit $297.34 2 (flanged bush) usually ships 13-18 days
49 270-8356 Brush deck hardware kit $297.34 1 (washer) usually ships 13-18 days
50 270-8367 Brush deck kit $4,248.90 1 (deck system brushes) usually ships 1-5 days
N/S 270-8356 Brush deck hardware kit $297.34 1 (deck brushes kit, includes 1-24, 30, 31, 39, 42, 44, 46, 48, 49) usually ships 13-18 days
