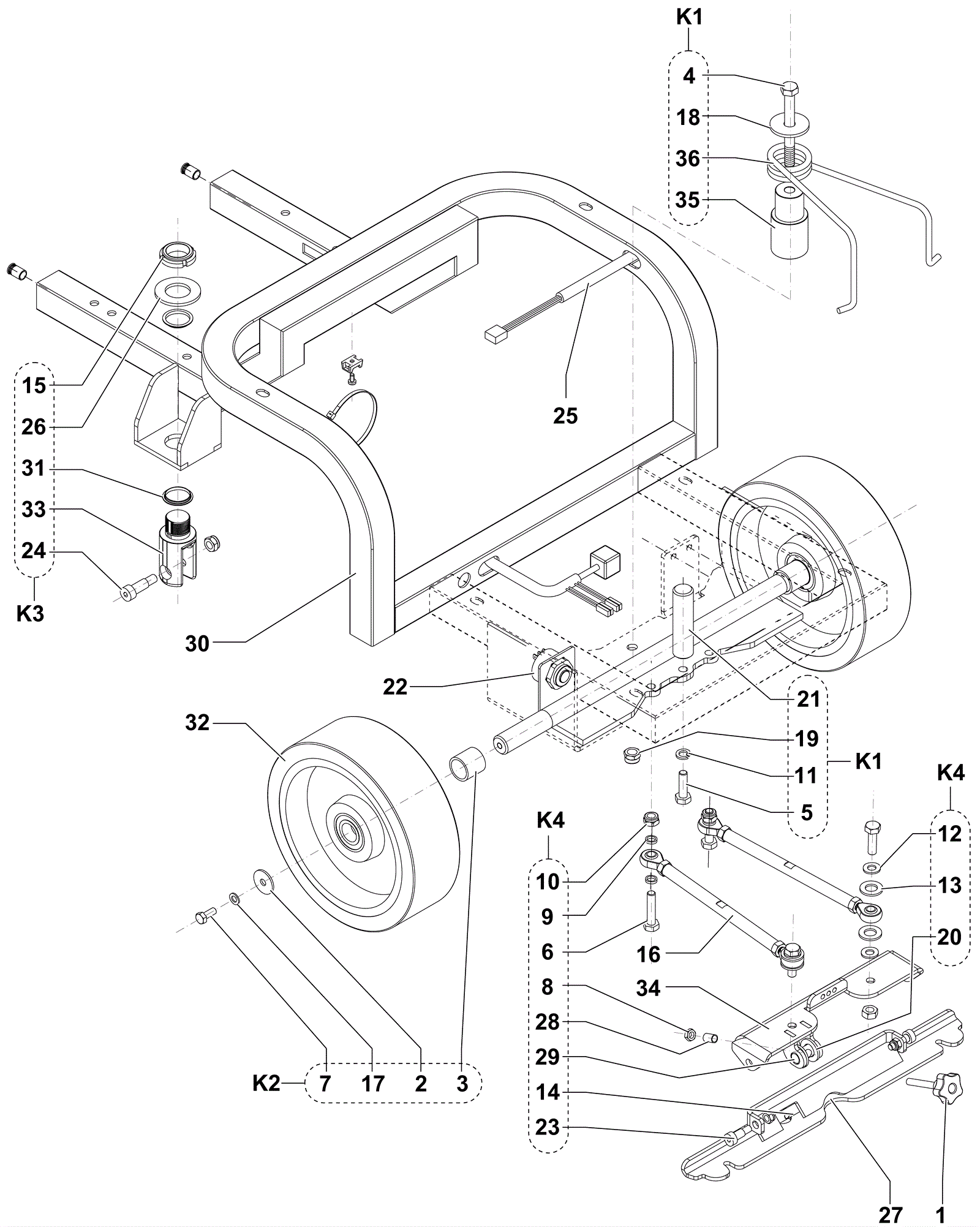

Focus II 26D Ride Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8303 Hand wheel $11.57 1 (hand wheel) usually ships 17-28 days
2 270-8304 Wheels fixing kit $32.69 2 (washer) usually ships 17-28 days
3 270-8304 Wheels fixing kit $32.69 2 (spacer) usually ships 17-28 days
4 270-8305 Squeegee centering kit $118.65 1 (screw) usually ships 17-28 days
5 270-8305 Squeegee centering kit $118.65 3 (screw) usually ships 17-28 days
6 270-8306 Rod eye hardware kit $90.43 2 (screw) ships same day
7 270-8304 Wheels fixing kit $32.69 2 (screw) usually ships 17-28 days
8 270-8306 Rod eye hardware kit $90.43 1 (nut) ships same day
9 270-8306 Rod eye hardware kit $90.43 4 (spacer) ships same day
10 270-8306 Rod eye hardware kit $90.43 2 (nut) ships same day
11 270-8305 Squeegee centering kit $118.65 1 (washer) usually ships 17-28 days
12 270-8306 Rod eye hardware kit $90.43 4 (washer) ships same day
13 270-8306 Rod eye hardware kit $90.43 4 (washer) ships same day
14 270-8306 Rod eye hardware kit $90.43 1 (adjusting squeegee spacer) ships same day
15 270-8307 Turning bracket kit $104.61 1 (ring nut) usually ships 1-5 days
16 270-8308 Eye rod $59.31 2 (eye rod) usually ships 17-28 days
17 270-8304 Wheels fixing kit $32.69 2 (washer) usually ships 17-28 days
18 270-8305 Squeegee centering kit $118.65 1 (washer) usually ships 17-28 days
19 270-8305 Squeegee centering kit $118.65 1 (nut) usually ships 17-28 days
20 270-8306 Rod eye hardware kit $90.43 2 (washer) ships same day
21 270-8305 Squeegee centering kit $118.65 1 (squeegee spring pin) usually ships 17-28 days
22 170-9221 Buzzer $78.58 1 (buzzer) usually ships 1-5 days
23 270-8306 Rod eye hardware kit $90.43 2 (shoulder screw) ships same day
24 270-8307 Turning bracket kit $104.61 1 (shoulder screw) usually ships 1-5 days
25 270-8309 Rear machine harness $69.01 1 (rear machine harness) usually ships 17-28 days
26 270-8307 Turning bracket kit $104.61 1 (washer) usually ships 1-5 days
27 270-8310 Squeegee down support $169.11 1 (squeegee down support) usually ships 17-28 days
28 270-8306 Rod eye hardware kit $90.43 1 (spacer) ships same day
29 270-8306 Rod eye hardware kit $90.43 1 (spacer) ships same day
30 270-8311 Chassis $1,240.50 1 (chassis) usually ships 1-5 days
31 270-8307 Turning bracket kit $104.61 2 (flanged bush) usually ships 1-5 days
32 270-8312 Rear wheel $238.01 2 (rear wheel) usually ships 17-28 days
33 270-8307 Turning bracket kit $104.61 1 (turning bracket) usually ships 1-5 days
34 270-8313 Upper squeegee support $134.98 1 (upper squeegee support) usually ships 17-28 days
35 270-8305 Squeegee centering kit $118.65 1 (squeegee support pin) usually ships 17-28 days
36 270-8305 Squeegee centering kit $118.65 1 (squeegee spring) usually ships 17-28 days
K1 270-8305 Squeegee centering kit $118.65 1 (squeegee centering kit) usually ships 17-28 days
K2 270-8304 Wheels fixing kit $32.69 1 (wheels fixing kit) usually ships 17-28 days
K3 270-8307 Turning bracket kit $104.61 1 (turning bracket kit) usually ships 1-5 days
K4 270-8306 Rod eye hardware kit $90.43 1 (rod eye kit) ships same day
