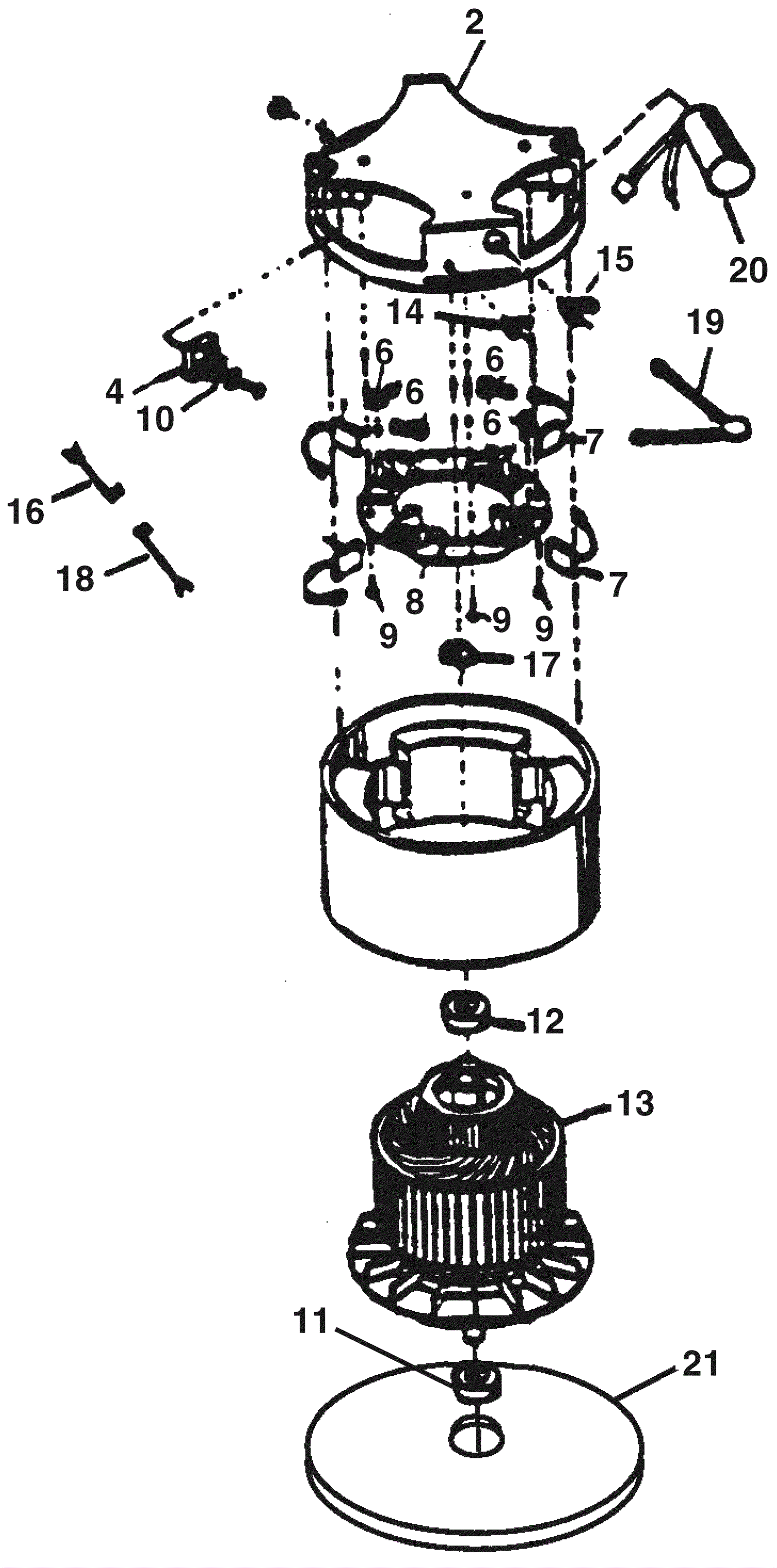

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
N/A
|
Not available |
1 |
(Commutator bracket) |
|
4 |
163-0063
|
240V rectifier |
1 |
|
|
6 |
372-1685
|
Springs |
4 |
|
|
7 |
N/A
|
Not available |
4 |
(Carbon brush assembly) |
|
8 |
N/A
|
Not available |
1 |
(Carbon brush assembly) |
|
9 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
8 |
|
|
10 |
999-0412
|
Washer #8 SAE flat |
1 |
|
|
11 |
170-0338
|
Ball bearing |
1 |
|
|
12 |
170-0321
|
Front end bearing |
1 |
|
|
13 |
170-1507
|
Armature assembly (OBSOLETE) |
1 |
(includes 12) |
|
14 |
N/A
|
Not available |
1 |
(Strain relief) |
|
15 |
N/A
|
Not available |
1 |
(Bushing) |
|
16 |
170-1508
|
Lead (red) |
1 |
|
|
17 |
170-0379
|
Wave washer |
1 |
|
|
18 |
170-1509
|
Lead (yellow) |
1 |
|
|
19 |
170-1510
|
Varistor |
1 |
|
|
20 |
172-6826
|
Speed control |
1 |
|
|
21 |
270-0701
|
Mounting plate |
1 |
|
|
N/S |
270-0705
|
Screw 10-32 x 1 |
6 |
|
|
N/S |
170-7827
|
Toggle switch |
1 |
|
|
