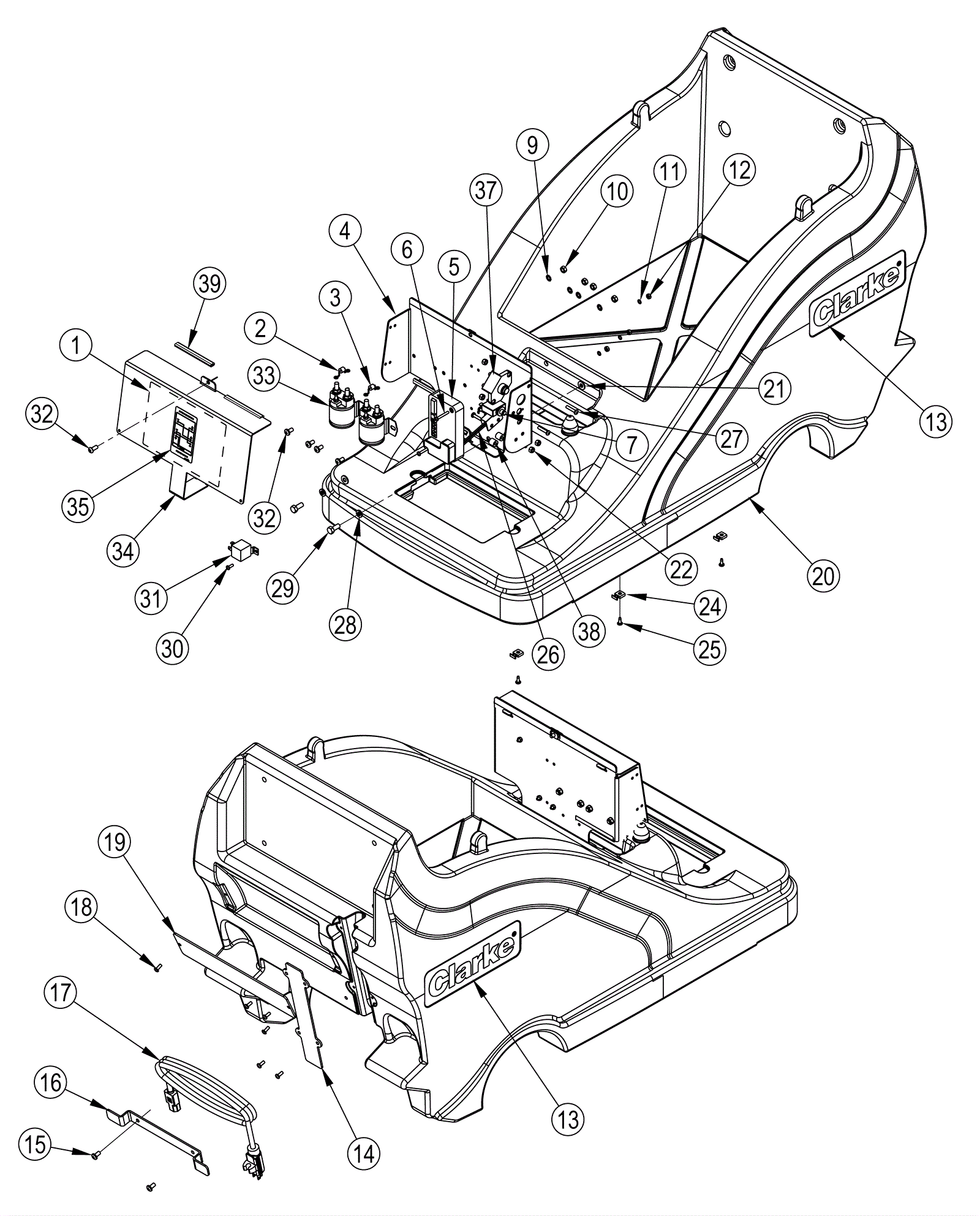

ULTRA SPEED 20T Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-0621 Connection diagram decal $19.45 1 usually ships 1-5 days
2 170-0062 Diode $16.50 1 usually ships 16-41 days
3 270-0622 Avalanche diode assembly $86.65 1 usually ships 1-5 days
4 272-7425 Electrical plate weldment $68.62 1 usually ships 16-41 days
5 270-0623 36V traverse I-Drive controller $671.43 1 usually ships 16-41 days
6 272-8590 Screw 8-32 x 1 1/4 pan head $10.56 2 usually ships 1-5 days
7 170-9060 30amp circuit breaker $30.28 1 usually ships 1-5 days
9 999-0017 Washer 1/4 external star lock $0.99 4 ships same day
10 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
11 999-1083 Washer #8 internal star lock stainless steel $0.99 4 ships same day
12 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 4 ships same day
13 270-0196 Clarke decal $28.46 2 usually ships 1-5 days
14 272-8491 Harness cover $36.07 1 usually ships 16-41 days
15 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
16 170-7386 Cord wrapping bracket $12.83 1 usually ships 1-5 days
17 170-7385 Onboard charger cord $28.74 1 usually ships 16-41 days
18 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 6 ships same day
19 272-8490 Retention strap (for dust bags) $21.00 1 usually ships 1-5 days
20 270-0620 Body assembly $1,163.09 1 usually ships 1-5 days
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
22 999-0460 Nut 10-32 hex $0.99 4 ships same day
24 170-7388 1/4 tab $11.99 3 usually ships 1-5 days
25 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 3 ships same day
26 272-7443 Tilt switch $73.68 1 usually ships 16-41 days
27 170-1463 Screw 10-32 x 1 $11.99 4 usually ships 1-5 days
28 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
29 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
30 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
31 270-0624 Traverse power relay $51.28 1 usually ships 1-5 days
32 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated $0.99 5 ships same day
33 172-2805 36V contactor $97.47 2 ships same day
34 272-8482 Front electric plate cover $44.79 1 usually ships 16-41 days
35 272-8484 Battery connection decal $16.50 1 usually ships 1-5 days
37 181-1355 70amp circuit breaker $313.32 1 usually ships 16-41 days
38 272-8936 Nylon spacer (OBSOLETE) $7.92 2 usually ships 1-5 days
39 272-7426 4 inch trim lock $9.02 3 usually ships 1-5 days
N/S 270-0625 20 inch traverse power harness $115.52 1 usually ships 1-5 days
N/S 270-0626 20 inch traverse logic harness $156.64 1 usually ships 1-5 days
