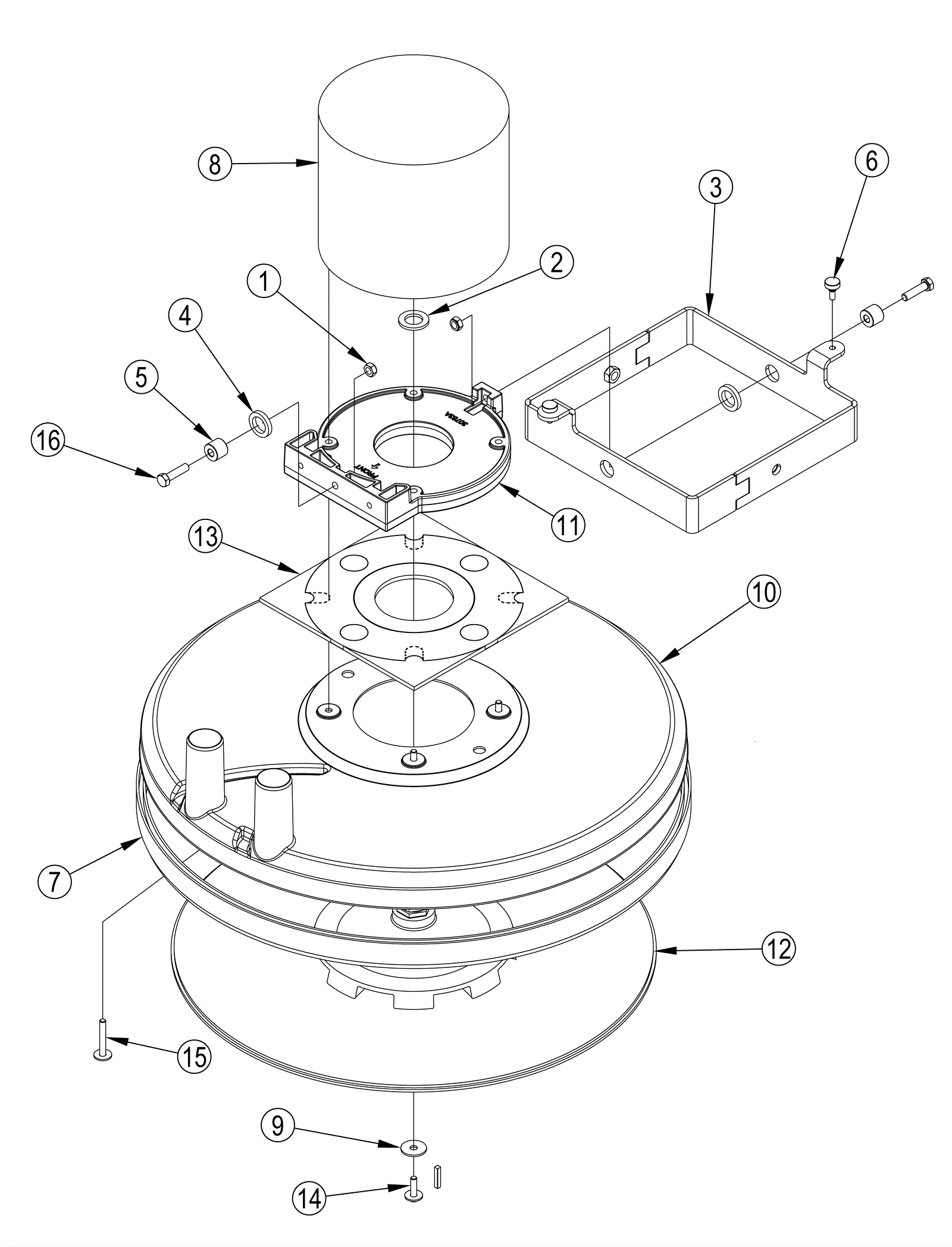

Head Assembly

#PartDescription ReqNotesAvailability
1 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
2 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat 1
3 272-7338 Motor mount weldment 1
4 272-7339 Rubber washer 2
5 272-7340 Spacer 2
6 272-7428 Bumper button 2
7 172-3072 20 inch skirt assembly 1
8 272-8458 36V 2.5HP brush motor 1
9 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 1
10 272-8225 20 inch dust shroud 1
11 272-8496 Motor mount 1
12 272-8211 20 inch pad driver 1
13 272-8224 Gasket 1
14 272-8200 Button head screw 1
15 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 4
16 170-3357 Screw 5/16-18x1 1/4 hex head 2
N/S 172-2818 Carbon brush (pkg of 4) 1
N/S 991-2203 Big mouth pad holder male thread portion 1
