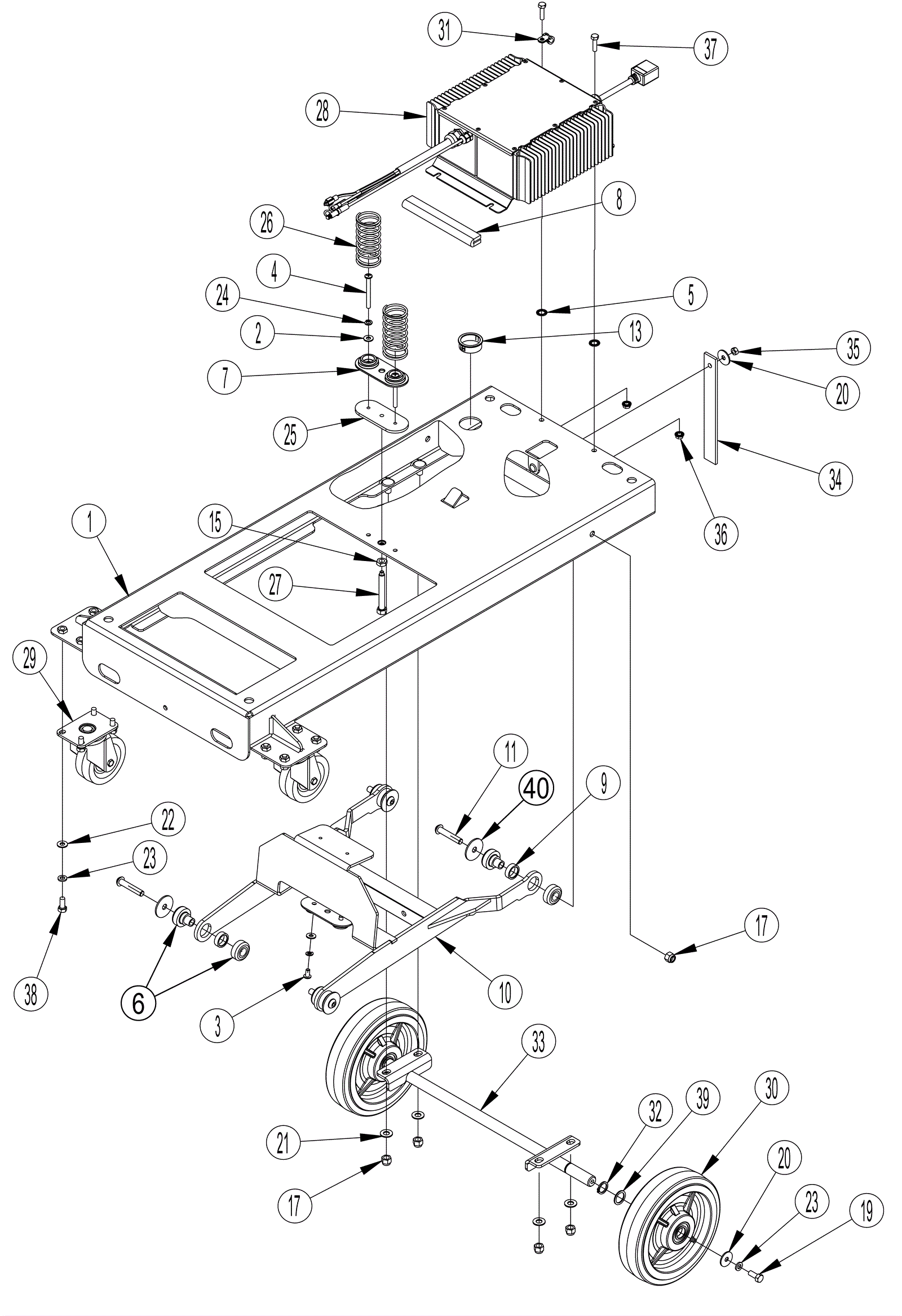

ULTRA SPEED 20T Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (Chassis weldment) usually ships 3-26 days
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
3 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 2 ships same day
4 170-3815 Screw $13.40 2 usually ships 1-5 days
5 172-0814 Washer 10M serrated external stainless steel $10.56 2 usually ships 1-5 days
6 272-7341 Vibration damping mount $23.95 4 usually ships 16-41 days
7 272-7421 Seat soft spring $9.02 2 usually ships 16-41 days
8 272-7422 Charger gasket $9.02 1 usually ships 1-5 days
9 272-7342 Steel spacer $9.02 4 usually ships 16-41 days
10 272-7418 Head lift weldment $201.47 1 ships same day
11 999-1462 Screw 3/8-16 x 2 button socket head stainless steel $5.50 4 ships same day
13 272-8466 Insulating bushing $9.59 1 ships same day
15 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
17 999-0170 Nut 3/8-16 hex plain finish $0.99 6 ships same day
19 999-1186 Screw 5/16-24 x 3/4 hex head $11.99 2 ships same day
20 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 3 ships same day
21 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
22 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
23 999-0028 Washer 5/16 split lock plain finish $0.99 10 ships same day
24 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
25 172-0816 Spring base plate $7.17 1 ships same day
26 272-9953 Compression spring $10.56 2 usually ships 16-41 days
27 172-0818 Pressure adjustment screw $7.05 1 usually ships 16-41 days
28 272-2224 36V onboard battery charger $1,149.42 1 ships same day
29 272-8474 3 1/2 inch swivel caster $40.45 2 ships same day
30 272-8472 8 inch wheel $85.24 2 ships same day
31 272-8471 P clamp $11.99 1 usually ships 1-5 days
32 170-1324 Snap ring $9.58 2 usually ships 4-15 days
33 272-8473 Non-traverse axle weldment $192.02 1 usually ships 1-5 days
34 170-7146 Static strap $13.40 1 usually ships 16-41 days
35 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
36 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
37 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 2 ships same day
38 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 8 ships same day
39 170-1754 Washer M1 flat nylon $11.99 2 usually ships 16-41 days
40 272-7343 Snubbing washer $9.02 4 usually ships 1-5 days
